Traildonkey 2.0 is Rodeo Labs’ premiere adventure bike platform.

We didn’t look to the left or the right for inspiration when developing Traildonkey, we looked to the mountains of Colorado, the Slickrock Trail and White Rim in Moab, the cobbles of Belgium and France, and the Flint Hills of Kansas. Our goal has been to prove the bike’s capabilities in real life, not just write them down as words and numbers on a page. We took two years to create and finish this bike because we had to not only design and manufacture a bike, we also had to learn how to design and manufacture a bike. We’ve grown a lot in two and a half years and we are very proud of the capability and versatility of this frameset.

Features FAQs

Traildonkey is produced by hand in low volumes. Framesets are available for those seeking to complete their own builds and we offer completely customizable full builds for those seeking assistance in tailoring the bike to their styles and goals.

Every full Traildonkey build is a custom build experience. We dial in key measurements such as stem length, bar width, crank length, and saddle size for optimal fit, and we allow buyers to bring their own favorite parts to the build if they would like to use items that they already have.

To initiate a full build please shoot us an email so that we can tailor a specification exactly to you.

Start a build



$2,560.00

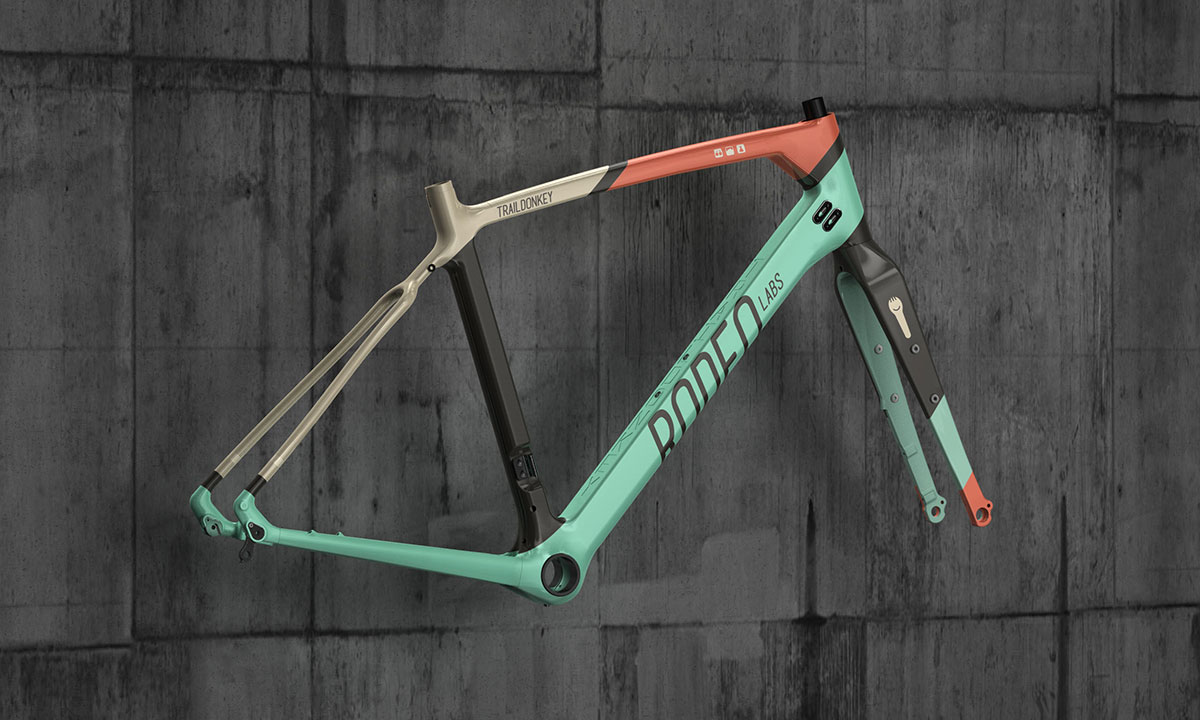

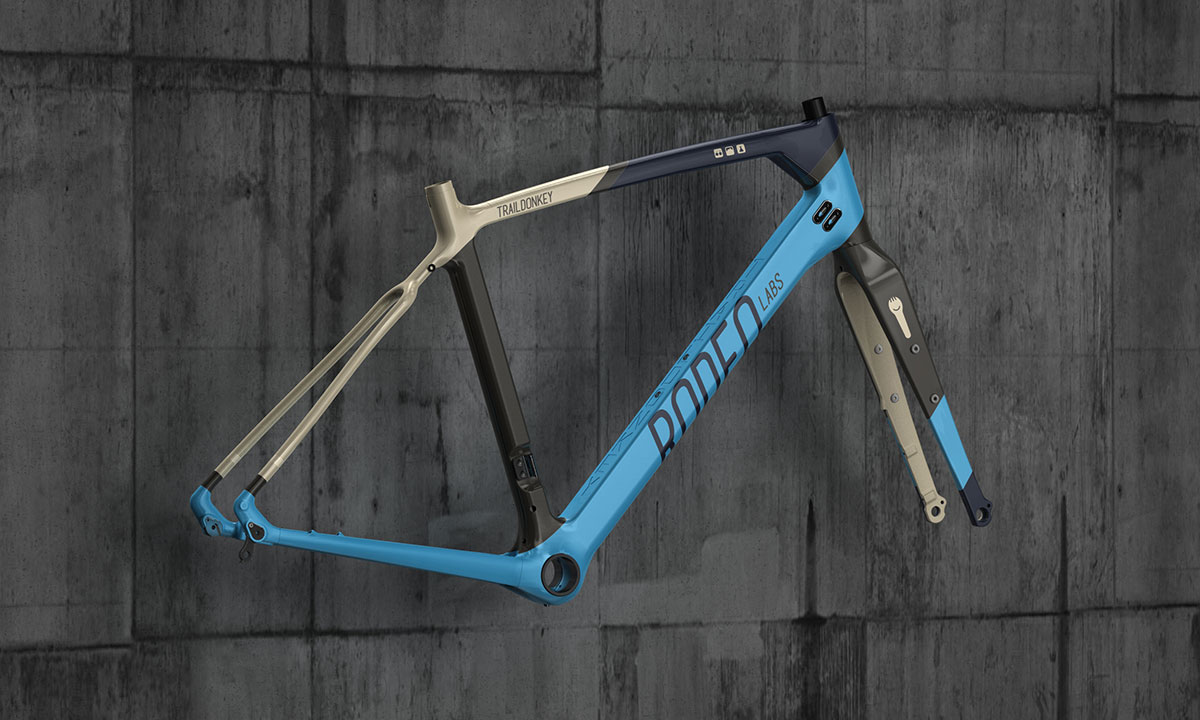

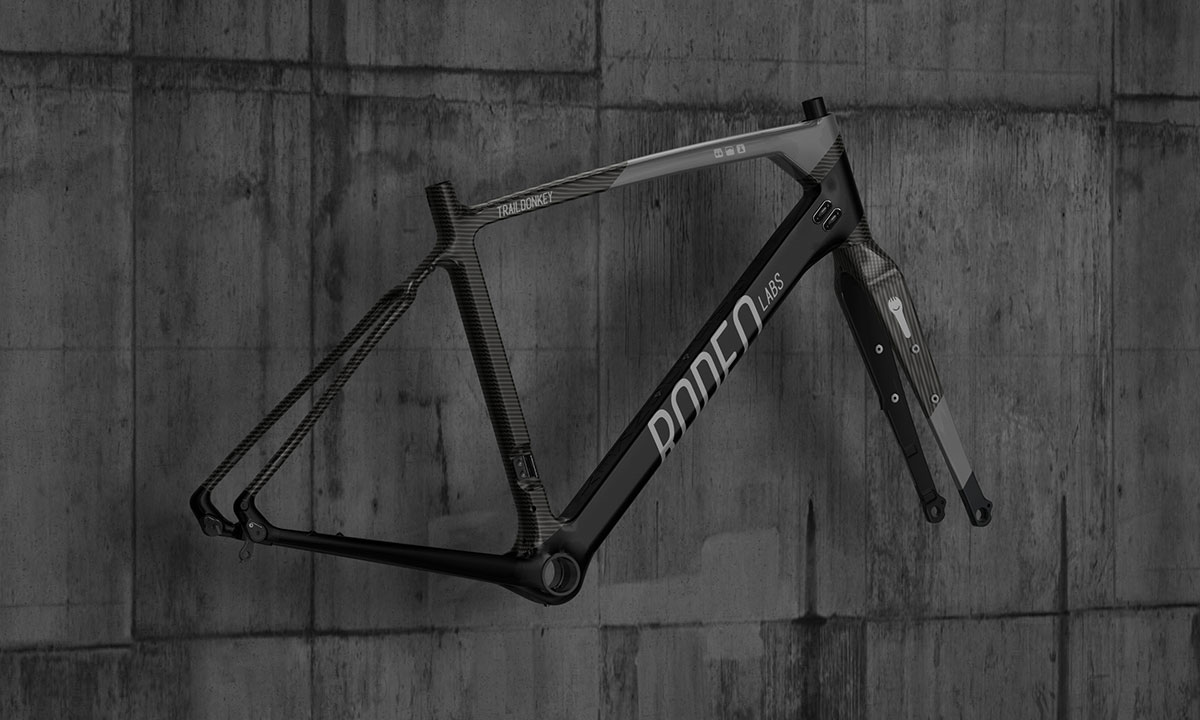

Traildonkey 2.0 Frameset

Fresh inventory arrived 6-25-17. If you don’t see your preferred color and size in stock now it will be soon. A new shipment will arrive within two weeks.

If you would like to adopt a Traildonkey through your local bike shop please visit your local shop and have them send us an email.

Clear

Description

Traildonkey 2.0 frameset includes:

  • Traildonkey 2.0 frame
  • Seatpost collar
  • FSA headset and expansion plug.
  • Rodeo Spork 1.1 with 15mm through axle
  • 135 rear dropouts and QR
  • 142 rear dropouts and 12mm through axle
  • Routing endcaps for 1x, 2x, mechanical, hydraulic, or electronic shifting
  • Endcaps for dropper post or dropperless build configurations.

Geometry:

The Traildonkey fits true to size. That means if you order a 56 the frame will fit like a 56 typically does. The frame does have a generous slope to its top tube which lowers stand over height and makes the bike much more fun on trails. It also makes the frame adapted for dropper posts when built as a trail bike. The top tube slope can make the frame appear smaller, but the effective top tube height, reach, and other key measurements remain true to what you’d expect for each size.

Size 52 54 56 58
Seat Tube (C-T) 460 480 500 520
Seat Tube (C-T)
w/Drop post
520 540 560 580
Top Tube (effective) 535 545 560 580
Chain Stay (actual) 435 435 435 435
Seat Tube Angle 73 73 72.5 72.5
Bottom Bracket Drop 65 65 65 65
Head Tube Length 120 145 160 175
Head Tube Angle 70 70 71 72
Reach 362.78 370.98 383.88 392.07
Stack 539.42 557.91 576.06 594
Fork Length 398 398 398 398
Fork Rake 45 45 45 45
Wheelbase 994.93 1002.3 1022.37 1266.9

Warranty:

The Traildonkey frame and fork is warranted against defects in design and construction for the life of the bike. If we designed or manufactured something incorrectly then you aren’t responsible if the bike somehow fails. The Traildonkey is not warranted against abuse, crashes, or when used outside of the reasonable intent for a bike of this type. If you do crash and damage your Traildonkey we will offer you a deeply discounted crash replacement. We don’t want to profit off of your misfortune. Having submitted the bike to ISO testing and further tested it for two years and many thousands of miles over almost every terrain imaginable, we are very confident that the bike we’ve created is durable and dependable. We expect Traildonkey to deliver years after years of satisfying use to any owner who properly cares for and maintains it.[/vc_column_text][/vc_column][/vc_row]

Technical Specifications Spork 1.1:

  • Full carbon main construction
  • Carbon steer tube
  • Aluminum 15mm through axle hardware
  • Internal brake routing inside fork blade
  • 140/160mm Flat mount disc brake compatible
  • 160/180mm Post mount disc brake compatible with simple post mount adapter
  • 15mm threaded aluminum ratcheting through axle supplied with each fork.
  • Heavy duty fender mounts and rack mounts on each fork leg at dropout, dual mid fork, and fork crown.

Additional information

Weight 9.25 lbs
Dimensions 41 x 23 x 7 in



Pricing: Complete Builds

The Traildonkey 2.0 is an extremely versatile frameset and we are very excited to see people get creative with their builds. Some people may tailor the bike to trail use, some to gravel, and some to road riding. With simple gearing and tire changes the bike can be adapted to completely different riding styles.

On complete builds we will offer the ability for buyers to start with our standard build options but then dig into their specifications as they tailor their steed to their style. Have you always dreamed of a full carbon cockpit? We can help you add that to your build. Do you prefer a more road oriented gearing like 11-28 or do you want a wide range 11-42 build? It’s your call. 1x? Yes we are happy to do that. Di2? Yes. Custom bar/stem/crank measurements? Sure! If customers want to change from carbon wheels to aluminum or vise versa we are also happy to accommodate.

If you do not see your preferred build listed feel free to get in touch. This is YOUR bike and we are here to tailor it to you.

Shimano 105 22 Mechanical complete bike build

Price: $3300

Frame Traildonkey 2.0
Fork Rodeo Spork
Paint 2.0 Factory Colors
Bar / Size Ritchey Comp Curve BB Black
Stem / Length Ritchey Comp 4 Axis Black
Headset FSA
Stem Plug FSA
Seat Clamp 6066 aluminum, Black
Seatpost Ritchey Comp Link BB Black 400mm/31.6mm
Saddle WTB Volt 142
Bottom Bracket Praxis M30
Crankset Praxis Zayante 34/50
Chain CN-HG600-11
Cassette Shimano ICS6800 11×32
Front Derr. Shimano, FD-5800-L, 105, BRAZED-ON TYPE, FOR 11-SP
Rear Derr. Shimano, RD-5800-L, 105, GS 11-SPEED DIRECT ATTACH
Shift / Levers SHIFT/BRAKE LEVER SET, ST-5800-L, 105 BLACK, 11X2-SPE
Brake Caliper Front Shimano BR303
Brake Caliper Rear Shimano BR303
Bar Tape WCS Pave Tape / Black
Rim Front WTB Frequency CX i19 700c Team TCS Rim, 28H Black PV / Tubeless
Rim Rear WTB Frequency CX i19 700c Team TCS Rim, 28H Black PV / Tubeless
Front Hub Rodeo 2.0 / 28
Rear Hub Rodeo 2.0 / 28
Spokes Sapim Race
Nipples Sapim Nipples
Tires WTB Nano 40 TCS
Rotors Shimano 160mm
Brake adapters Flat Mount to Post Mount 160
Front QR / Axle Rodeo Through Axle / 15mm
Rear QR / Axle Rodeo Through Axle / 12mm

Shimano Ultegra Hydro 22 complete bike build

Price: $4660

Frame Traildonkey 2.0
Fork Rodeo Spork
Paint 2.0 colors: Red / Blue / Raw 3k carbon weave
Bar Ritchey WCS Logic II
Stem Ritchey WCS Trail
Headset FSA
Stem Plug FSA
Seat Clamp 6066 aluminum
Seatpost Ritchey WCS LINK Blatte 400mm/31.6mm
Saddle WTB Volt 142
Bottom Bracket Praxis M30
Crankset Praxis Zayante 34/50
Chain CN-HG700-11, FOR 11-SPEED (ROAD/MTB COMPATIBLE)
Cassette Ultegra ICS6800 11×32
Front Derr. Ultegra FD-6800-F – Braze On.
Rear Derr. Ultegra RD-6800 GS 11-speed
Front Shift / Levers Ultegra Shift Brake Lever set / Hydro
Shift housing / cables ROAD SHIFT CABLE SET POLYMER COATED BLACK
Brake Caliper Front Shimano 505 Flat Mount
Brake Caliper Rear Shimano 505 Flat Mount
Bar Tape Black
Rim Front Rodeo 2.0 Carbon / 28h / Tubeless
Rim Rear Rodeo 2.0 Carbon / 28h / Tubeless
Front Hub Rodeo 2.0 // 28h
Rear Hub Rodeo 2.0 // 28h
Spokes Sapim Race
Nipples Sapim Nipples
Build Magnetic Wheel Co
Tires WTB Nano 40 TCS
Tires WTB Nano 40 TCS
Rotors Shimano 160mm centerlock rotors
Front QR / Axle Rodeo Through Axle / 15mm
Rear QR / Axle Rodeo Through Axle / 12mm

SRAM RIVAL Hydro 22 complete bike build

Price: $3800

Frame Traildonkey 2.0
Fork Rodeo Spork
Paint 2.0 Factory Colors
Bar Ritchey Comp CURVE BB Black
Stem Ritchey Comp 4AXIS BB Black
Headset FSA
Stem Plug FSA
Seat Clamp 6066 Aluminum
Seatpost SEATPOST COMP Link BB Black 400mm/31.6mm
Saddle WTB Volt 142
Bottom Bracket Praxis M30
Crankset Praxis Zayante 34/50
Chain SRAM Rival PC 1130
Cassette SRAM Rival OG-1130 11×32
Front Derr. Rival 22 Braze On
Rear Derr. Rival 22 MD Cage
Front Shift / Levers Rival 22 HRD
Rear Shift / Levers Rival 22 HRD
Brake Calipers SRAM Rival Hydro
Bar Tape WCS Pave Tape / Black
Rim Front WTB Frequency CX i19 700c Team TCS Rim, 28H Black PV / Tubeless
Rim Rear WTB Frequency CX i19 700c Team TCS Rim, 28H Black PV / Tubeless
Front Hub Rodeo 2.0
Rear Hub Rodeo 2.0
Spokes Sapim Race
Nipples Sapim Nipples
Build Magnetic Wheel Co
Tires WTB Nano 40 TCS
Rotors 160MM SRAM Centerline Rotor
Brake adapters Flat Mount to Post Mount 160
Front QR / Axle Rodeo Through Axle / 15mm
Rear QR / Axle Rodeo Through Axle / 12mm

SRAM FORCE Hydro 22 complete bike build

Price: $5175

Frame Traildonkey 2.0
Fork Rodeo Spork
Paint 2.0 Factory Colors
Bar Ritchey WCS LOGIC II Blatte
Stem Ritchey WCS Trail
Headset FSA
Stem Plug FSA
Seat Clamp 6066 aluminum
Seatpost Ritchey WCS LINK Blatte 400mm/31.6mm
Saddle Ritchey COMP STREEM 145 Black
Bottom Bracket Praxis M30
Crankset Praxis Zayante 34/50
Chain SRAM PC1130
Cassette SRAM Force PG-1170 11-32
Front Derr. SRAM Force 22 Medium Cage
Rear Derr. SRAM Force 22 braze-on
Front Shift / Levers SRAM Force HRD Disc Front Shifter
Rear Shift / Levers SRAM Force HRD Disc Rear Shifter
Brake Caliper Front SRAM Force Flat Mount
Brake Caliper Rear SRAM Force Flat Mount
Bar Tape WCS Pave Tape / Black
Rim Front Rodeo 2.0 Carbon / 28h / Tubeless
Rim Rear Rodeo 2.0 Carbon / 28h / Tubeless
Front Hub Rodeo 2.0
Rear Hub Rodeo 2.0
Spokes Sapim Race
Nipples Sapim Nipples
Build Magnetic Wheel Co
Tires WTB Nano 40 TCS
Rotors 2x 160MM SRAM Centerline Rotor
Brake adapters 160mm Centerlock
Front QR / Axle Rodeo Through Axle / 15mm
Rear QR / Axle Rodeo Through Axle / 12mm

SRAM FORCE Hydro 1x complete bike build

Price: $5250

Frame Traildonkey 2.0
Fork Rodeo Spork
Paint 2.0 Factory Colors
Handlebar Richey WCS LOGIC II
Stem Ritchey WCS Trail
Headset FSA
Seat Clamp 6066 Aluminum
Seatpost Ritchey WCS LINK Blatte 400mm/31.6mm
Saddle WTB Volt 142
Bottom Bracket Praxis M30 BB
Crankset Praxis Zayante 42t / Wave chainring
Chain PC1130
Cassette SRAM Force 1170 11×36
Rear Derr. SRAM Force 1 Type 2.1
Front Shift / Levers SRAM Force 1 HRD Disc Brake Front
Rear Shift / Levers SRAM Force 22 HRD Disc Brake Rear
Brake Caliper Front Post Mount 160mm
Brake Caliper Rear Post Mount 160mm
Bar Tape WCS Pave Tape / Black
Rim Front Rodeo 2.0 Carbon / Tubeless / 28h
Rim Rear Rodeo 2.0 Carbon / Tubeless / 28h
Front Hub Rodeo 2.0
Rear Hub Rodeo 2.0
Spokes Sapim Race
Nipples Sapim Nipples
Build Magnetic Wheel Co
Tires WTB Nano 40 TCS
Rotors 160MM SRAM Centerline Rotor
Brake adapters Post Mount 160mm
Front QR / Axle Rodeo Through Axle / 15mm
Rear QR / Axle Rodeo Through Axle / 12mm



Custom Builds

Traildonkey is a very versatile frameset that can be built up for a number of different riding styles and terrain types. For people who want to really dig into their builds we offer full customization as an option.

Here are some examples of ways you can customize your steed:

  • Shimano Di2 builds
  • SRAM eTap builds
  • Campagnolo builds
  • Wolf Tooth Components drivetrain customizations.
  • Carbon cockpits from ENVE, Easton, Ritchey, and others.
  • Full custom paint
  • Bike builds with no wheels. Use your own.
  • Fully custom wheel builds.
  • Power meters, gadgets, and blinkey bits.

For the time being we will quote customizations at the time of request.

Technical Specifications FRAME:

  • Frame Material: 3k and unidirectional carbon fiber. Aluminum dropout hardware, cable routing guides, and bottom bracket shell. Aluminum lower headset bearing seat and carbon upper bearing seat.
  • Bottom Bracket: PF30
  • Rear Dropouts: Carbon with swappable aluminum hardware for both 142 x 12mm through axle or 135 Quick Release both included with each frame. 135mm QR threads directly into frame hardware instead of a separate end cap creating a more integrated connection with the frame.
  • Rack Mounts: Front and rear, full length ready.
  • Fender Mounts: Front and Rear
  • Cable Guides: Interchangeable mechanical or Di2. Can be capped to seal frame when not in use. Removable housing cover at lower bottom bracket shell for easy access to rear brake and derailleurs.
  • Dropper Post: Dropper post internal routing along top tube with exit point at upper seatpost. Can be capped with flush hardware when not in use.
  • Seatpost: 31.6mm
  • 1x Compatibility: Removable front derailleur mount for clean 1x installations.
  • Single Speed Compatibility: Planned with future dropout hardware
  • Belt Drive Compatibility: Not currently planned.
  • Bottle mounts: 3. Seat Tube, Down Tube, and beneath Down Tube.
  • Tire Clearance: 56mm front and 52mm rear rear at 700c. Traildonkey is optimized for 700c. Any tire between 23c and 45c will fit with room for the elements. Traildonkey will also accept 650b wheels and tires but tire clearance does not increase significantly on the frame at 650b. Traildonkey will easily fit WTB Horizon 47c slicks.
  • Weight: Final exact weights pending, but approx 1250 for the raw 54cm and 1450 for the raw 58cm. 52cm and 56cm weights will be in-kind. Weights vary depending on graphics and paint.



Technical Specifications Rodeo 2.0 carbon wheels:

All Force / Ultregra, and higher Traildonkey builds feature the Rodeo 2.0 carbon wheelset. We’ve spent three years and untold thousands of miles pounding these wheels to make sure that they stand up to the rigors of Donkey life. We’ve raced road, CX, gravel, and MTB on these wheels. We’ve ridden slickrock, gravel, cobbles, rock gardens, snow, stairs, drops, and pretty much anything else we can imagine on these wheels and they’ve been a fantastic combination of light weight and incredible strength.

Our 2.0 rims are a proprietary ground-up wheel design born from our own molds and tooling. The wheels feature a 30mm depth and a 23mm inner width which serves as a wide platform for modern adventure tires. They feature a tubeless compatible elevated bead lock design that virtually eliminates burps.

Every one of our wheels whether standard offering or custom are hand built in Portland, Oregon by Steve Pamlenyi of Magnetic Wheel Co. Steve has built every one of our wheels since 2014 and has over 20 years of hand building experience.

Our standard builds are 28 / 28 hole on Sapim Race spokes and Sapim nipples laced up to Bitex Centerlock / Rodeo 2.0 disc hubs in 15mm front through axle and 12mm rear through axle.

Riders who would prefer to customize hubs, spokes, nipples, and spoke count can order their Rodeo 2.0 wheels any way they want with applicable associated costs. Get in touch if you want to customize.

650b:

The Traildonkey frame and Rodeo Spork both play nicely with 650b wheels allowing for an expanding range of tire choices. If you would like to spec 650b wheels on your Traildonkey instead of 700c, just let us know and we can work up your specific build.
