4.0

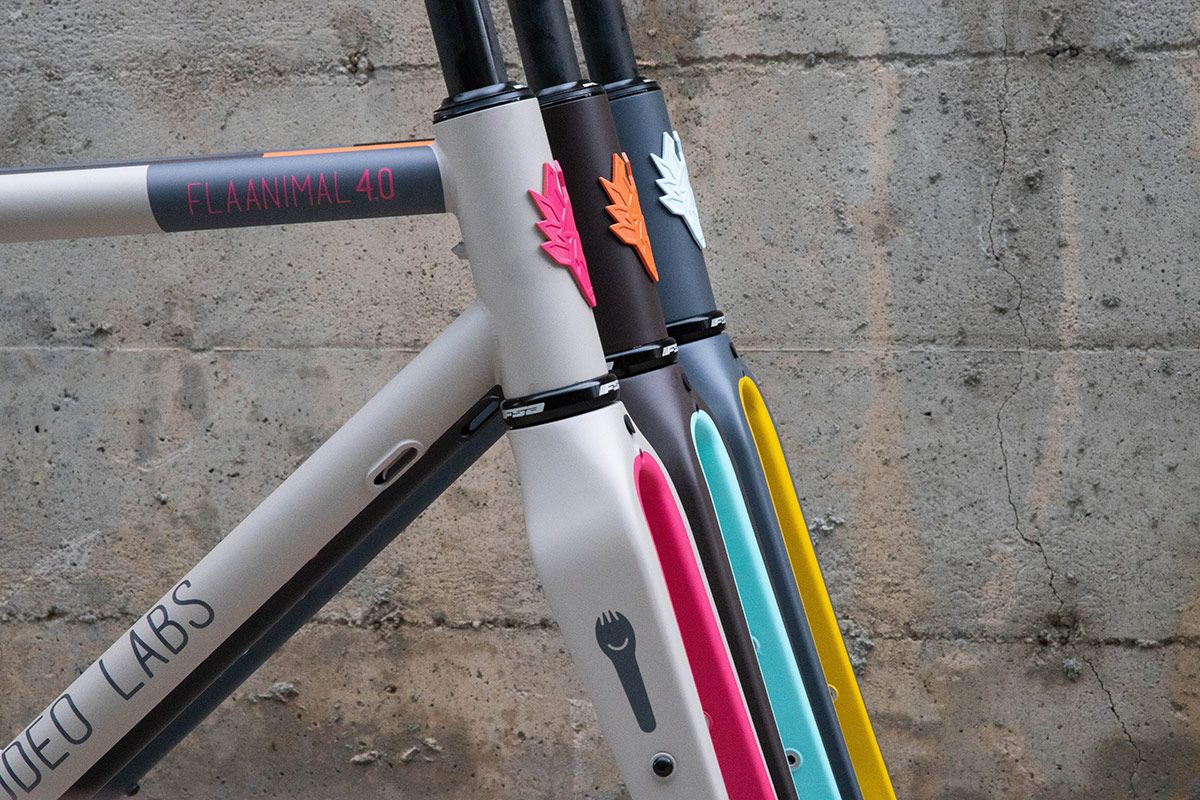

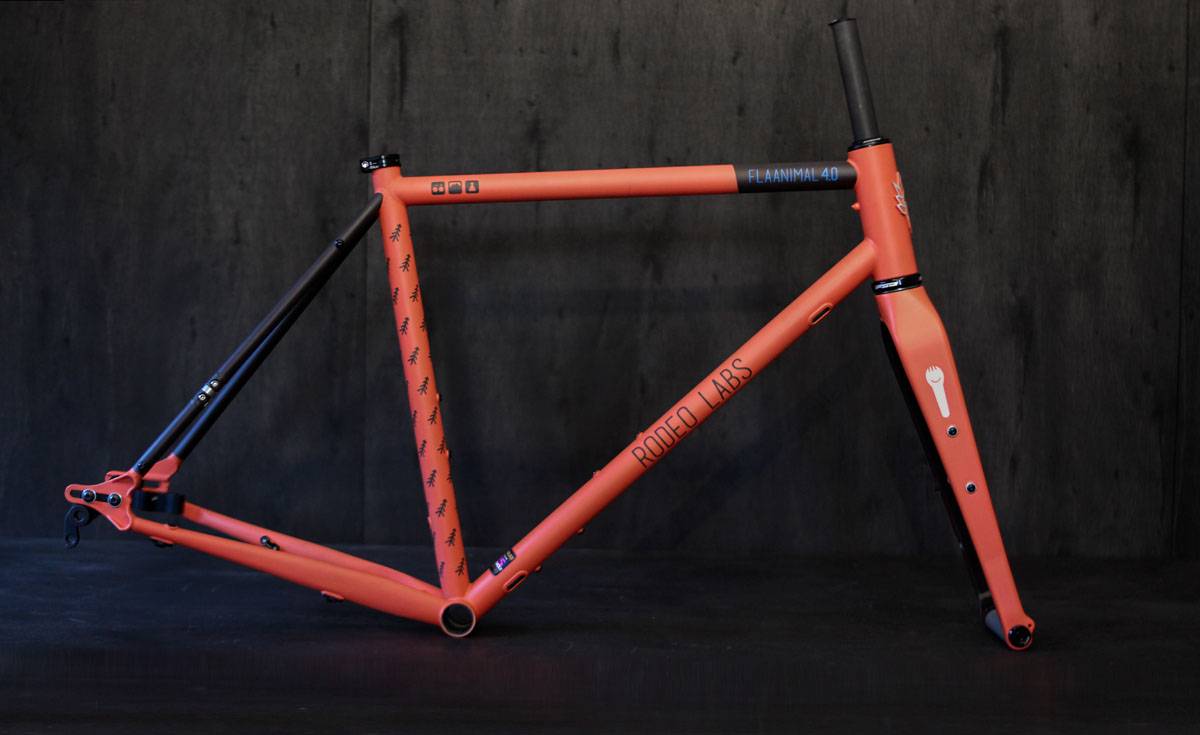

Rodeo Adventure Labs is proud to announce the fourth and finest iteration of its supremely versatile steel adventure frameset. The Flaanimal.

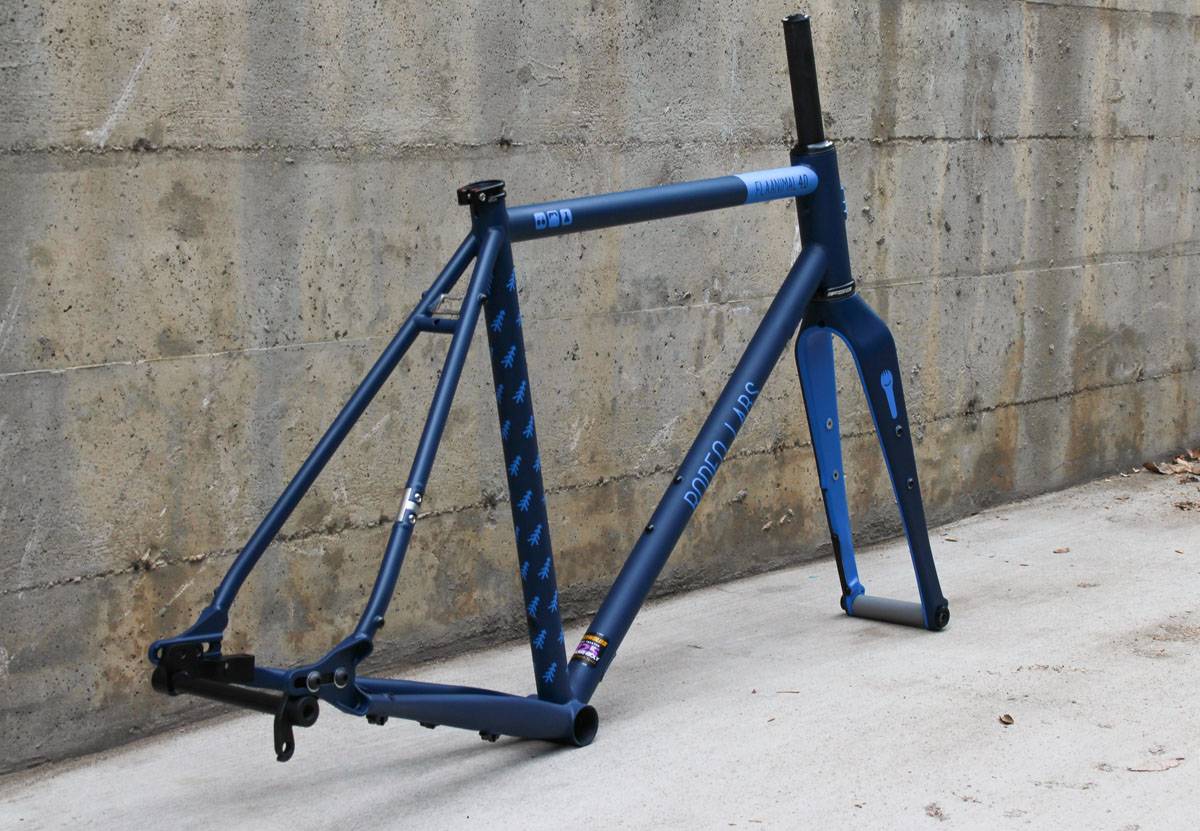

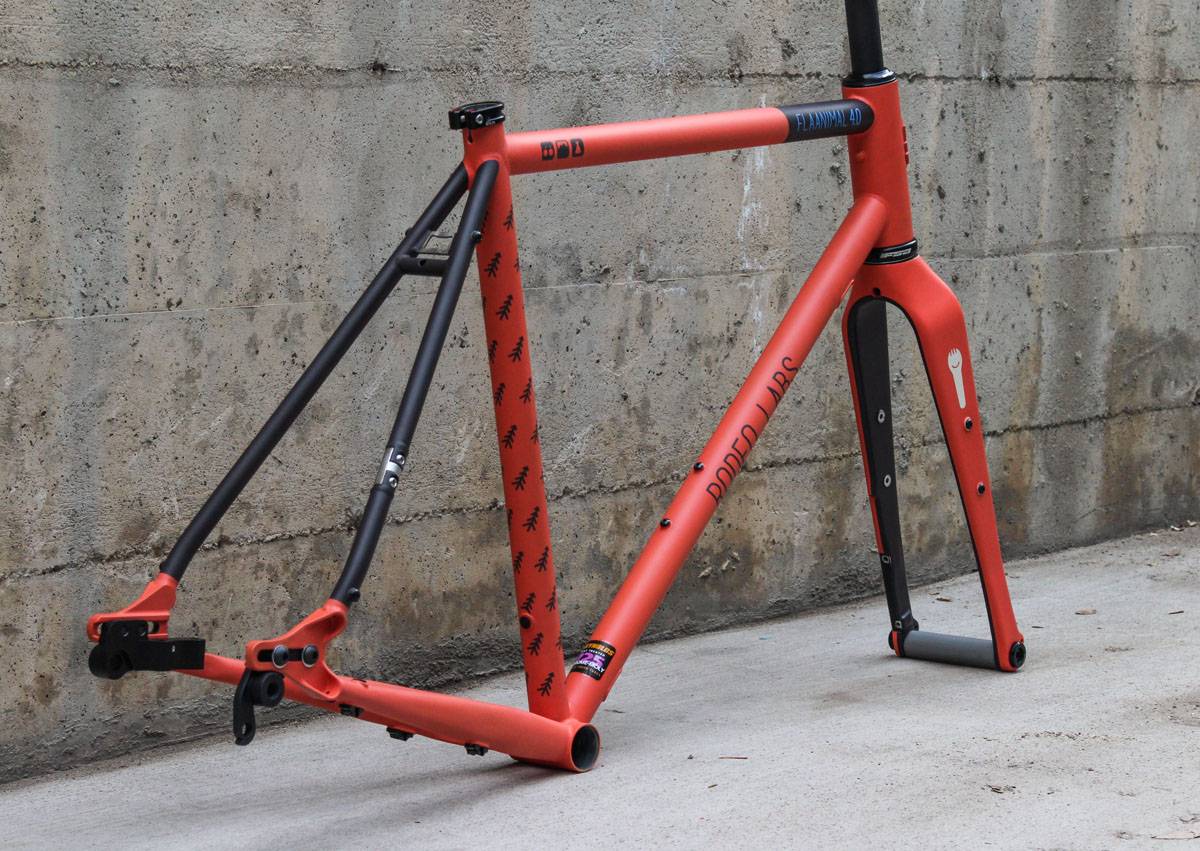

Flaanimal is a multi use steel adventure frameset designed and built around the themes of versatility and adaptability. Now in its 4th iteration, Flaanimal has been the product of non stop refinement and iteration since the day it was first designed. In its current 4.0 state we believe it to be one of the most feature rich and enjoyable steel framesets available today.

Flaanimal is meant to be built and ridden any way that you like. Each of its primary design details are intended to leave key decisions about function up to the owner. With large tire clearances, interchangeable dropouts, and completely configurable shifting and braking routing the frameset is not locked into rigid categories. As each rider’s personal style and tastes evolve Flaanimal is designed to evolve along with them.

Flaanimal 4.0 ordering

Flaanimal 4.0 has been a massive success. Thank you! Unfortunately that means we ran out of quite a few frame sizes / colors very quickly. We started a much larger 2nd production run in late February and frames are expected mid May. If your desired frame is no longer in stock you may back order it below towards the May frames or you can of course wait until frames show as back in stock when the frames arrive in Denver, CO.

If you would like to order a full Flaanimal build towards the May frames please send us an email at orders@rodeo-labs.com so we can help work up a build sheet and get your details dialed while we wait for frames.

$1,350.00

Flaanimal 4.0 steel adaptable adventure frameset.



Clear

Description

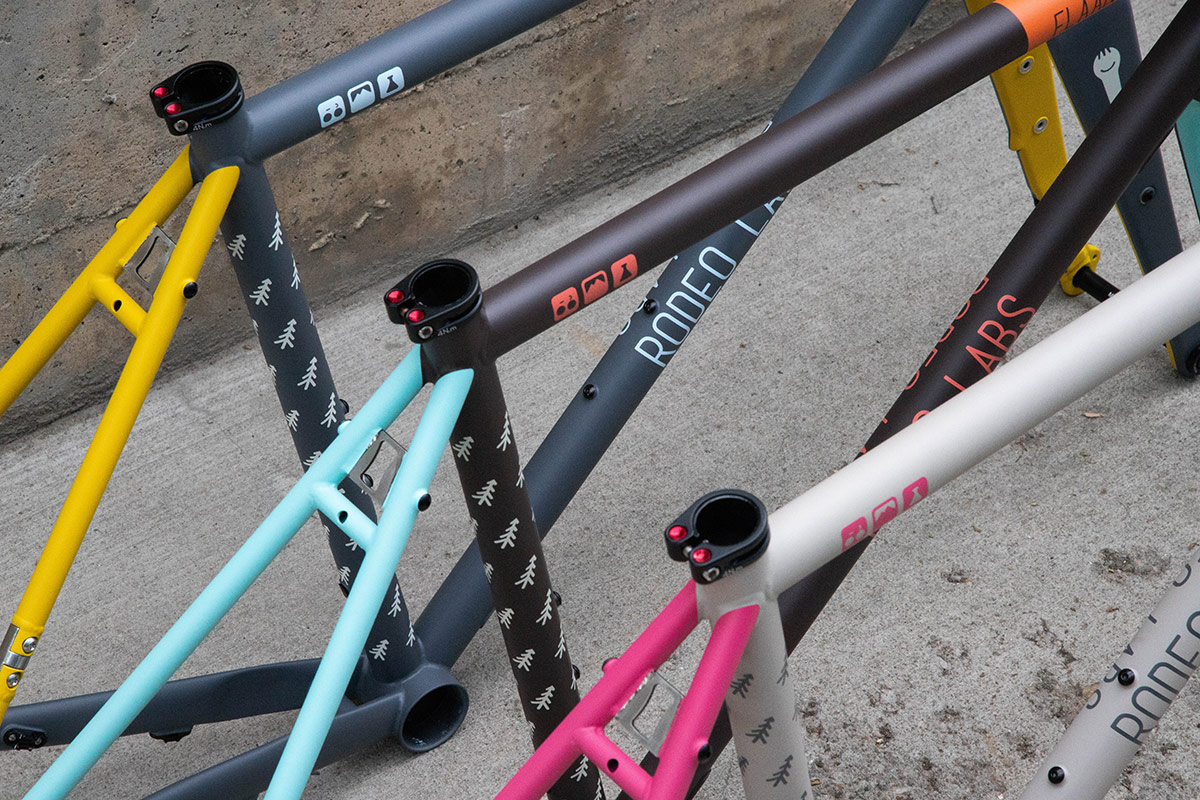

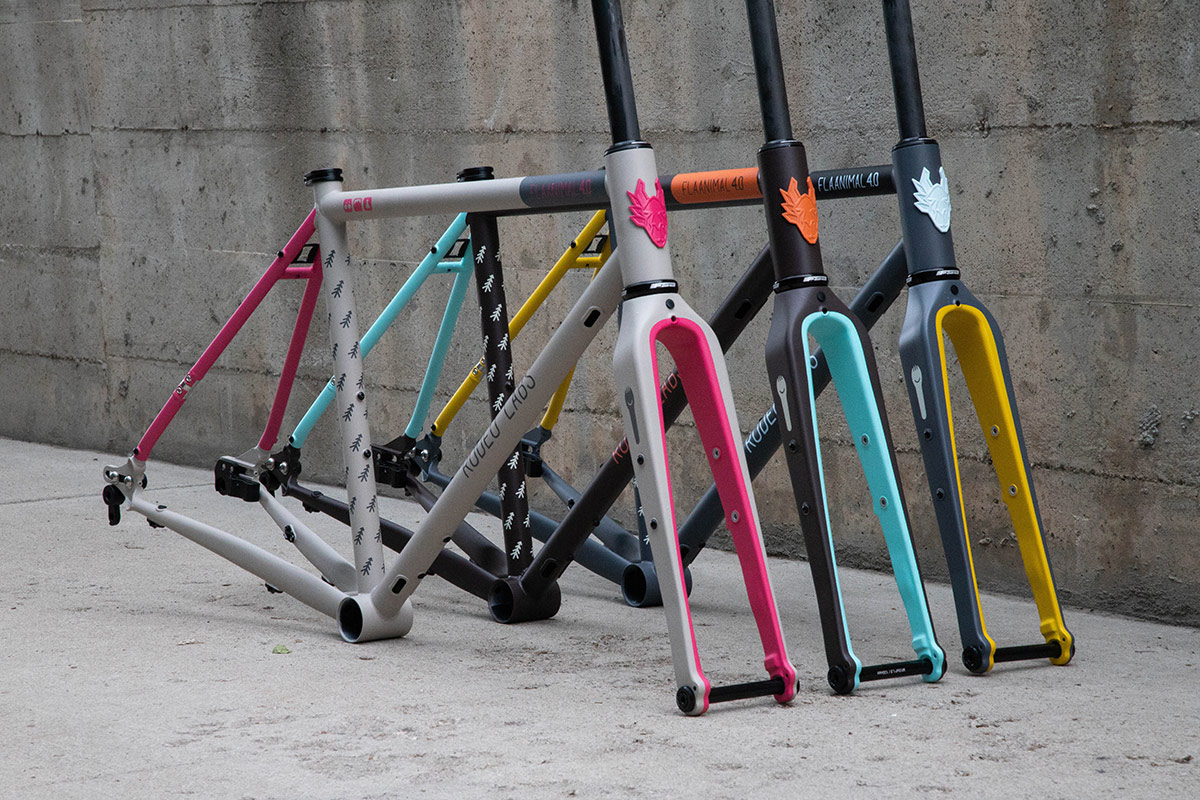

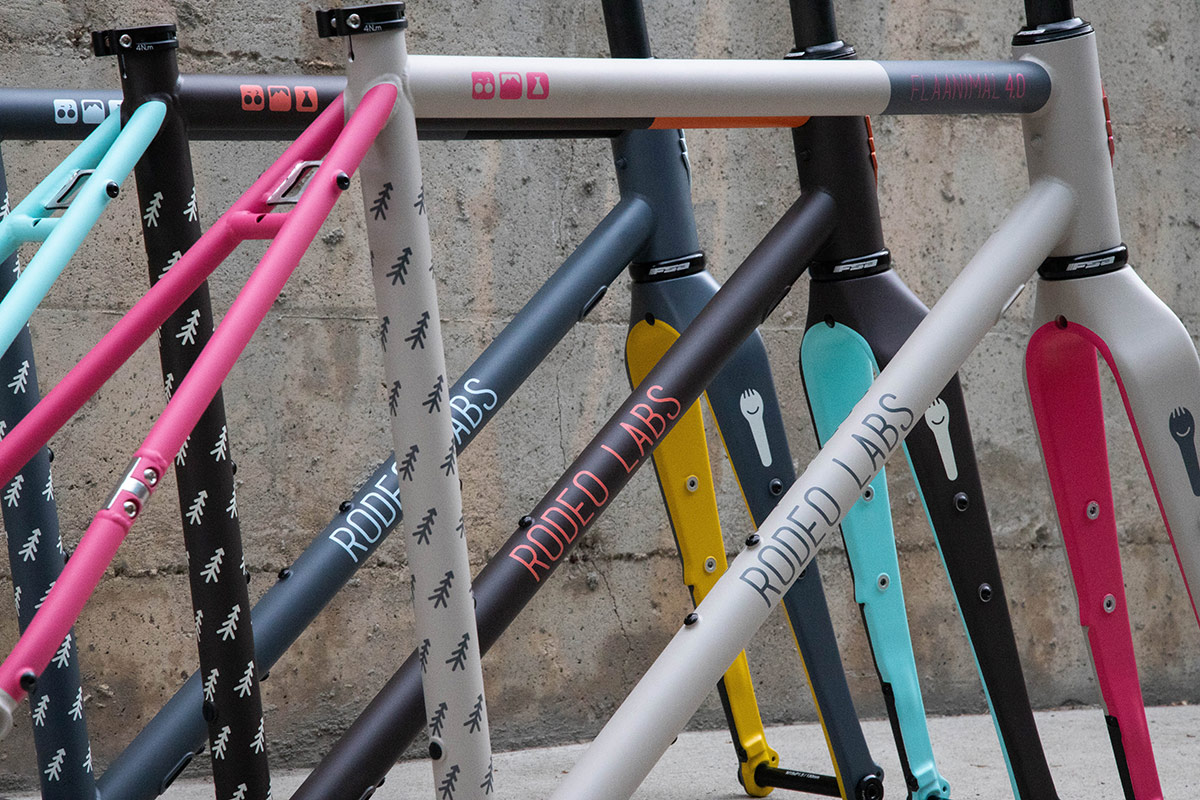

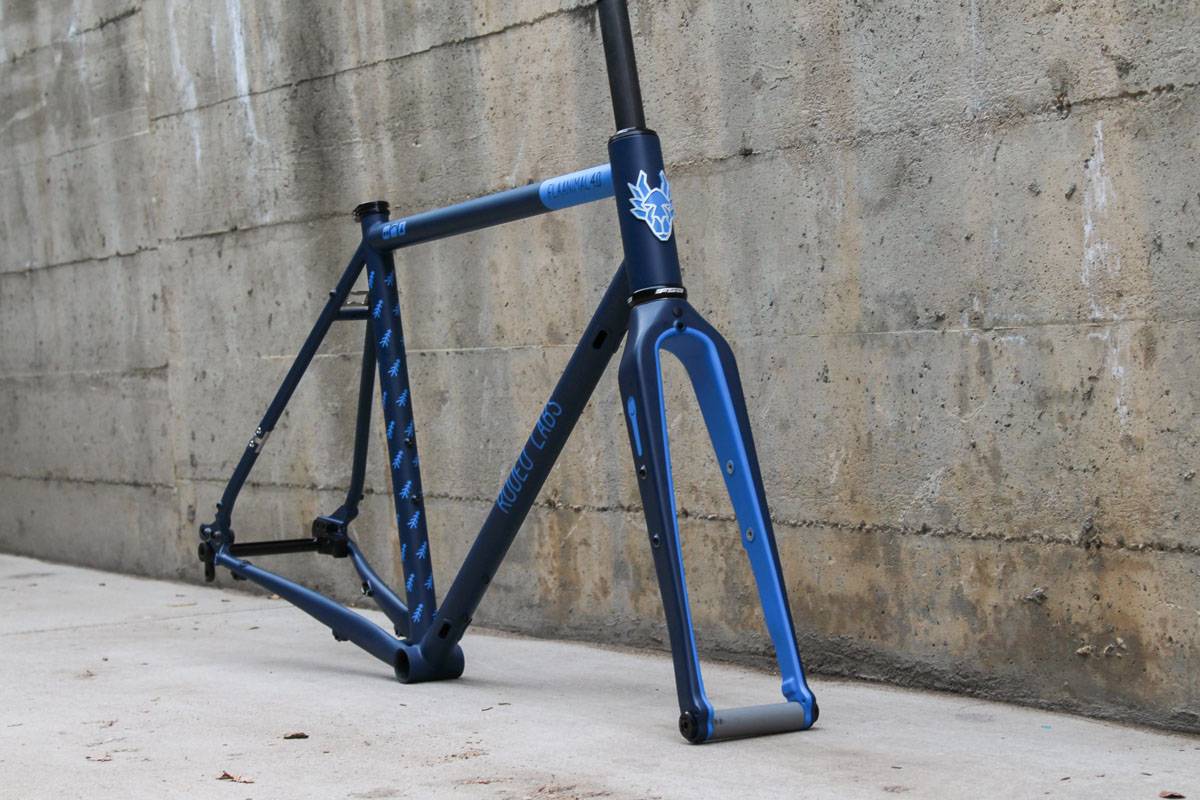

The Rodeo Labs Flaanimal 4.0 is:

  • Reynolds 725 custom butted CroMoly Frame
  • Rodeo Spork 1.2 carbon fork / dynamo hub / USB stem cap compatible
  • Flat mount brake mounts front and rear
  • 12mm through axle rear (included) 15mm through axle front (included)

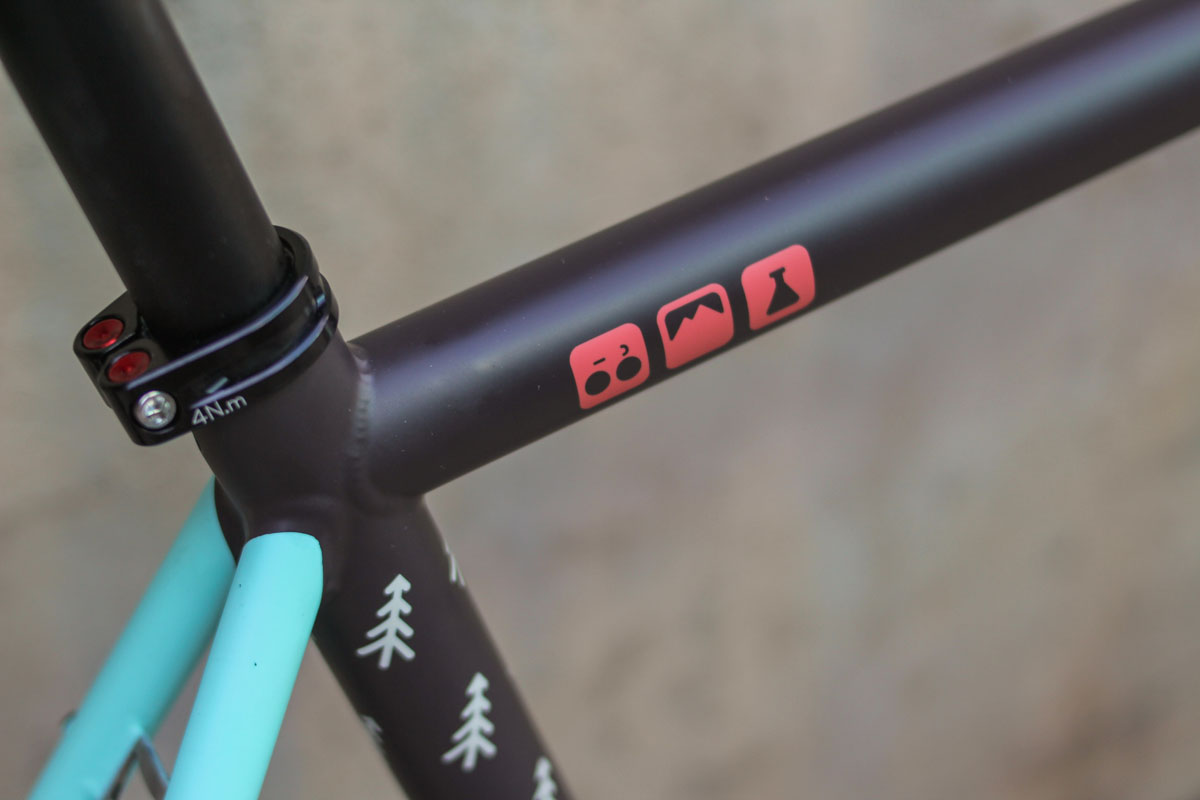

  • 27.2 seatpost (clamp included)

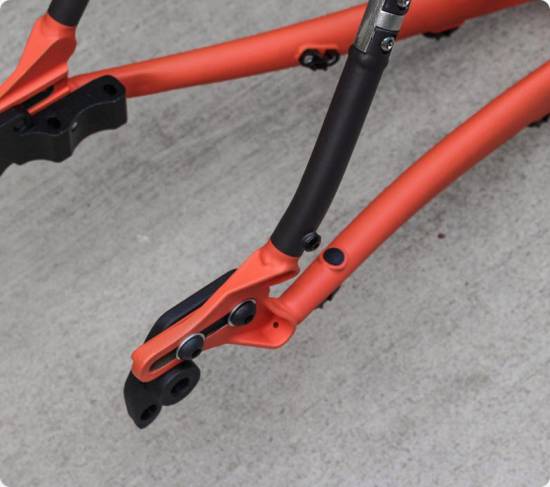

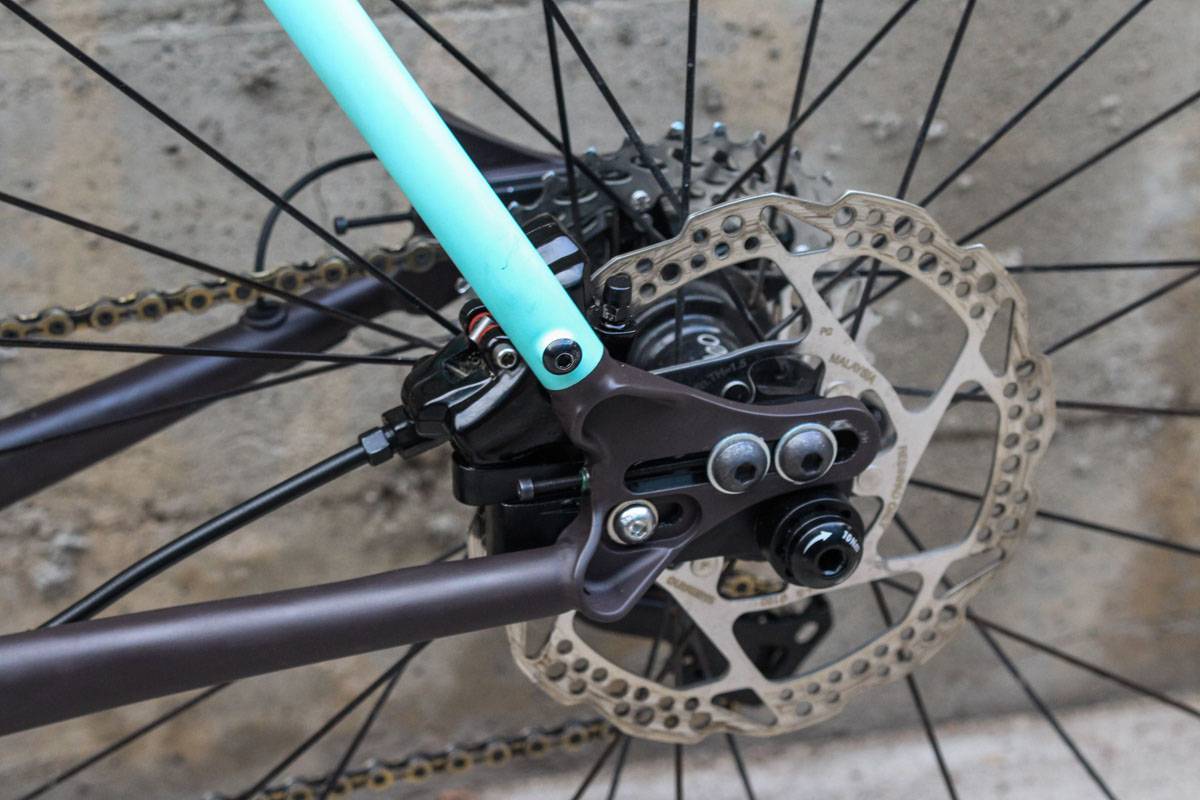

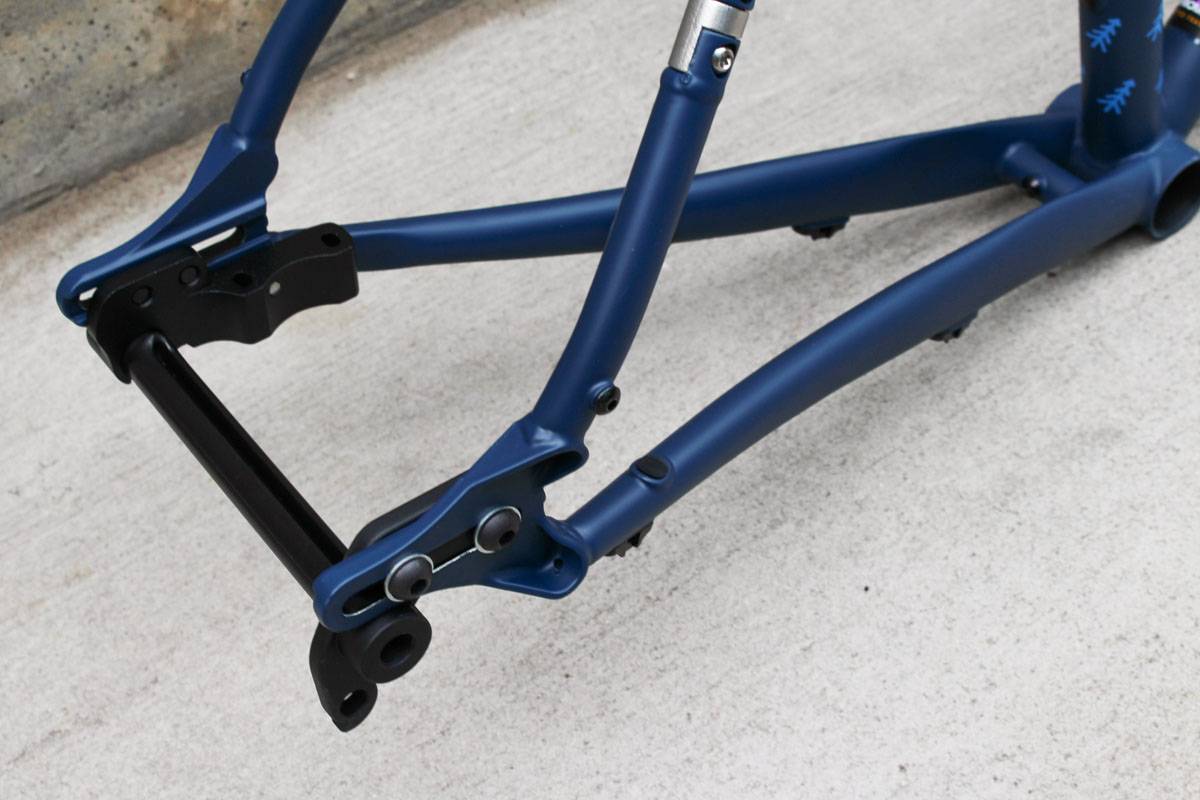

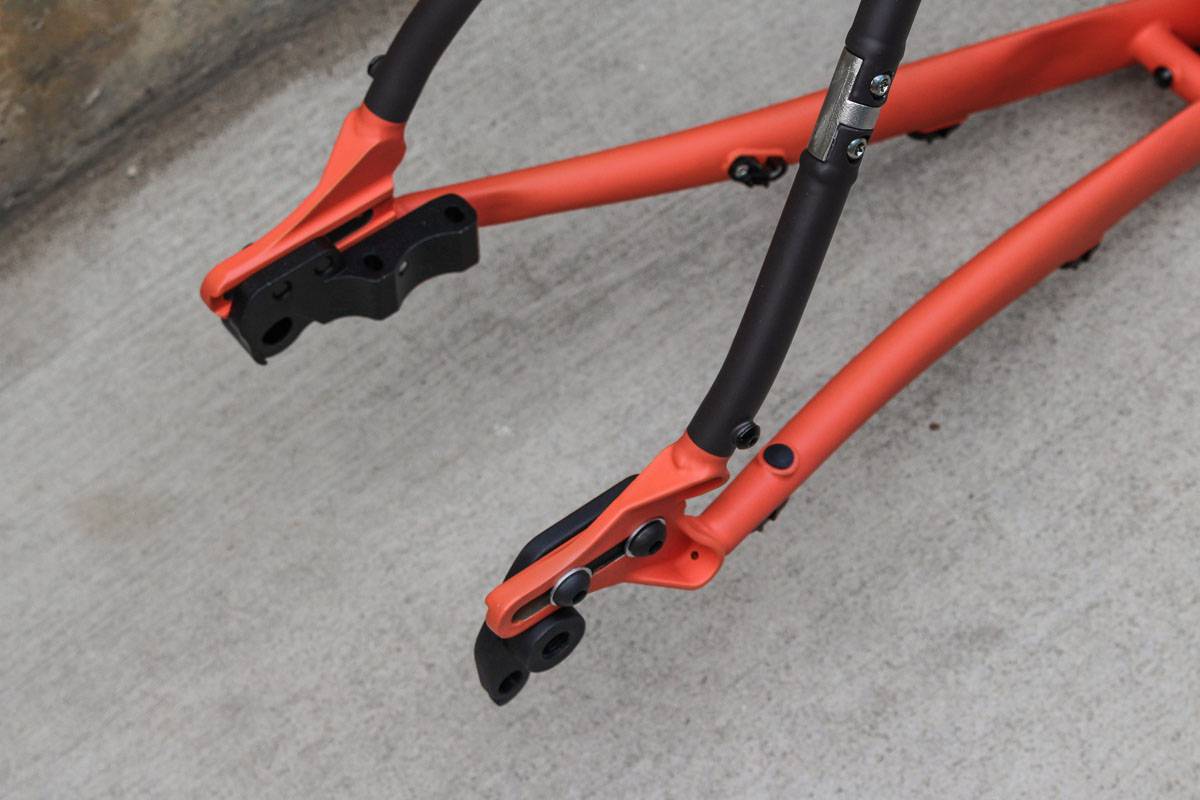

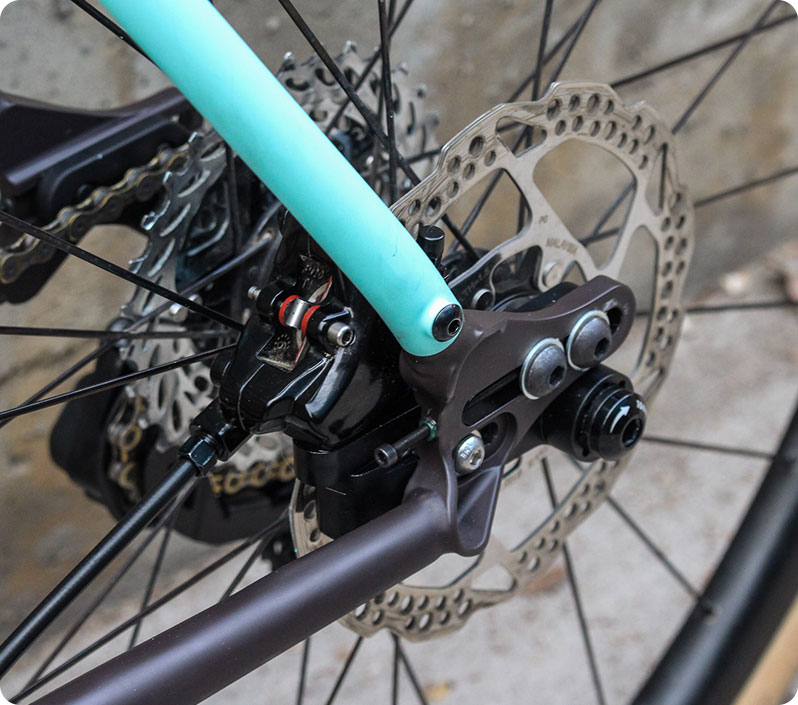

  • Sliding dropouts for geared, flat mount brake, 12mm axle builds (included)

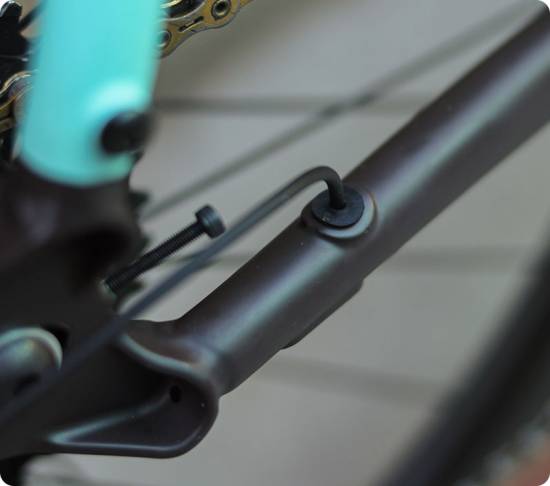

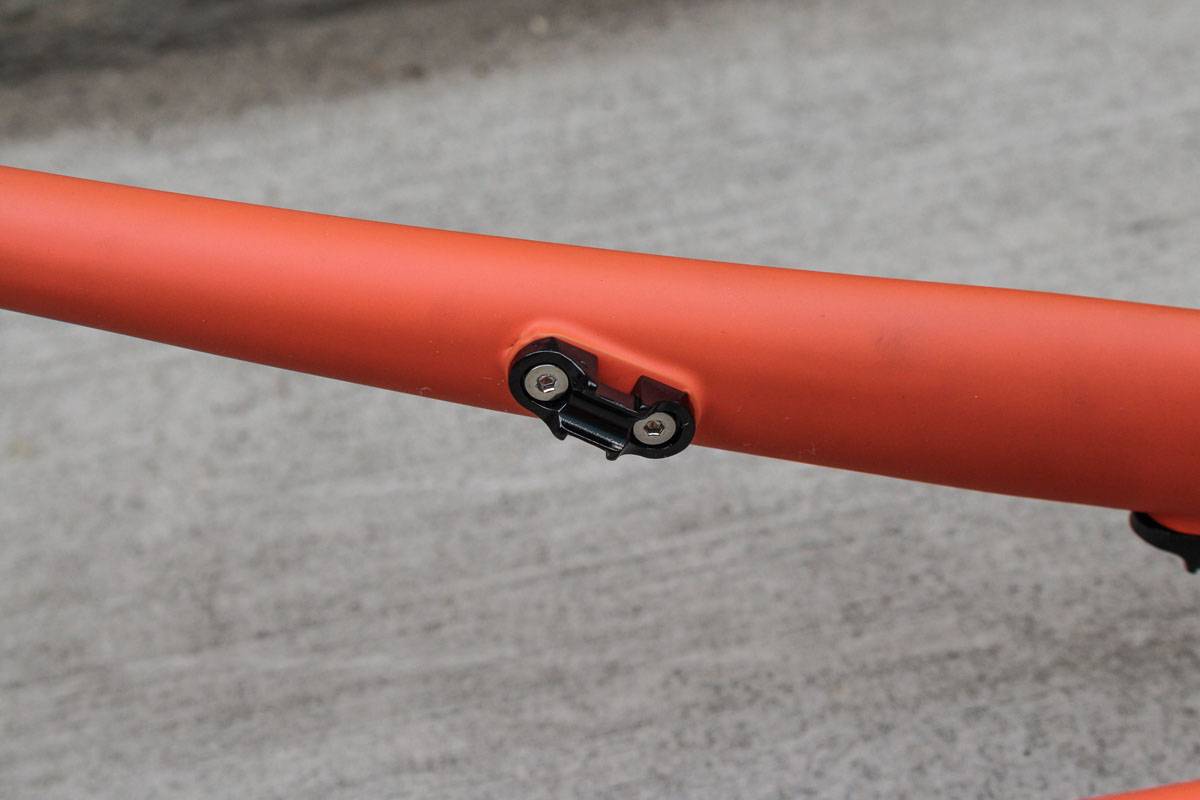

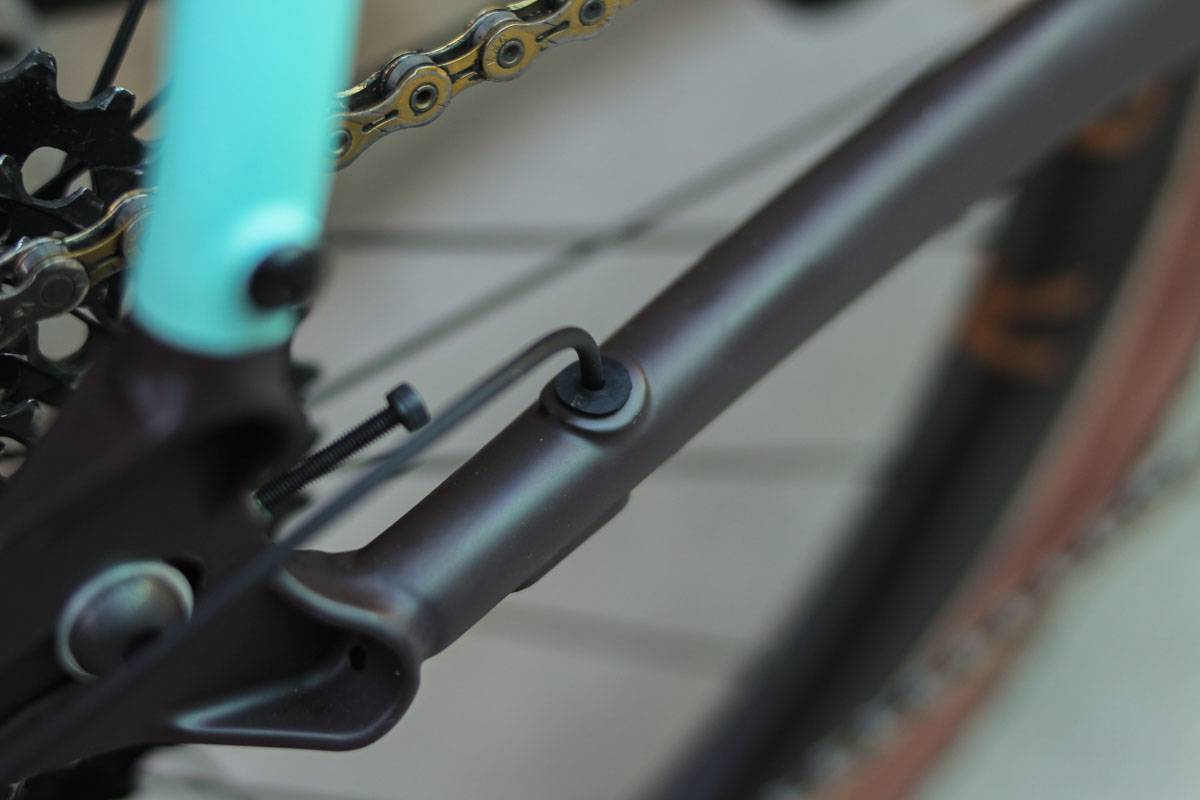

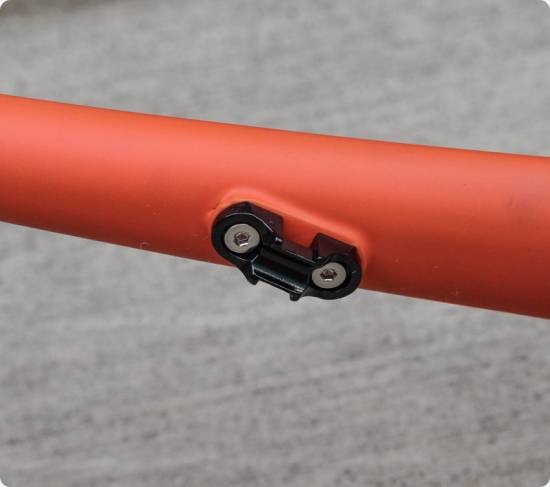

  • Internal down tube routing + configurable hardware (included)

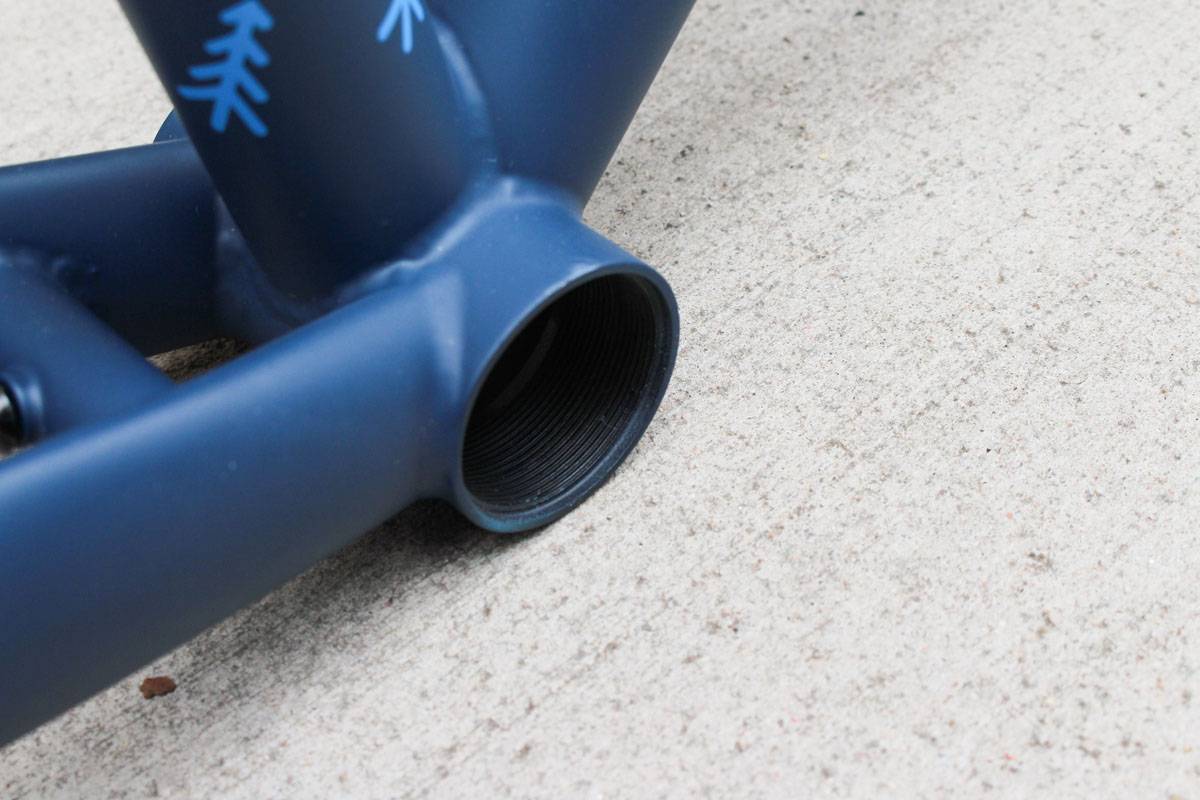

  • 68mm BSA English threaded bottom bracket
  • Pump mounting peg

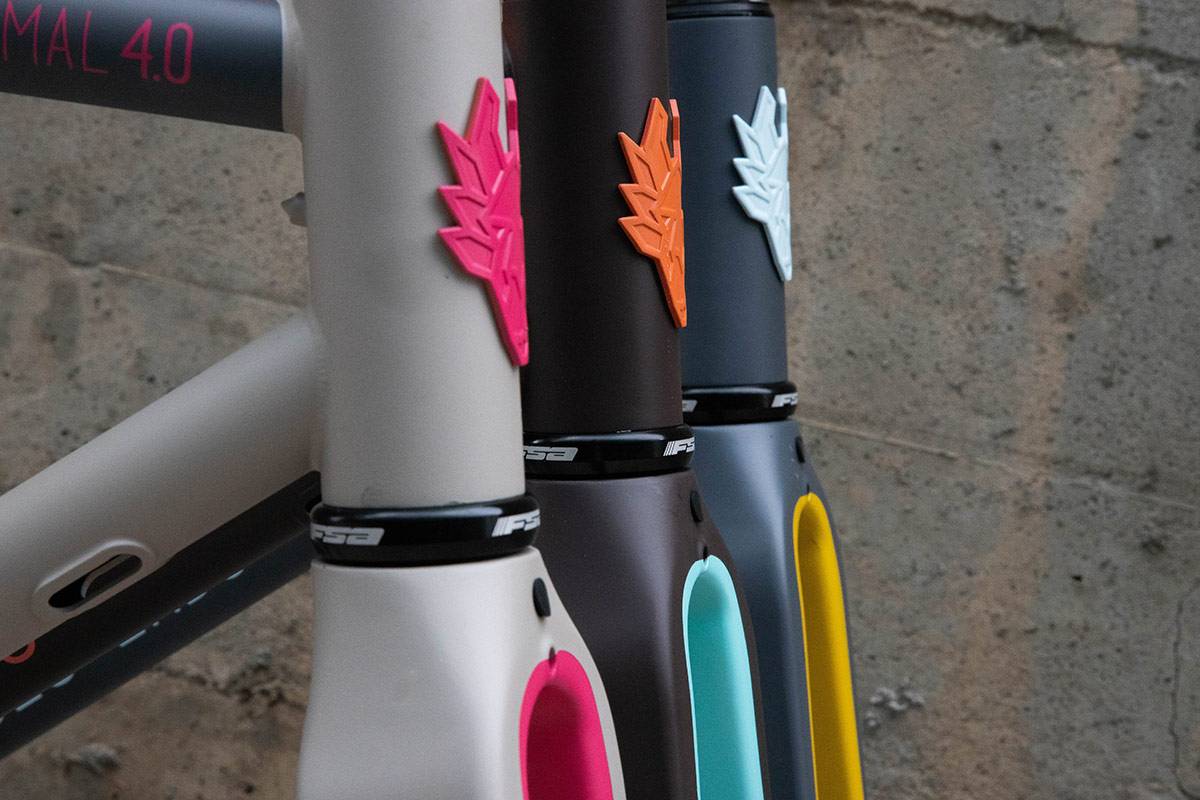

  • EC44 tapered headset spec. Headset available separately
  • Single speed through axle dropout available separately
  • Off the back large profile flat mount brake mount available separately
  • Alfine / Rohloff QR dropouts available separately
  • 12mm front fork axle conversion available separately
  • 160mm rear flat mount adapter available separately
  • 160mm post mount brake adapters available separately

Additional information

Weight 5.5 lbs
Color

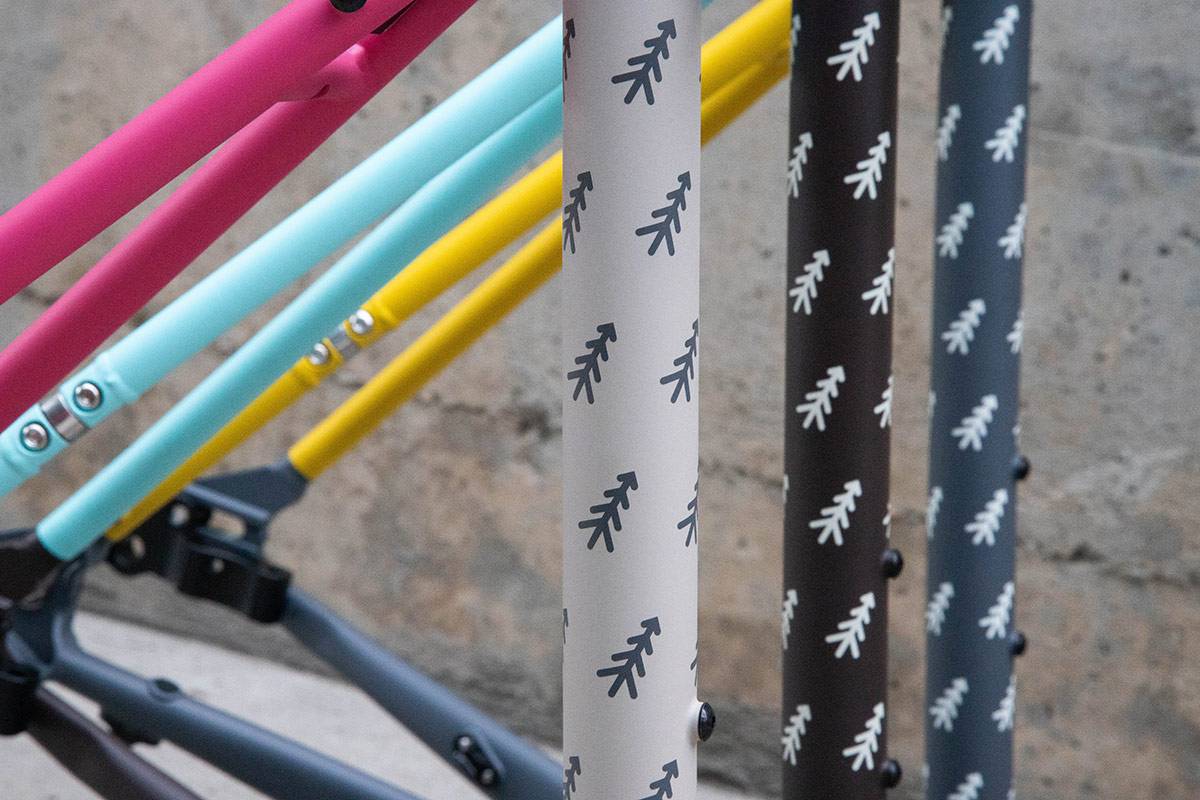

Pine Cone 48cm, Pine Cone 50cm, Pine Cone 52cm, Pine Cone 54cm, Pine Cone 56cm, Pine Cone 58cm, Pine Cone 61cm, Bleaux Deaux 48cm, Bleaux Deaux 50cm, Bleaux Deaux 52cm, Bleaux Deaux 54cm, Bleaux Deaux 56cm, Bleaux Deaux 58cm, Bleaux Deaux 61cm, Chocolate Creamsicle 48cm, Chocolate Creamsicle 50cm, Chocolate Creamsicle 52cm, Chocolate Creamsicle 54cm, Chocolate Creamsicle 56cm, Chocolate Creamsicle 58cm, Chocolate Creamsicle 61cm

Reviews

There are no reviews yet.

Be the first to review “Flaanimal 4.0”

Your email address will not be published. Required fields are marked *





Rodeo Wheels

If you are looking at our 650b or 700c 2.0 carbon Rodeo Wheels for your new Flaanimal be advised that all Rodeo frameset owners qualify for a standing family discount of $300 per wheelset. Just add the wheels to your cart and use code familybusiness at checkout. We verify all uses of this coupon code.

 LINK



BUILD TEMPLATES

We are happy to work with customers to create full builds around their Rodeo framesets. Each build that Rodeo delivers is tailored to its owner at no additional cost. In order to create a full bike build with us, simply purchase a frameset and send us an email. We apply 100% of the frameset purchase price towards your build and we work out your build details collaboratively via direct communication. We are able to source from a huge library of parts from across the bike industry to create the bike that matches your style and goals.

Feel free to check out our build templates below to get a sense of what is possible and what pricing looks like.

Gates Carbon Drive single speed. TRP Xylex RS hydraulic brakes. Cinelli Vai cockpit. Rodeo 2.0 carbon 650b wheels.

$2800.00

Bar / Size Cinelli Vai 42cm
Stem / Length Cinelli Vai / 110
Headset FSA Orbit
Seat Clamp Standard 6066
Seatpost Cinelli Vai 27.2
Saddle WTB Volt 142
Bottom Bracket Shimano BSA 68mm
Crankset Shimano Alfine
Gates Sprocket (front)
Belt Gates Carbon Drive
Gates Sprocket (rear) Gates Carbon Drive
Front Brake Levers TRP Hylex RS
Rear Brake Levers TRP HyLex RS
Brake Lines / Hydro TRP HyLex RS
Brake Lines / Hydro TRP HyLex RS
Brake Caliper Front TRP Hylex RS
Brake Caliper Rear TRP Hylex RS
Bar Tape Black
Rear Hub Rodeo 2.0 28h
Front Hub Rodeo 2.0 28h
Rim Front Rodeo 2.0 28h Carbon / 650b
Rim Rear Rodeo 2.0 28h Carbon / 650b
Spokes Sapim Race double butted 14/15g black spokes
Nipples Sapim 14g x 12mm black brass secure lock nipples
SS spacer kit SS spacer kit
Wheel Build Magnetic Wheel Co Handbuilt
TIRES WTB Horizon 650b
Rotors Shimano 160mm centerlock rotors
Brake adapters Flat mount 160mm rear adapter
Front QR / Axle Rodeo Through Axle / 15mm
Rear QR / Axle Rodeo Through Axle / 12mm

Sram Rival 1x HRD, Ritchey Comp controls, Praxis Zayante hollow forged crankset, Rodeo 2.0 carbon wheels.

$3380.00

Bar / Size Ritchey Comp
Stem / Length Ritchey Comp
Headset FSA
Seat Clamp Standard 6066
Seatpost Ritchey Comp 27.2
Saddle WTB Volt 142
Bottom Bracket Praxis M30
Crankset Praxis Zayante 42t
Pedals None
Chain SRAM Rival PC 1130
Cassette Sram PG1130 11-42
Rear Derr. Rival 1 Long Cage
Front Shift / Levers Rival 1
Rear Shift / Levers Rival 22 HRD
Brake Lines / Hydro Sram Rival HRD
Brake Lines / Mech Sram Rival HRD
Shift housing / cables Sram Rival HRD
Brake Caliper Front Rival Flat Mount HRD
Brake Caliper Rear Rival Flat Mount HRD
Bar Tape Black
Rim Front Rodeo 2.0 / 28h carbon
Rim Rear Rodeo 2.0 / 28h carbon
Front Hub Rodeo 2.0 / 28h
Rear Hub Rodeo 2.0 / 28h
Spokes Sapim Race
Nipples Brass Nipples
Build Magnetic Wheel Co hand built.
Tires WTB Nano 40TCS Skinwall
Tires WTB Nano 40TCS Skinwall
Rotors Centerlock 160 front/rear
Brake adapters SRAM 160mm included
Front QR / Axle Rodeo Through Axle / 15mm
Rear QR / Axle Rodeo Through Axle / 12mm

Shimano Di2 shifting combined with TRP’s class leading hydraulic brake lever feel. Rodeo 2.0 carbon wheels.

$3916.00

Bar / Size Ritchey Comp Evo Max
Stem / Length Ritchey Comp 6 degree
Headset FSA EC44
Seat Clamp 6065
Seatpost Ritchey Comp 1 bolt.
Saddle WTB SL8 Team
Bottom Bracket Praxis 68mm threaded
Crankset Praxis Zayante 42T
Chain Shimano 11spd
Cassette 11-42
Rear Derr. XT Di2 rear Mech
Shift / Levers TRP Hylex RS
Shift / Levers TRP Hylex RS
Climber’s Switch Shimano Climber’s switch for TRP Di2 Mod
Di2 Battery BT-DN110
Di2 Battery seatpost mount 27.2
Brake Lines / Hydro Included with Shift / Levers
Battery Charger Di2 Battery charger
Di2 Junction Junction A / 3 port
Di2 Junction Junction B
di2 wire Shifter Wire
di2 wire Shifter Wire
di2 wire Down Tube Wire
di2 wire Rear Der. Wire
di2 wire Battery Wire
Brake Caliper Front TRP Hylex RS
Brake Caliper Rear TRP Hylex RS
Bar Tape Ritchey
Rim Front Rodeo 2.0 carbon 700c
Rim Rear Rodeo 2.0 carbon 700c
Front Hub Rodeo 2.0 28h
Rear Hub Rodeo 2.0 28h
Spokes Sapim Race
Nipples Brass
Build Magnetic Wheel Co Handbuilt
Valve Tubeless
Tires Schwalbe G-One 35c
Tires Schwalbe G-One 35c
Rim Tape 24mm
Rotors Shimano 160
Axles Hex through axles

Shimano Ultegra 22 hydro. Ritchey WCS Cockpit. Rodeo 2.0 700c carbon wheels.

$4102.00

Bar / Size WCS Evocurve
Stem / Length STEM WCS TRAIL Blatte 110mm/31.8mm (requests +/- 6/8 degree stem)
Headset FSA
Seat Clamp Standard 6066
Seatpost WCS LINK Blatte 400mm/31.6mm
Saddle WTB Volt Race142
Bottom Bracket Praxis M30 English Thread
Crankset Praxis Zayante 34/50 172.5mm
Chain CN-HG700-11, FOR 11-SPEED (ROAD/MTB COMPATIBLE)
Cassette ICS680011132
Front Derr. Ultegra FD-6800-F – Braze On.
Front derr cable stop Front derr cable stop
Rear Derr. RD-6800 GS 11-speed
Front Shift / Levers Ultegra Shift Brake Lever set / Hydro
Front Shift Housing 34″ Shimano Housing
Rear Shift Housing 7′ 2″ Shimano Housing
Brake Caliper Front Shimano 505 Flat Mount
Brake Caliper Rear Shimano 505 Flat Mount
Bar Tape WCS Pave Tape / Black
Rim Front Rodeo 2.0 / 28
Rim Rear Rodeo 2.0 / 28
Front Hub Rodeo 2.0 / Bitex 106R
Rear Hub Rodeo 2.0 / Bitex 106R
Spokes Sapim Race
Nipples Sapim Nipples
Build Magnetic Wheel Co
Valve Tubeless valve
Tires Schwable G-One
Tires Schwable G-One
Rim Tape 24mm rim tape
Rotors Shimano 160
Brake adapters Rodeo 160mm
Front QR / Axle Rodeo Through Axle / 15mm
Rear QR / Axle Rodeo Through Axle / 12mm

Shimano Alfine Di2 internally geared 11 speed rear hub combined with Gates Carbon Drive belt drive system for all weather commuting or generally rowdy riding. Ritchey WCS cockpit. Rodeo 2.0 carbon wheels.

$4700.00

Bar / Size Ritchey WCS Evomax
Stem / Length Ritchey WCS C229
Headset FSA EC44
Seat Clamp Standard 6066
Seatpost Ritchey WCS 1 bolt
Saddle WTB Volt 142
Bottom Bracket Praxis BSA M30
Crankset Praxis Zayante
Belt Gates Carbon Drive 113
Cog Gates Carbon Drive 22
Chainring Gates / 50
Shift / Levers R785 Di2 Hydro
Shift / Levers R785 Di2 Hydro
Di2 Battery BT-DN110
Di2 Battery seatpost mount Ritchey
Brake Lines / Hydro Shimano
Battery Charger Di2 Battery charger
Di2 Junction Junction A
Di2 Junction Junction B
di2 wire Handlebar 350mm
di2 wire Handlebar 350mm
di2 wire Down Tube 1200mm
di2 wire Wireless bridge 20mm
Di2 Wireless unit EW-WU101
di2 wire Rear Der. Wire
di2 wire Battery Wire
Brake Caliper Front RS505 Flat Mount
Brake Caliper Rear RS505 Flat Mount
Bar Tape Black
Rear Hub Alfine Di2 11 speed centerlock 32h
Front Hub Bitex 106 F 32h
Rim Front Rodeo 2.0 Carbon 700c 28h
Rim Rear Rodeo 2.0 Carbon 700c 32h
Spokes Sapim Race double butted 14/15g black spokes
Nipples Sapim 14g x 12mm black brass secure lock nipples
Wheel Build Magnetic Wheel Co handbuilt
TIRES Panaracer Gravel King
Rotors Shimano 160
Brake adapters Rodeo 160mm adapter
Front QR / Axle Rodeo Through Axle / 15mm
Rear QR / Axle Rodeo Through Axle / 12mm

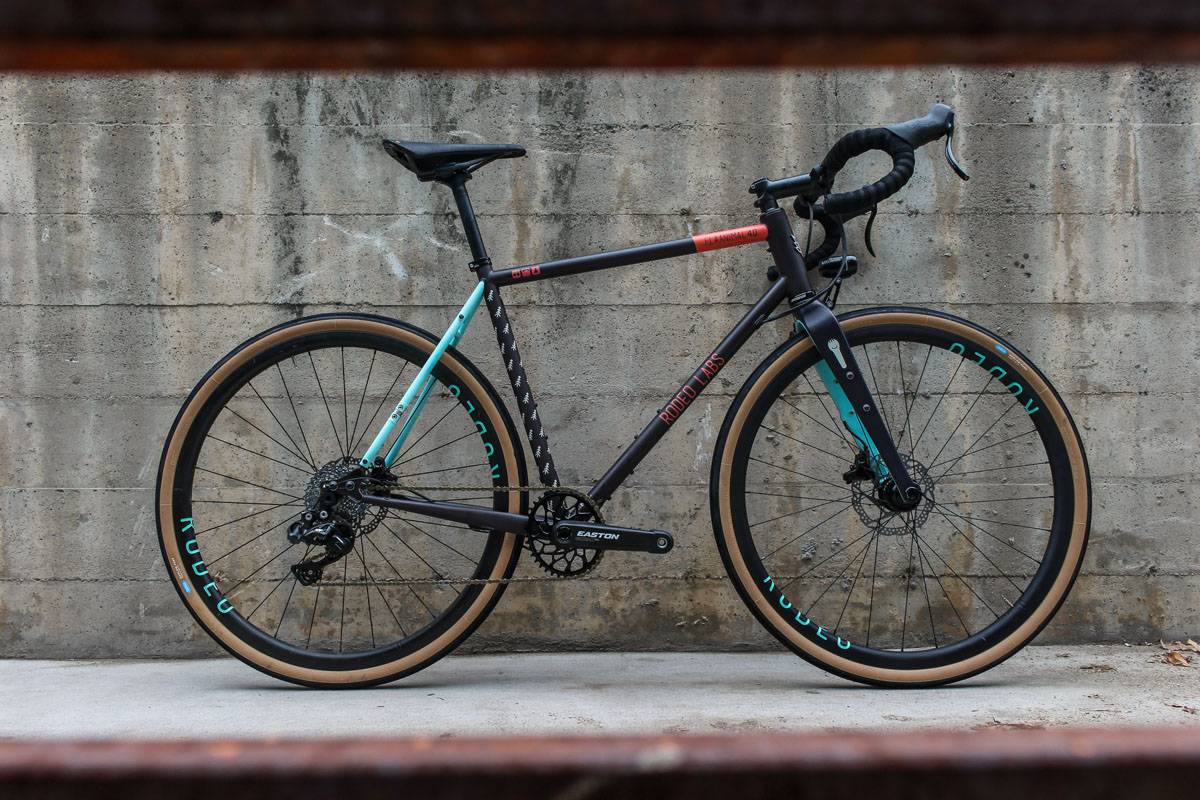

Sram Force 1 HRD shifting. Easton EC70 cockpit. Rodeo 2.0 650b carbon wheels

$4800.00

Bar / Size Easton EC70 AX // 42cm
Stem / Length EA70 STM 6D 31.8 100 4B AM 13
Headset FSA
Seat Clamp Standard 6066
Seatpost EA70 SP ZERO 400 31.6 2B AM 13
Saddle WTB Volt Race 142
Bottom Bracket Praxis M30 PF30 conversion BB
Crankset Praxis Zayante 172.5 / 40t
Pedals None
Chain PC1130
Cassette Sram Force 11-Sram, XG-1150, 11sp. cassette, 10-42T
Front Derr.
Rear Derr. Sram Force 1x Long Cage
Front Shift / Levers Sram Force 1
Rear Shift / Levers SRAM Force HRD Disc Rear Shifter
Brake Lines / Hydro Included with Shift / Levers
Brake Lines / Mech
Shift housing / cables
Brake Caliper Front SRAM Force Flat Mount
Brake Caliper Rear SRAM Force Flat Mount
Bar Tape Black
Bottle Cages None
Rim Front Rodeo 2.0 Carbon / 650b
Rim Rear Rodeo 2.0 Carbon / 650b
Front Hub Rodeo 2.0 / Bitex 106
Rear Hub Rodeo 2.0 / Bitex 106
Spokes Sapim CX-Ray
Nipples Brass
Build Magnetic Wheel Co
Valve Tubeless valve
Tires WTB Byway 650b
Tires WTB Byway 650b
Rim Tape 24mm tape
Rotors 2x 160mm Centerlock Rotor
Brake adapters Flat mount 160 rear
Tire Sealant Stans
Front QR / Axle Rodeo Through Axle / 15mm
Rear QR / Axle Rodeo Through Axle / 12mm

We’ve had a fair number of people ask how much it would cost to build a bike identical to the Pine Cone build that we feature in our photos. This built is pretty top of the line across the board and it adds a power meter to the mix as well. Here is the breakdown on spec and cost.

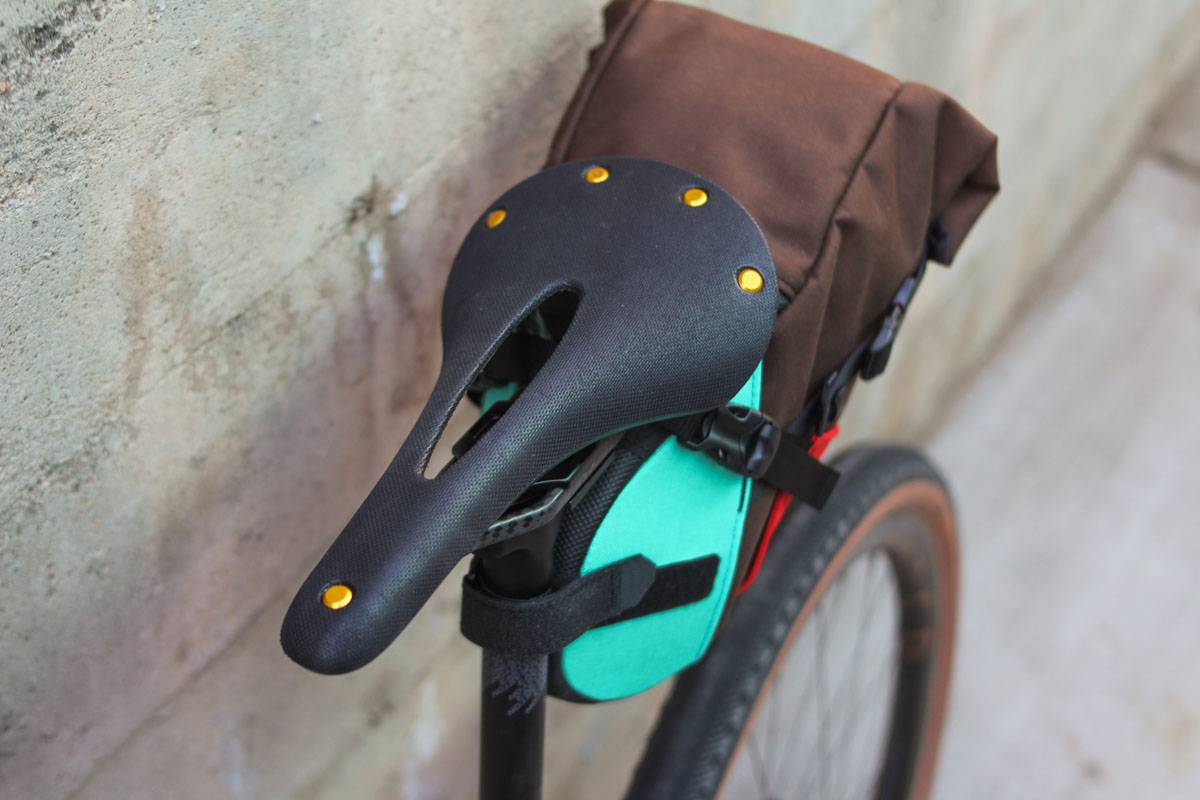

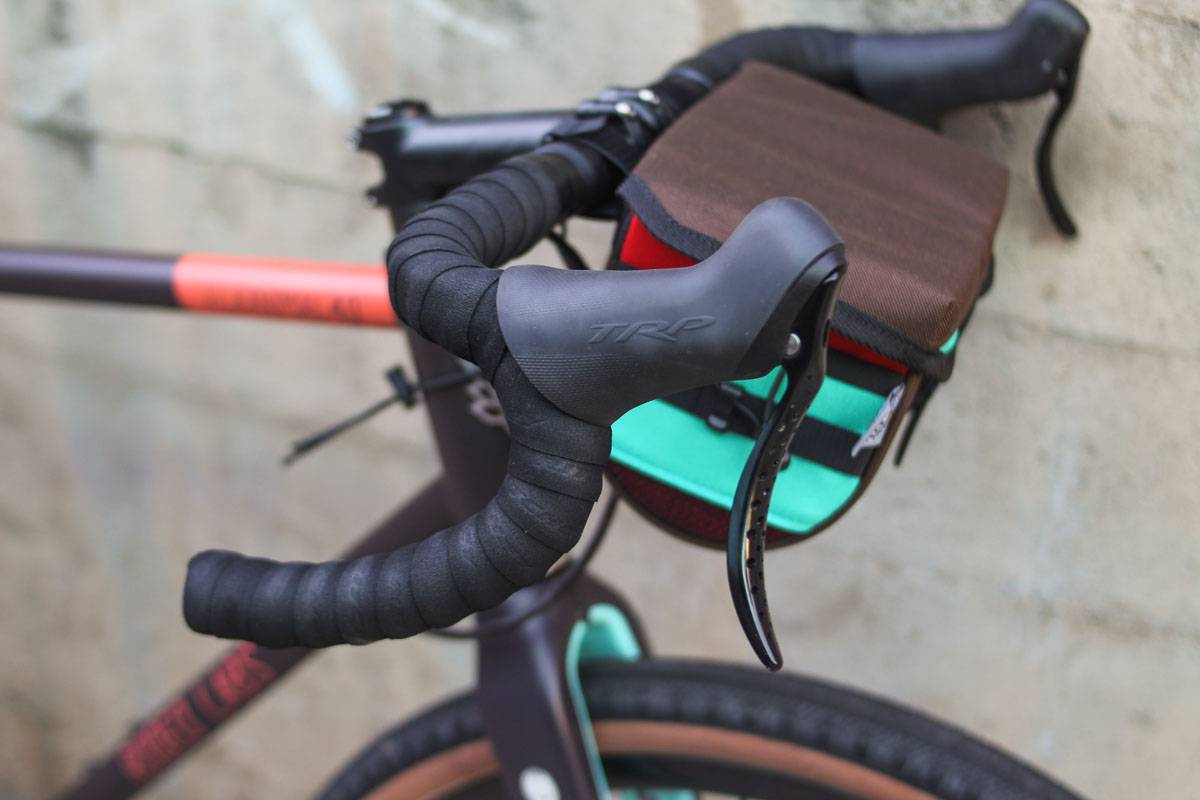

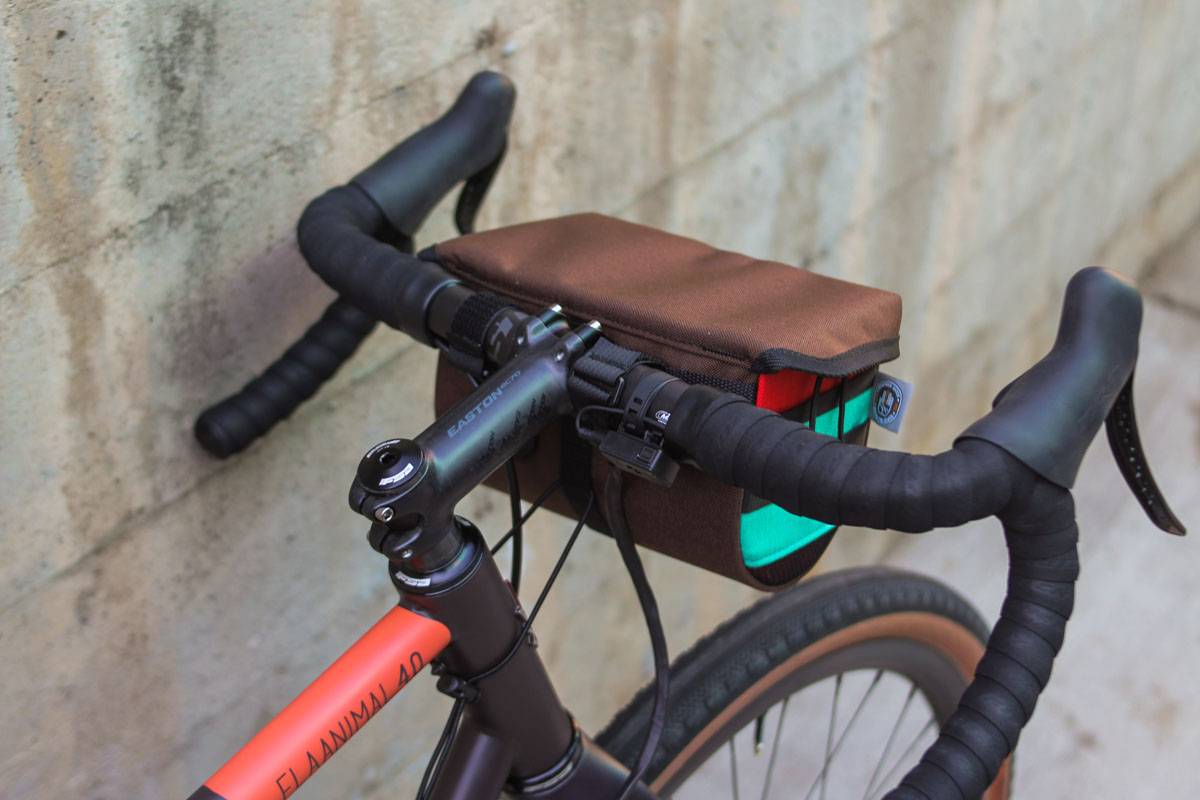

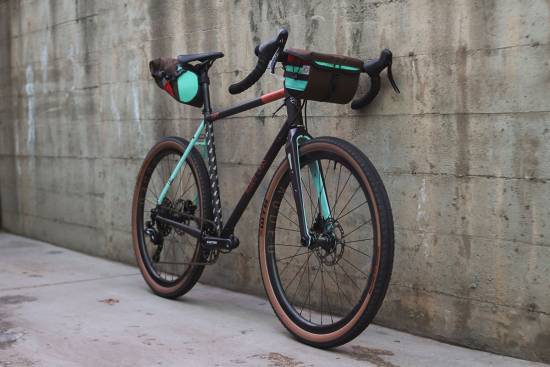

Custom front and rear bags by Andrew The Maker  available directly from Andrew separately.

$5530.00

Bar / Size Easton EC70 AX //44cm
Stem / Length Easton EC70 Stem
Headset FSA EC44
Seat Clamp 6065
Seatpost EA70 SP ZERO 400 27.2 2B AM 13
Saddle Brooks C13
Bottom Bracket Easton BSA English
Crankset Easton EC90SL
Power Meter Easton Cinch Power Spindle
Chainring Absolute Black Cinch Oval
Chain Shimano 11spd
Cassette Shimano 1150 10-42
Rear Derr. Shimano XT Di2
Shift / Levers TRP Hylex RS
Shift / Levers TRP Hylex RS
Climber’s Switch Shimano Climber’s switch for TRP Di2 Mod
Di2 Battery BT-DN110
Di2 Battery seatpost mount 27.2
Brake Lines / Hydro Included with Shift / Levers
Battery Charger Di2 Battery charger
Di2 Junction Junction A / 3 port
Di2 Junction Junction B
di2 wire Shifter Wire
di2 wire Shifter Wire
di2 wire Down Tube Wire
di2 wire Rear Der. Wire
di2 wire Battery Wire
Brake Caliper Front TRP Hylex RS
Brake Caliper Rear TRP Hylex RS
Bar Tape Brooks Cambium rubber bar tape
Rim Front Rodeo 2.0 carbon 650b
Rim Rear Rodeo 2.0 carbon 650b
Front Hub Rodeo 2.0 28h
Rear Hub Rodeo 2.0 28h
Spokes Sapim CX-Ray
Nipples Brass
Build Magnetic Wheel Co Handbuilt
Valve Tubeless
Tires WTB Byway 650b 47mm
Tires WTB Byway 650b 47mm
Rim Tape 25mm
Rotors Shimano 160
Axles Hex through axles

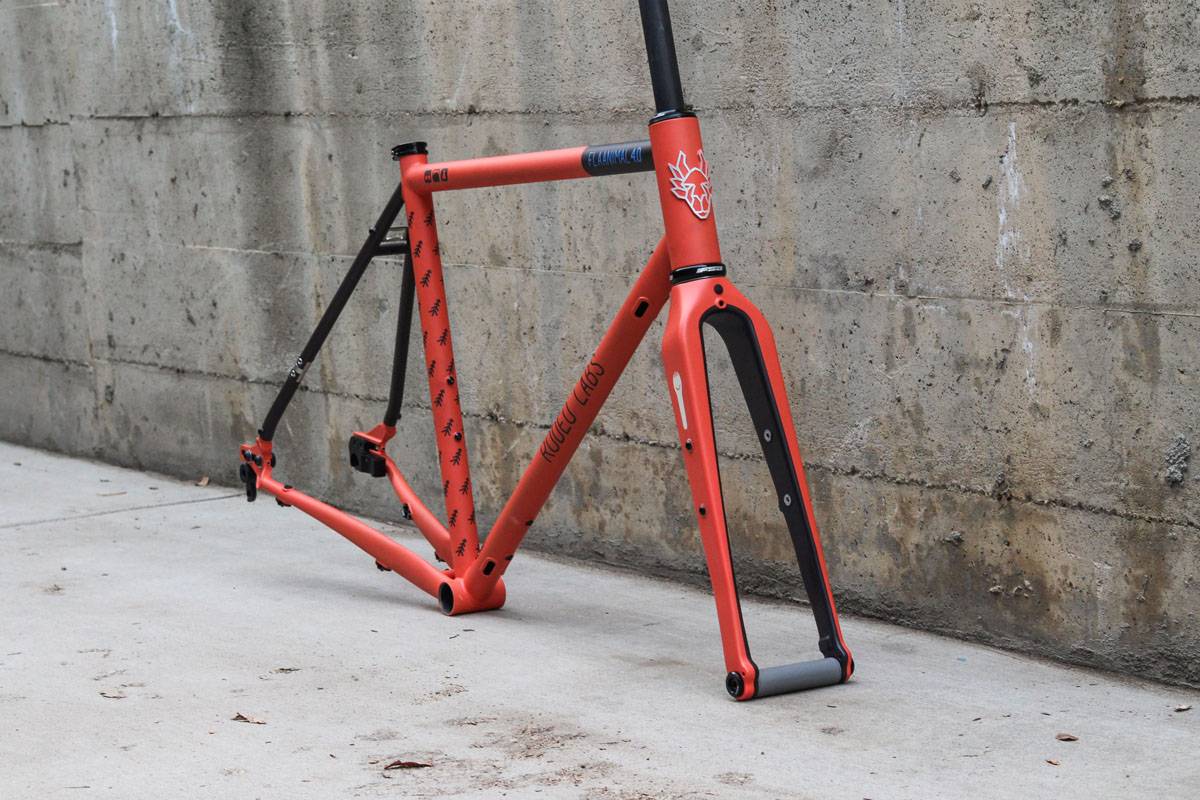

Flaanimal 4.0 Features

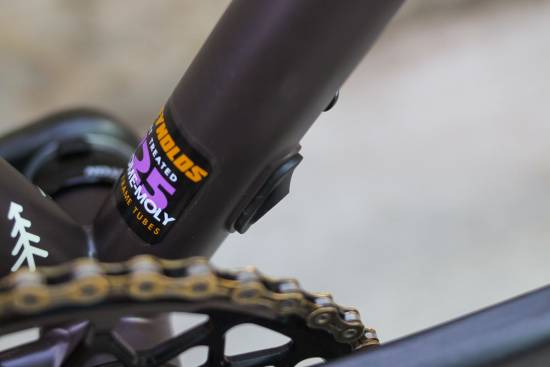

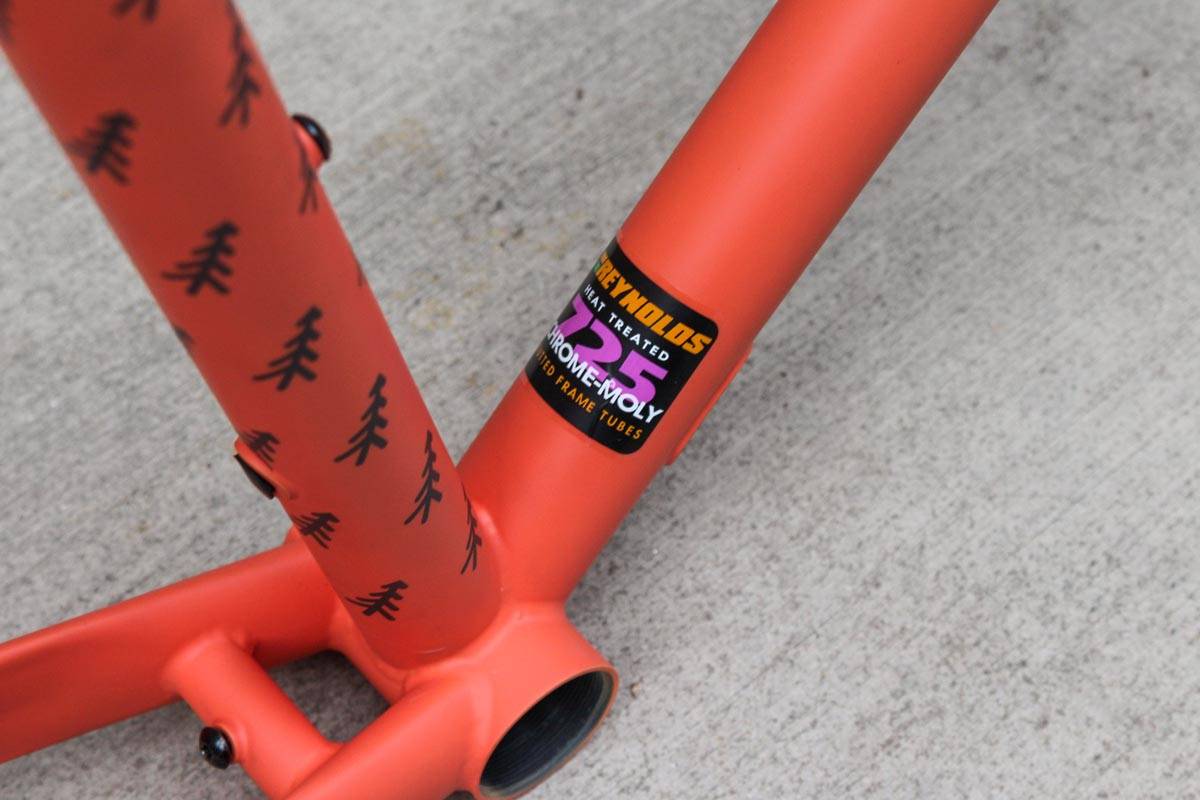

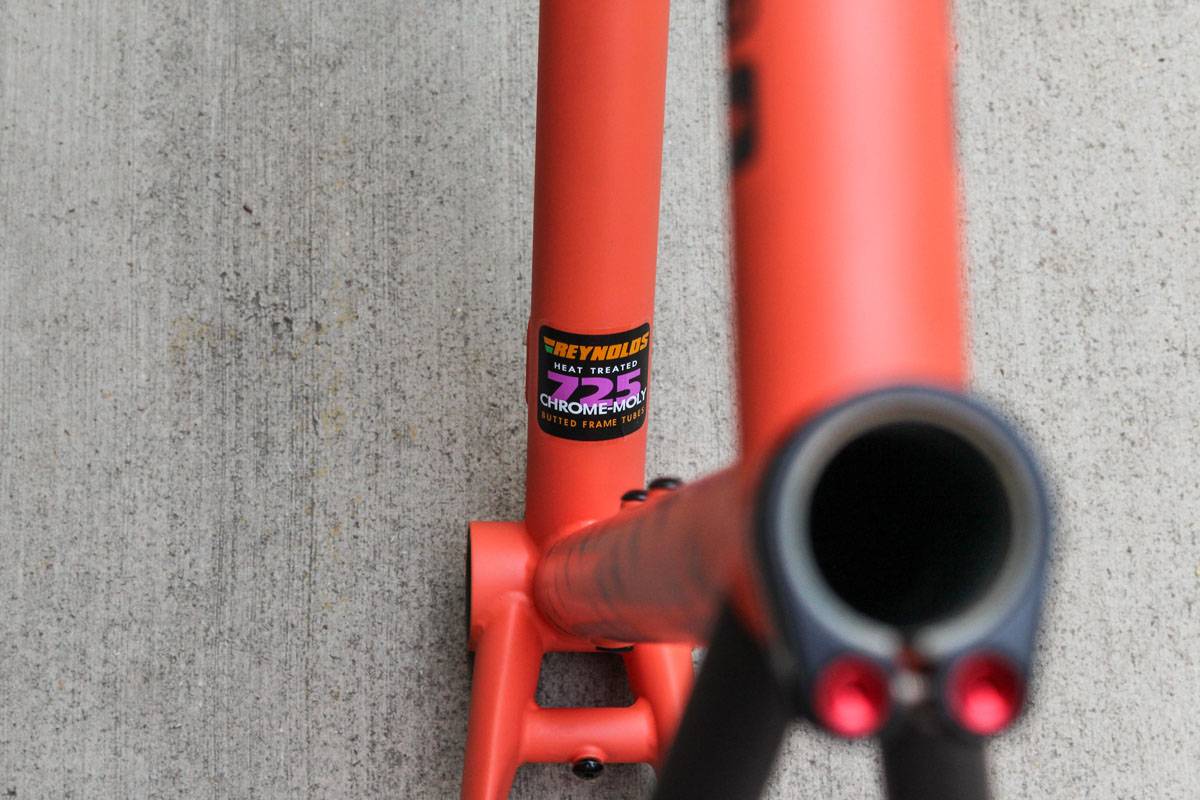

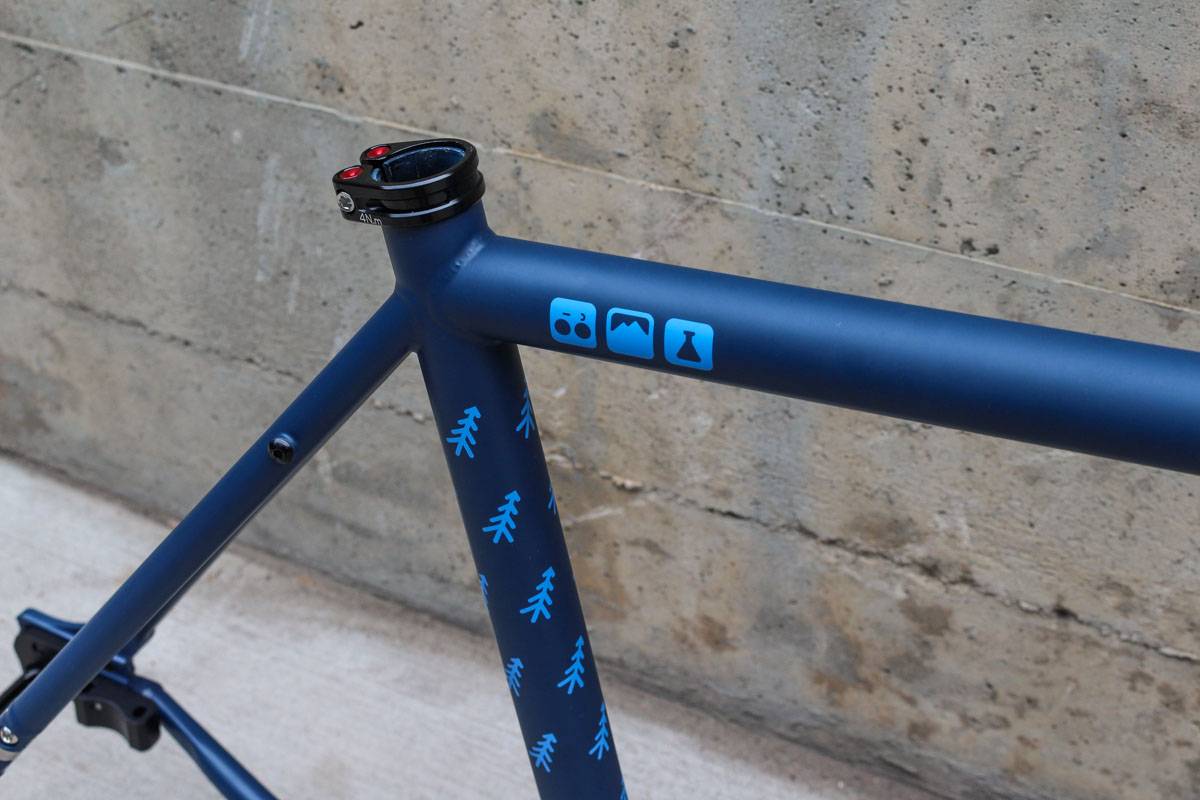

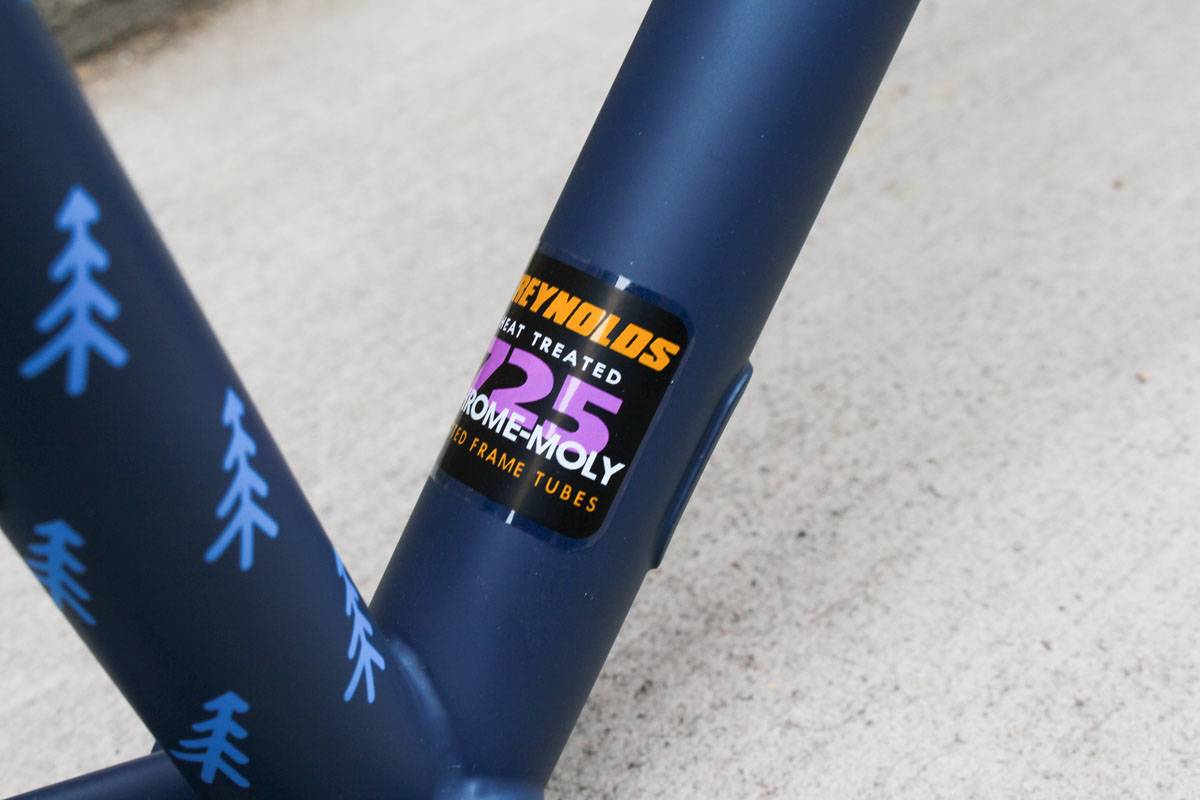

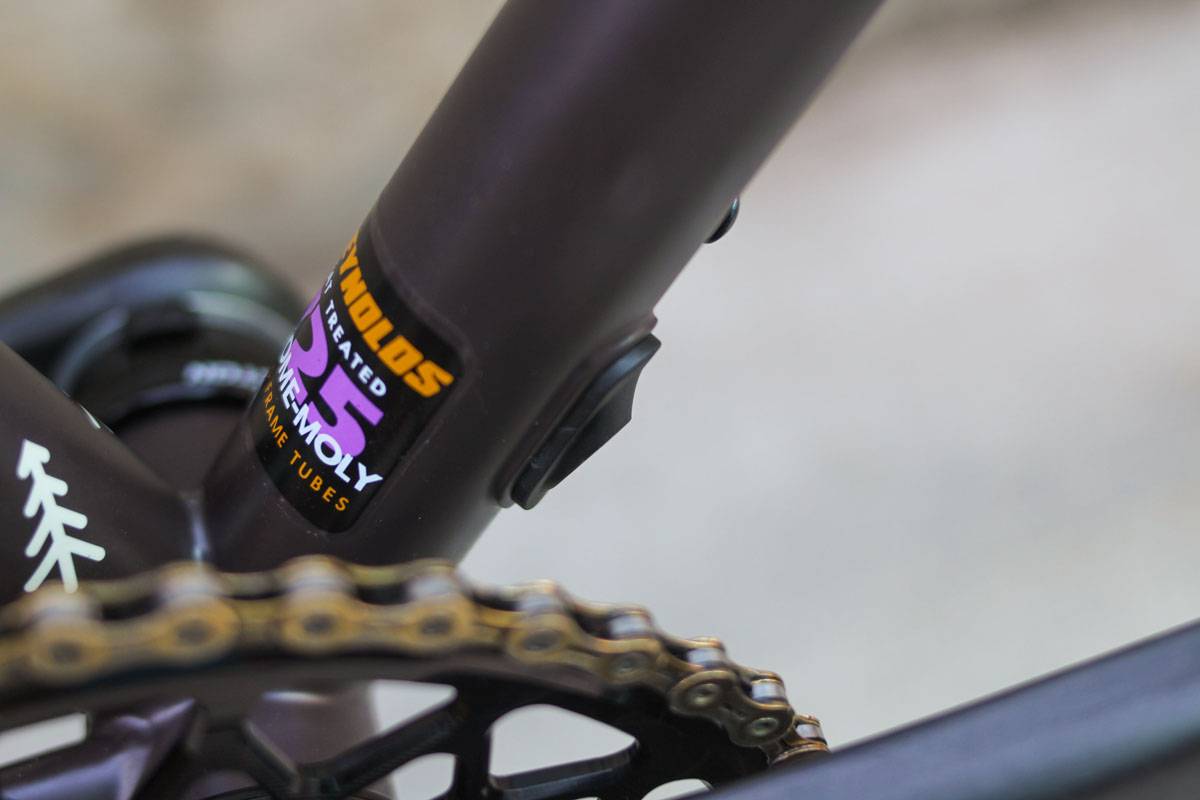

Reynolds 725 custom butted steel frame

Flaanimal 4.0 features a Reynolds 725 custom butted heat treated chromoly steel frame. Each tube profile is uniquely designed and balanced for weight and the strength requirements of an adventure frameset. The EC44 head tube, bottom bracket shell, and rear dropouts are machined to remove every ounce of un necessary material while leaving robust joining surfaces for strength. The rear triangle is optimized for drive side and non drive side loads and for the specific needs of the stainless steel Gates Carbon Drive frame coupler hardware.

With frame weights in the 2000gr range for size 48 up to 2500 gr for size 61 we’ve been able to carefully create an incredibly strong frameset that can stand up to the rigors of road and off road riding. Our frameset weights are on par with the best in the industry while at the same time offering a more broad and adaptable feature set than any other frameset in this category.

The Flaanimal 4.0 frameset is on average 800 grams lighter than the Flaanimal 3.0 frameset.

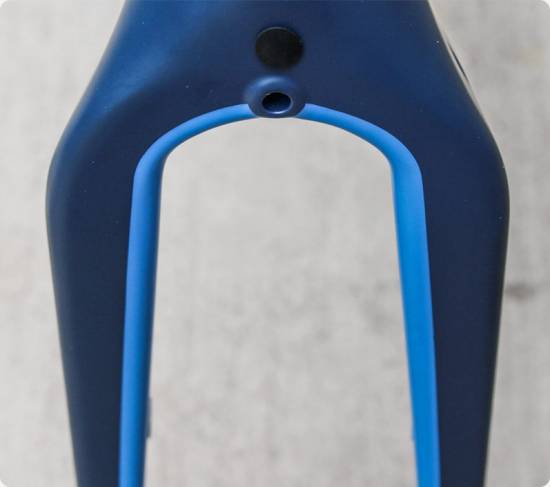

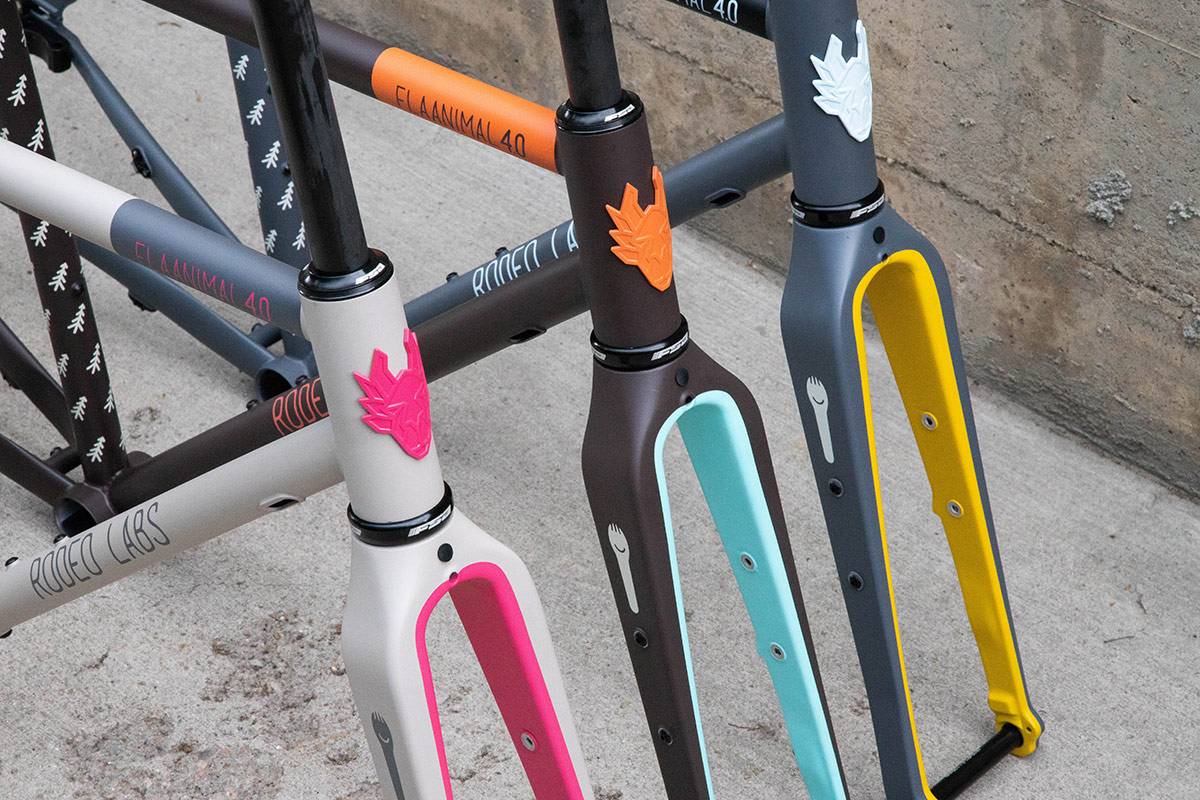

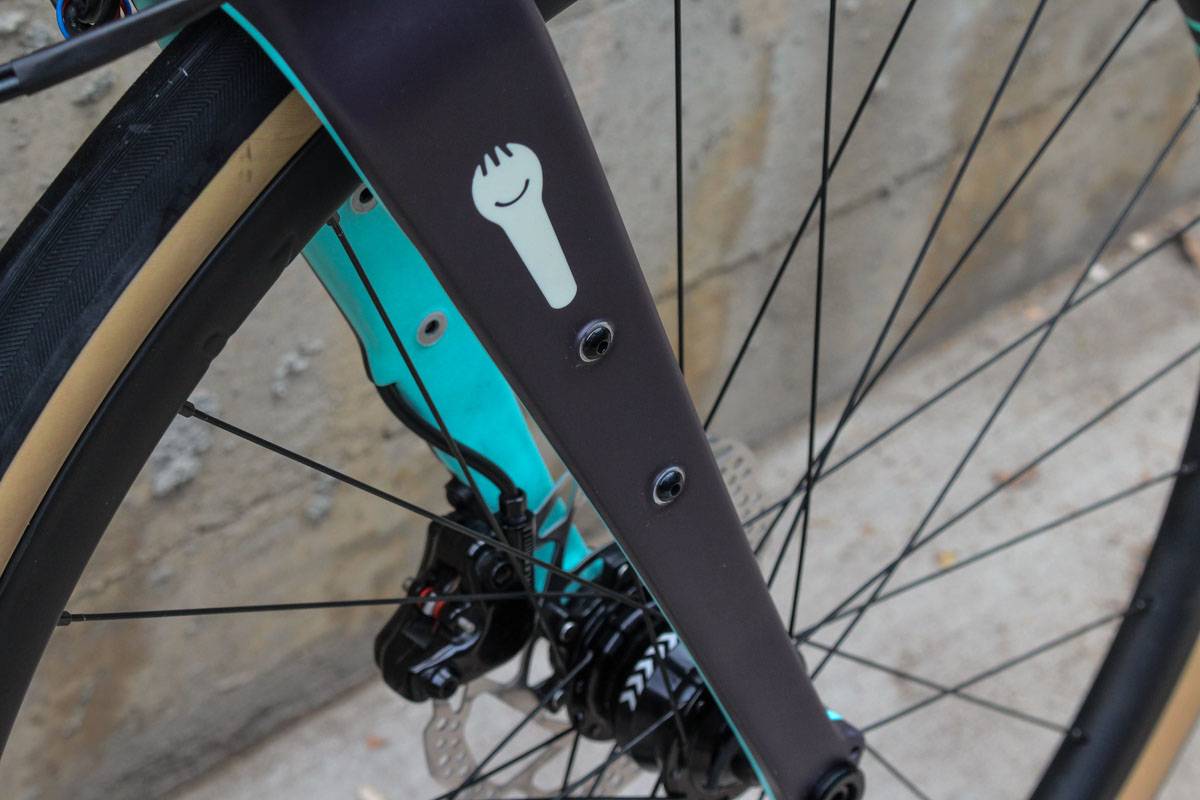

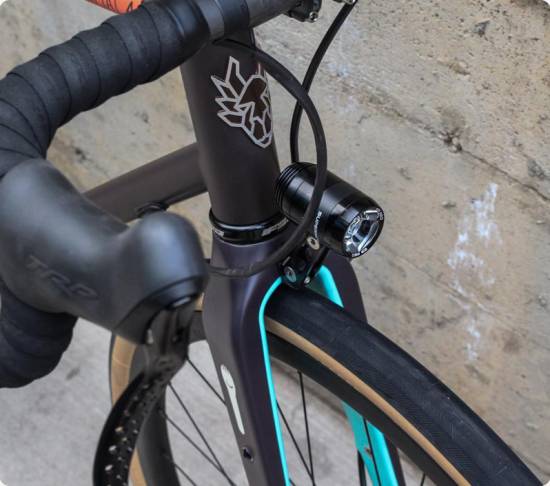

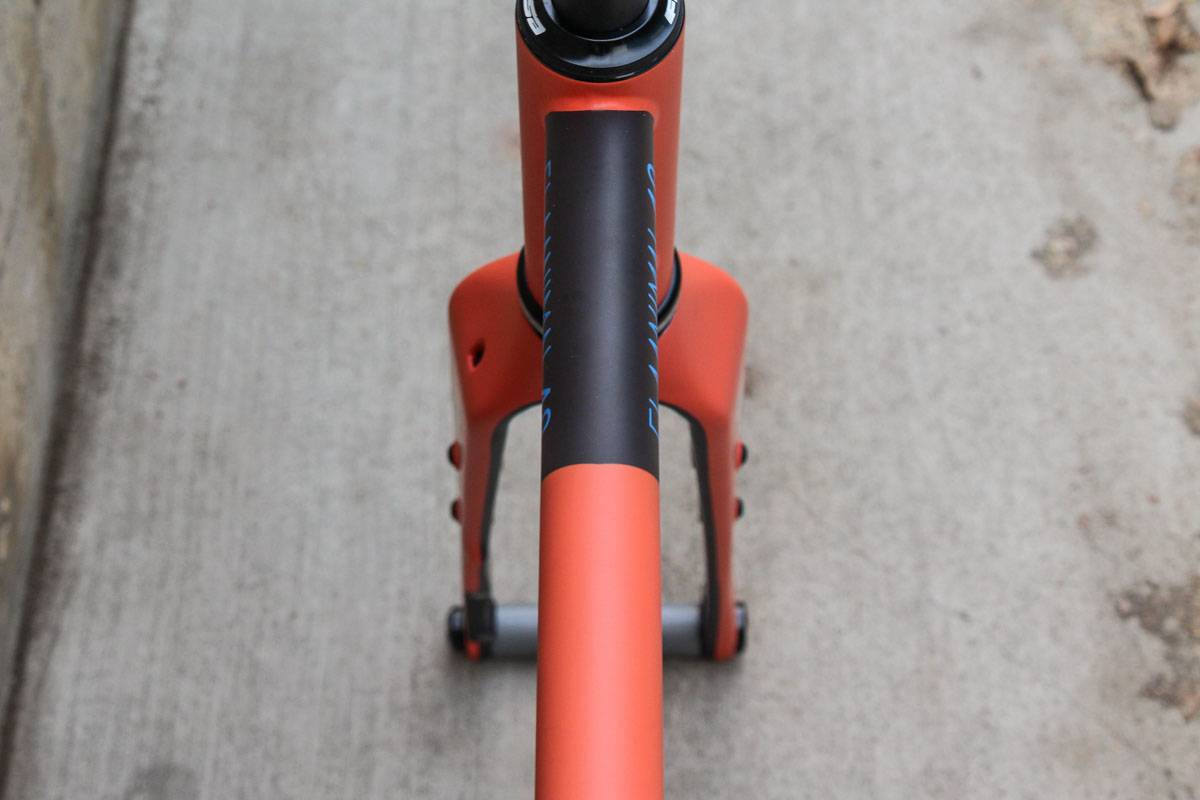

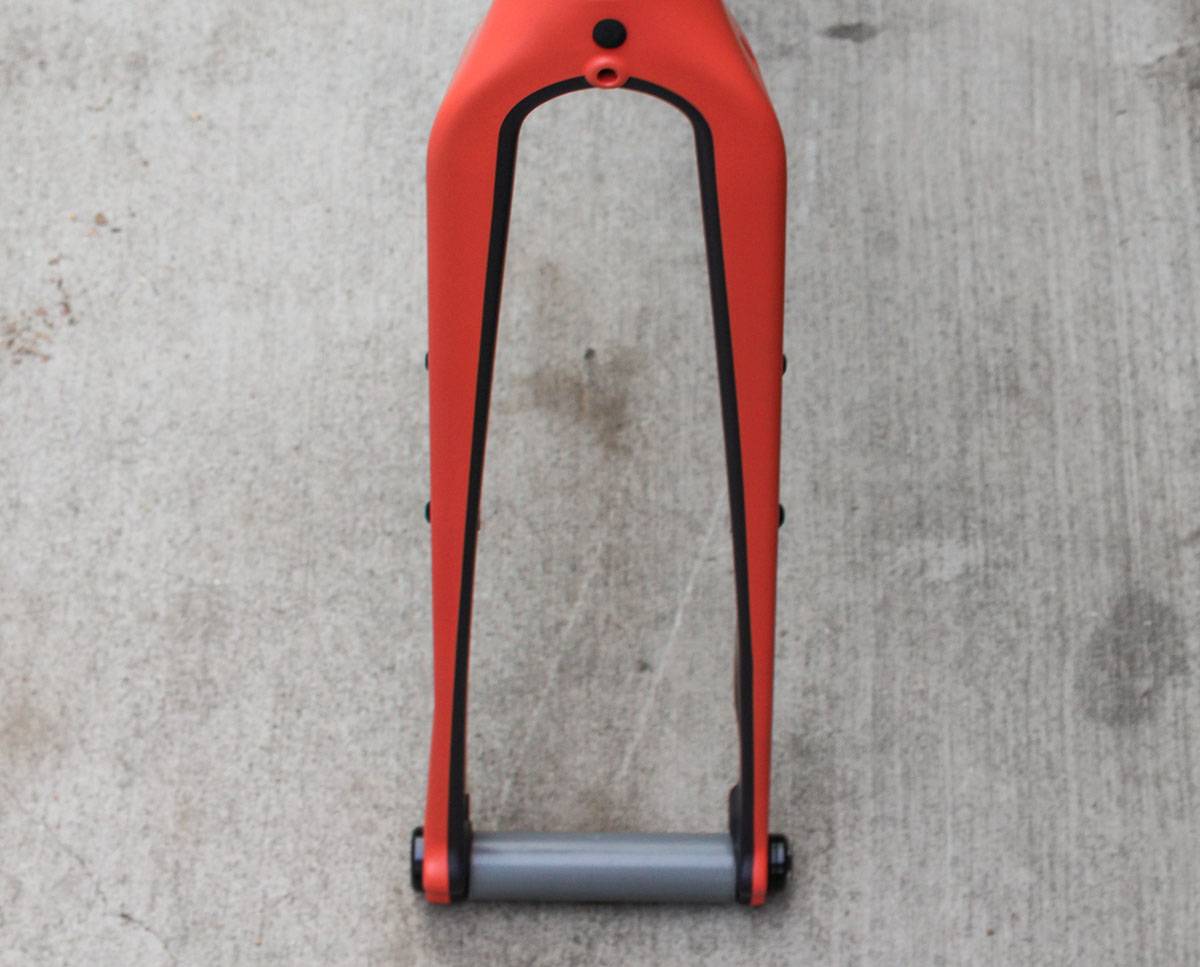

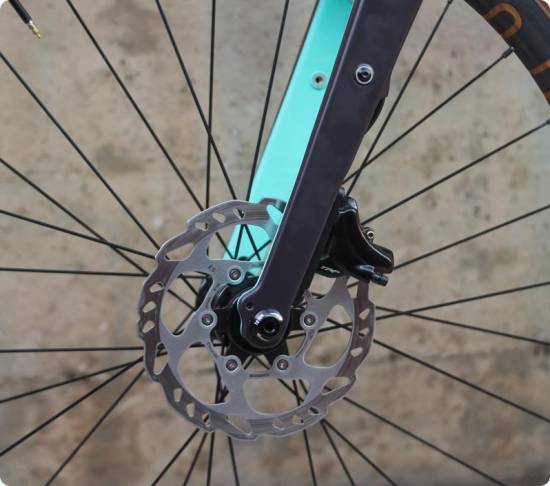

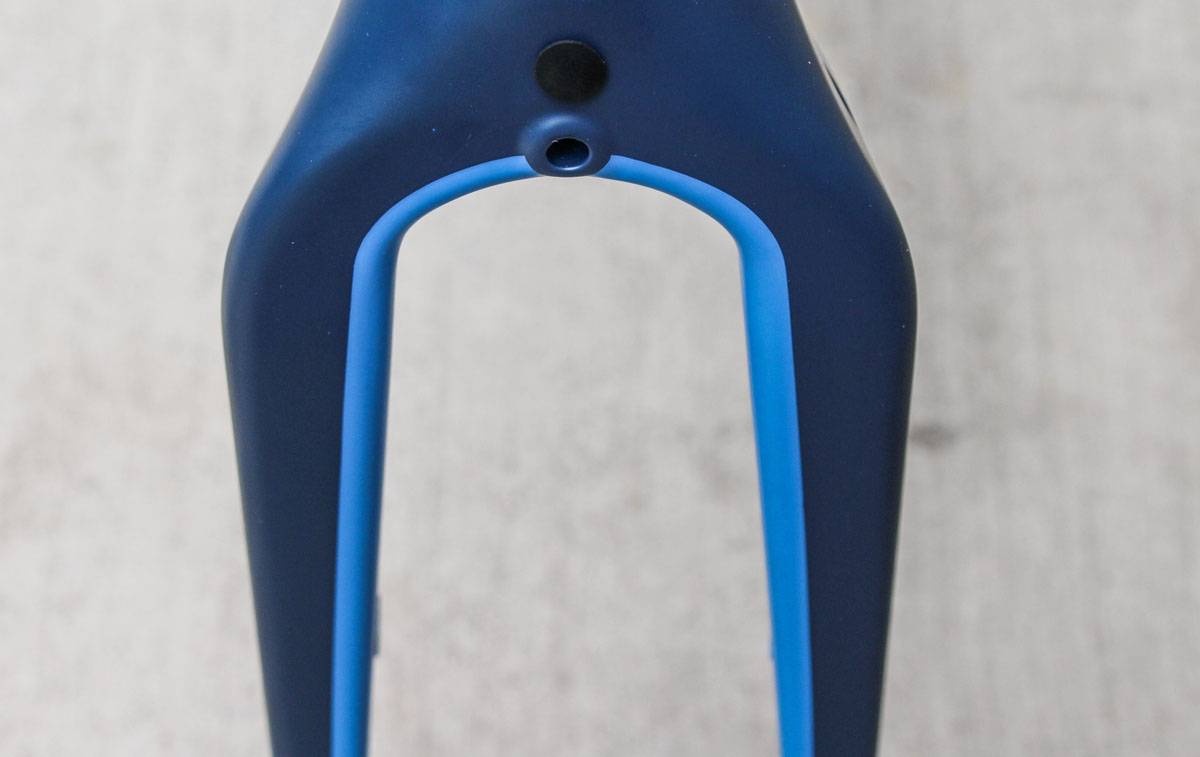

Rodeo Spork 1.2

Flaanimal 4.0 was the motivator for developing the 1.2 iteration of the Rodeo Spork, our full carbon adventure fork. Just like Flaanimal, Spork is unique in the market in its feature set.

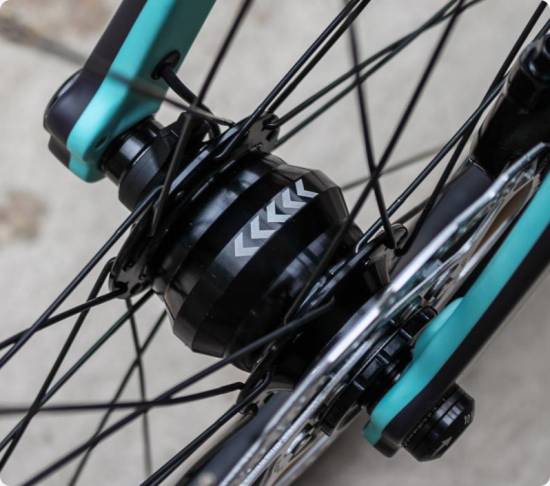

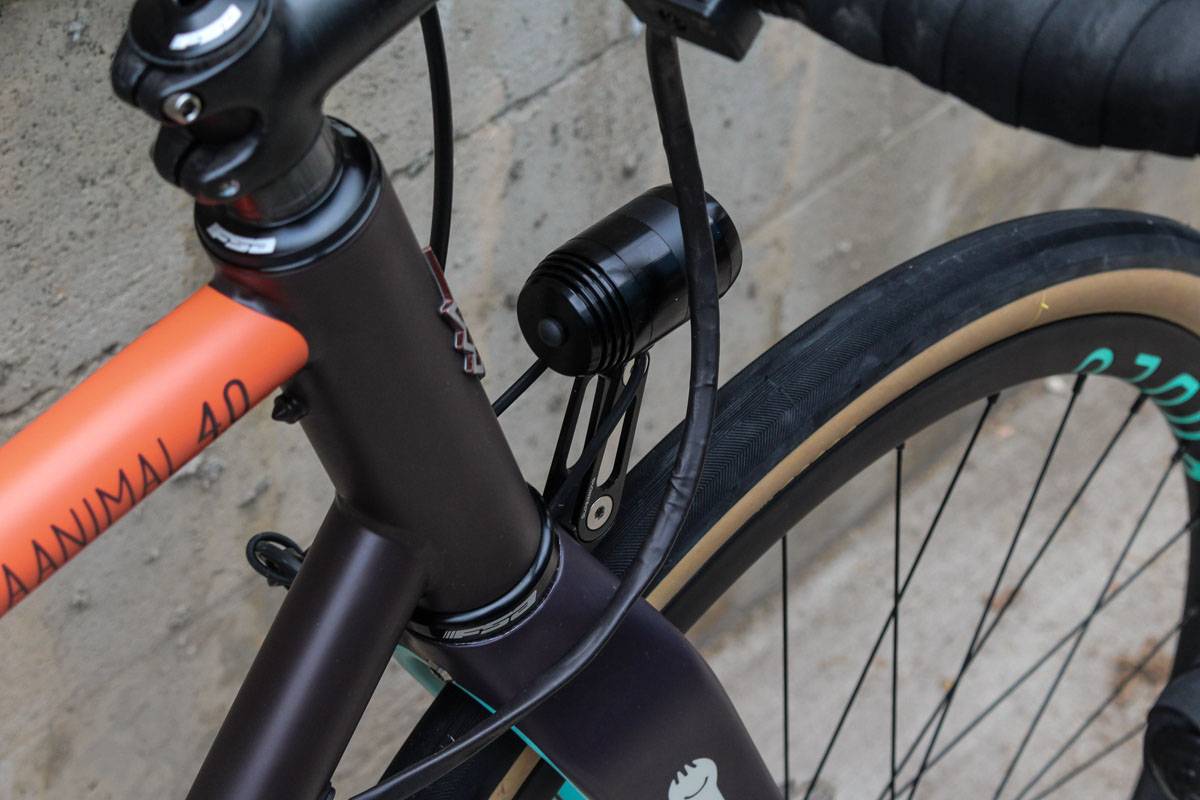

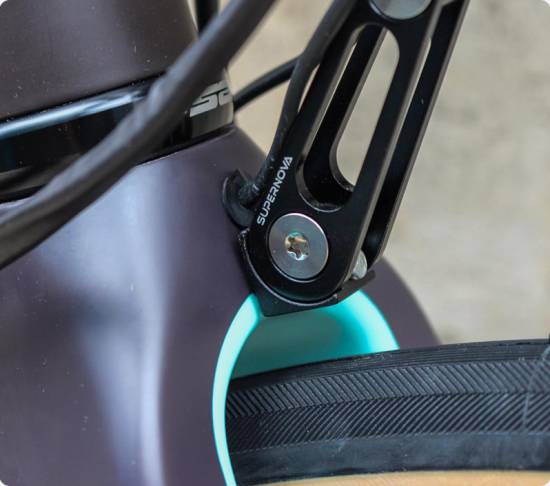

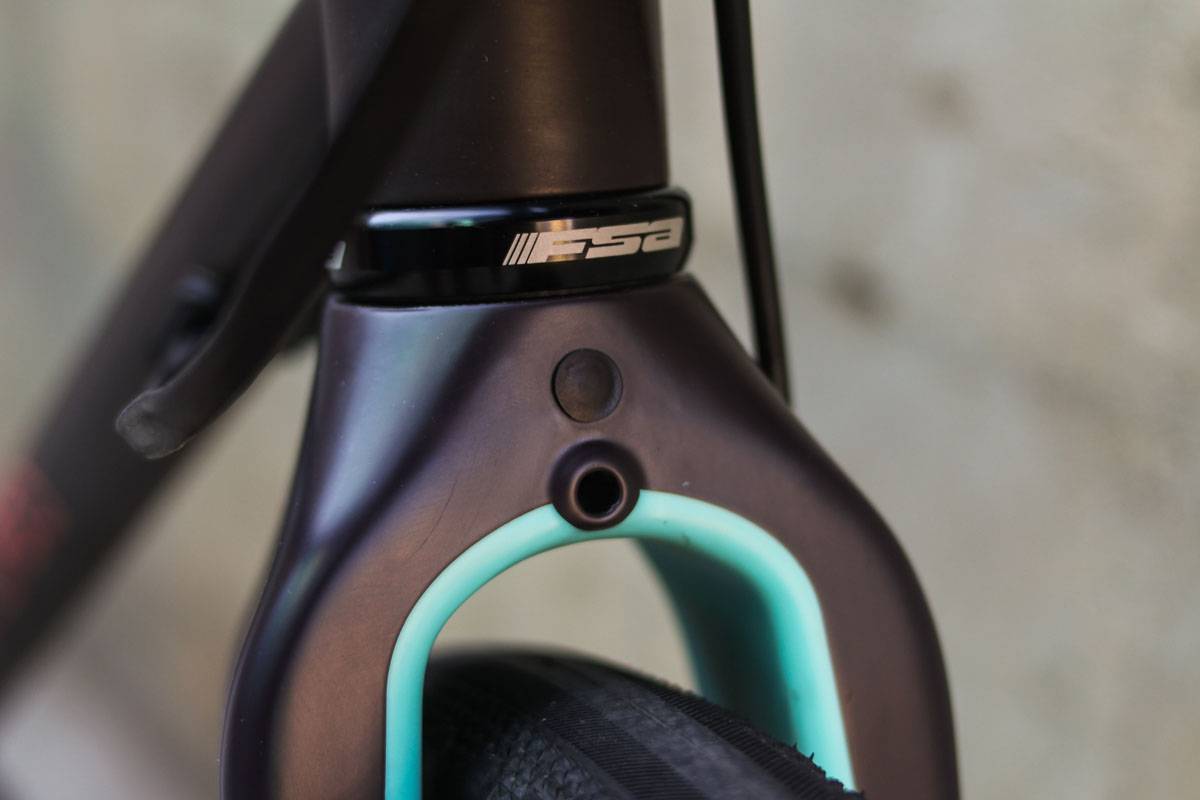

  • Fully internal dynamo hub and USB stem cap routing
  • Tire clearances for 700 x 45 and 650b x 47

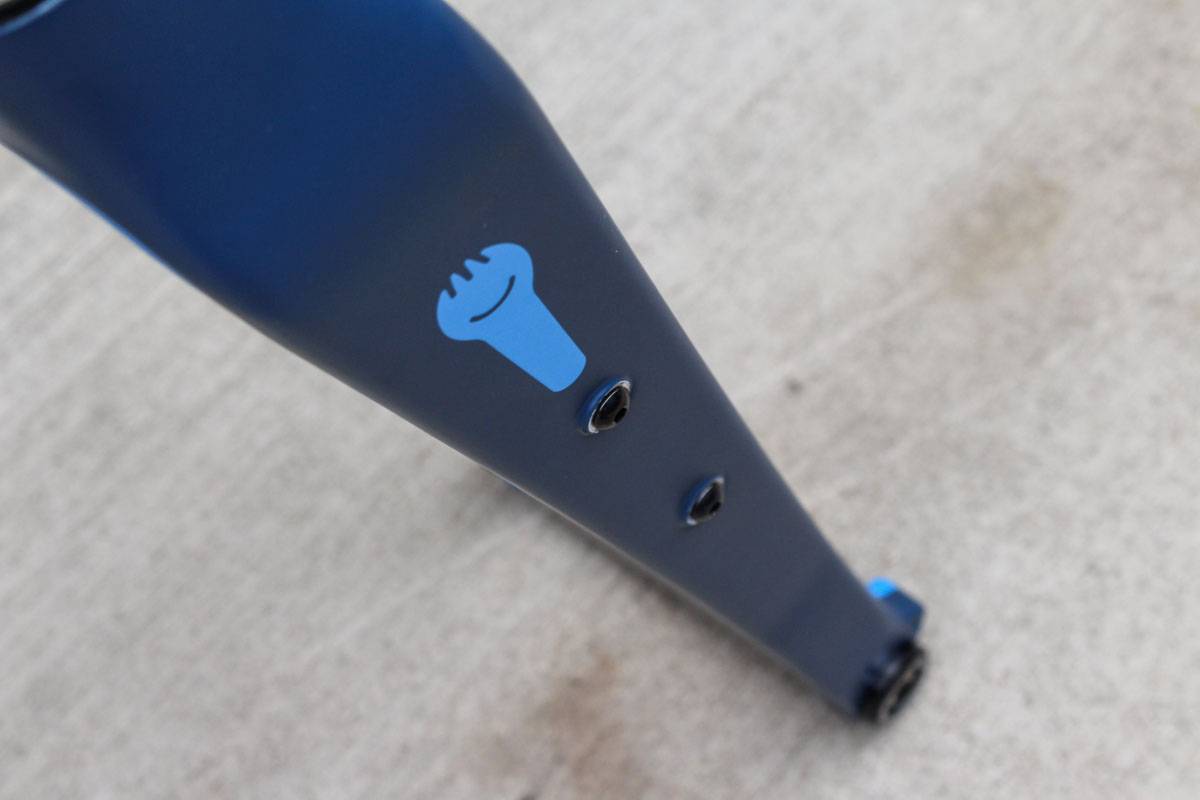

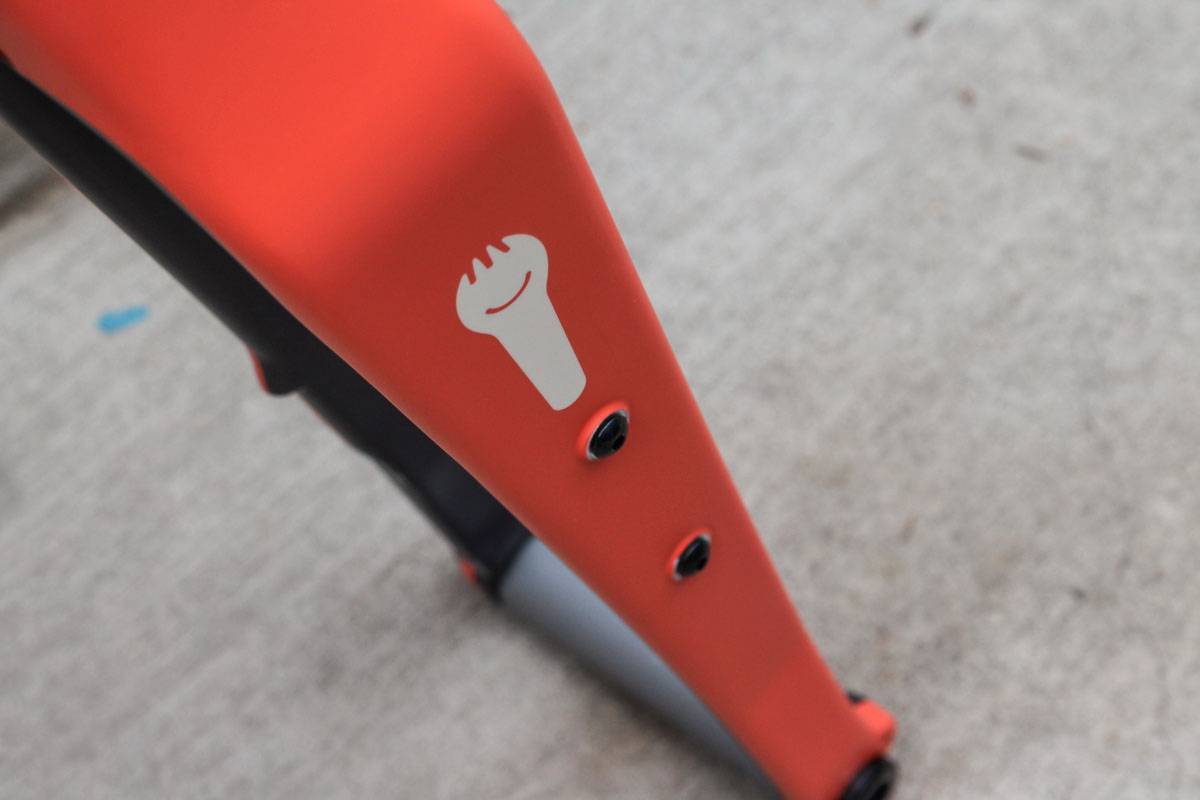

  • Dual reinforced mid leg mounting options for racks and cages
  • 15mm and 12mm through axle compatibility
  • Rack and fender eyelets on the lower fork leg and crown
  • Flat mount brake and post mount brake compatibility
  • Internal brake routing
  • Full carbon steer tube and fork construction
  • 12.5kg load carrying capacity on eyelets

Interchangable sliding dropouts

Interchangable sliding dropouts allow the Flaanimal frameset to be customized for a huge range of gearing, axle, drive types, and braking options. The frameset comes standard with sliders for the most common build configurations.

  • Standard 9 – 10 – 11 speed road and MTB derailleurs
  • 12mm through axles

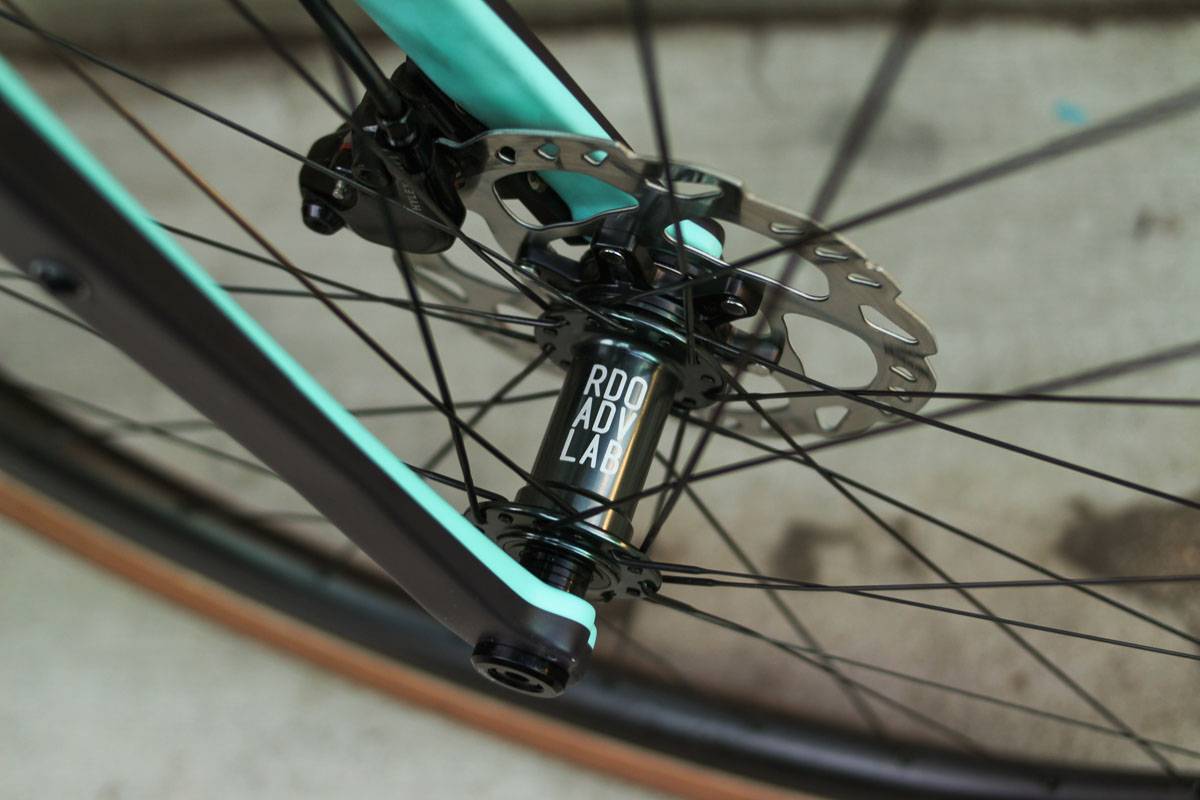

  • Flat mount disc brakes

Flaanimal is the only frameset on the market that accomodates and features sliding dropouts for flat mount brakes.

Rodeo Labs and third party vendors also offer sliders for the following build configurations:

  • Single speed chain driven drivetrains
  • Gates Carbon Drive belt drive drivetrains
  • Post mount disc brakes
  • Alfine and Rohloff internally geared hubs
  • Quick release or through axle options

Internal routing options

New to Flaanimal 4.0 is a system of internal routing options and interchangable frame plugs that allow for a clean, uncluttered appearance combined with a huge range of build types.

The downtube features four reinforced internal routing ports that are brazed onto the frame. Interchangable frame plugs allow each port to be used as an entry or exit point for brake routing, derailleur routing, di2 wiring, and even dynamo light routing.

Routing exits near the bottom bracket and runs externally along the chain stays for mechanical and hydaulic builds. Di2 wires also have the option to be run fully internally on the frame to further streamline the appearance of the complete bike and to protect Di2 wires from the elements.

EC44 Head Tube

Flaanimal features a custom offset machined EC44 spec head tube that keeps the weight low and allows for press-in tapered headset cups from

Cane Creek

Chris King

FSA

White Industries

and other manufacturers.

Additional specifications and features

Flaanimal features thoughtful design decisions in its smaller but equally important details:

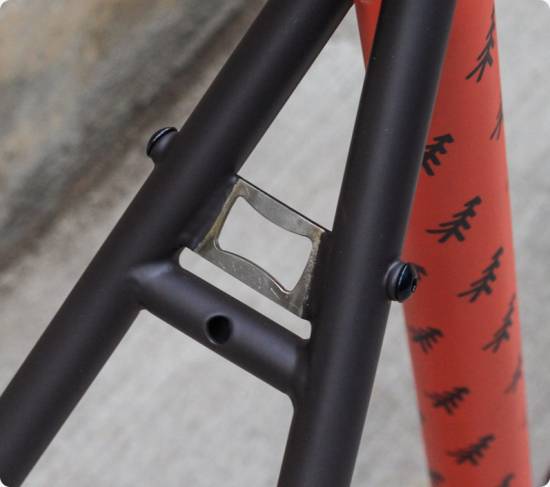

  • Integrated rack mounts and fender mounts front and rear
  • Integrated full frame peg mount
  • BSA 68mm English threaded bottom bracket
  • Triple water bottle cage mounts on frame and dual mounts on fork

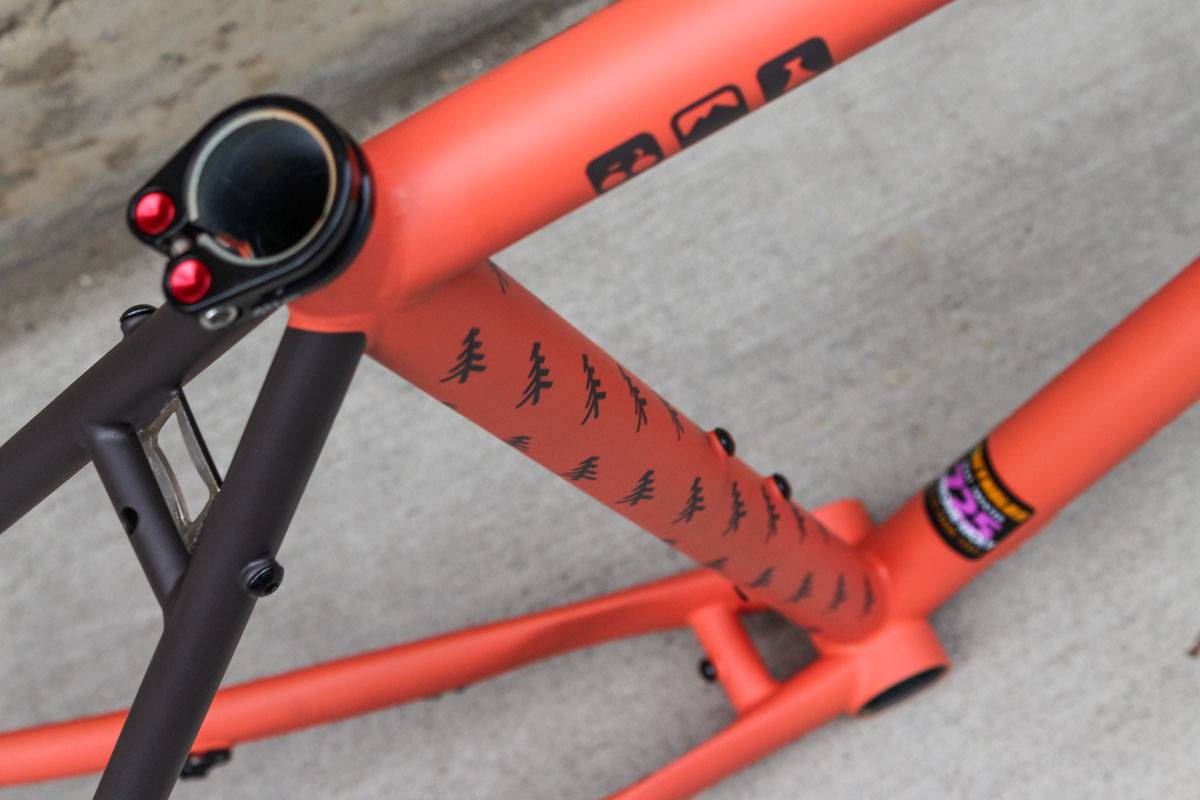

  • 27.2 seatpost diameter for compliance and ride quality
  • Full electro dipped anti rust coating on inside and outside of frame before painting

Flaanimal 4.0 geometry

Flaanimal geometry is unchanged from 3.0 to 4.0. Rodeo Labs does not design its bikes as gravel specific, we design bikes to be as widely adaptable to a broad range of riding conditions as possible from road, to gravel, to trail. Our geometry prioritizes the elimination of toe clearance across all sizes. Our geometry prioritizes high speed stability. Our geometry prioritizes bottom bracket clearance in rough, rocky terrain.

Size 48 50 52 54 56 58 61
virtual Seat Tube (C-T) 480 500 520 540 560 580 610
Seat Tube (C-T) 448 468 488 508 528 548 578
Top Tube (effective) 520 527.65 535 545 560 580 605
Chain Stay (actual) 425 425 425 425 425 425 425
Seat Tube Angle 75 74.5 74 74 73.5 73 73
Bottom Bracket Drop 65 65 65 65 65 65 65
Head Tube Length 82 95 107 132 147 162 197
Head Tube Angle 69.5 69.5 70 70 71 72 72
Reach 384.22 383.74 382.43 385.69 390.08 399.1 413.92
Stack 506.74 518.92 532.08 555.57 573.63 591.71 624.99
Fork Length 396 396 396 396 396 396 396
Fork Rake 45 45 45 45 45 45 45
FC 600.95 605 603.83 615.58 616.25 620.96 646.47
Wheelbase 1017.42 1021.5 1020.32 1032.13 1032.81 1037.55 1063.19

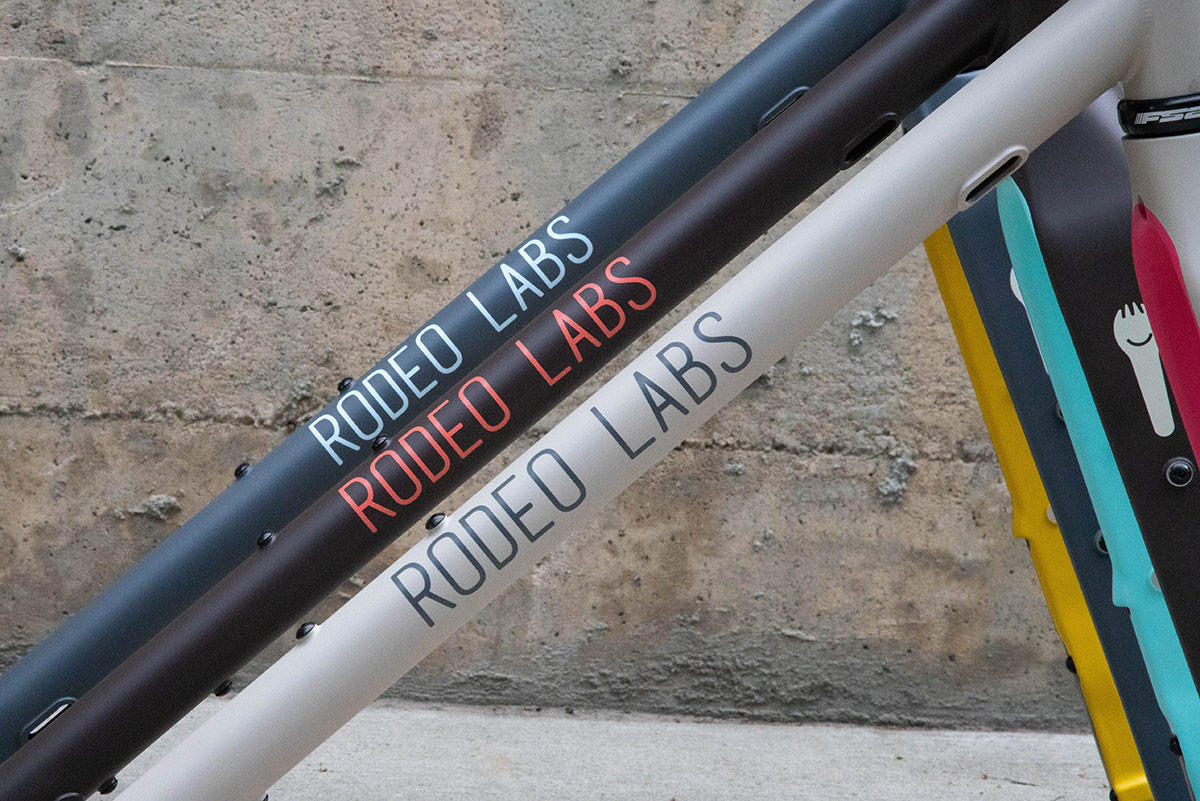

Flaanimal 4.0 COLORS

We are offering three new color options for Flaanimal 4.0. We loved the paint colors that we offered on 3.0 but we feel like that as a brand Rodeo needed to keep exploring with color no matter how good the 3.0 colors looked.

For 4.0 we now offer the following colors:

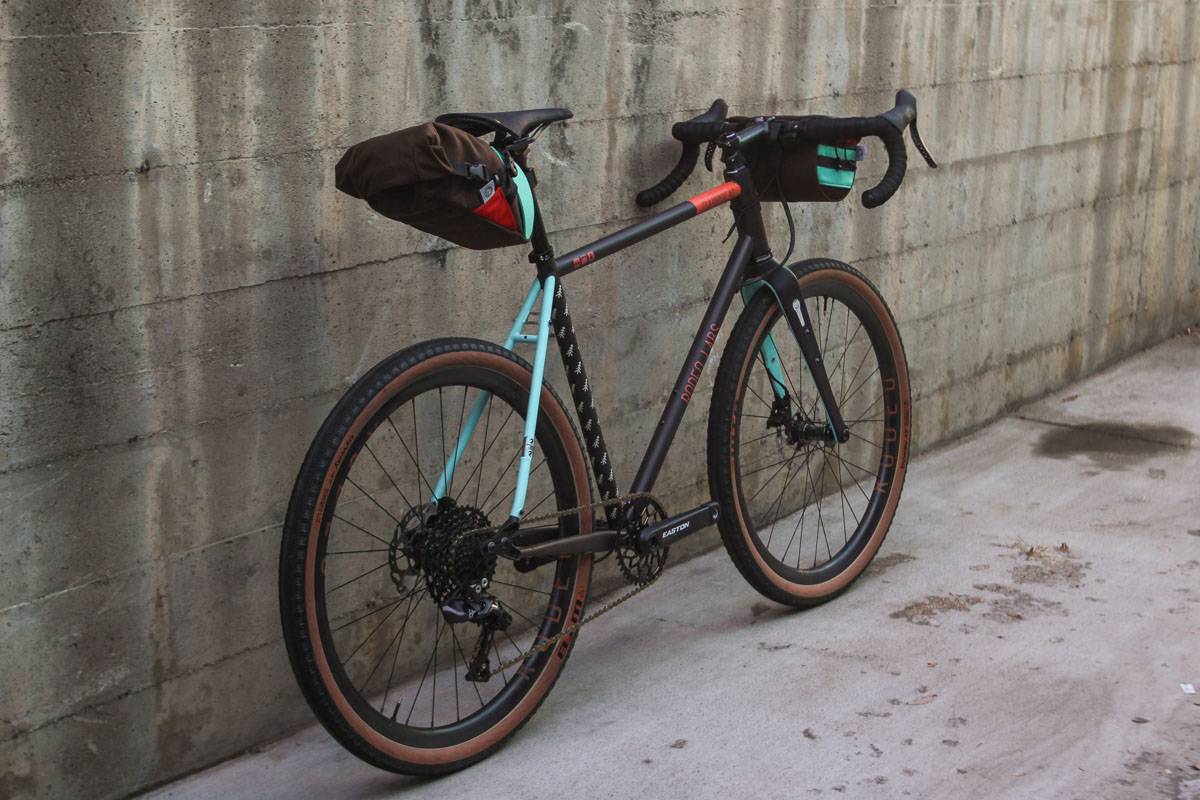

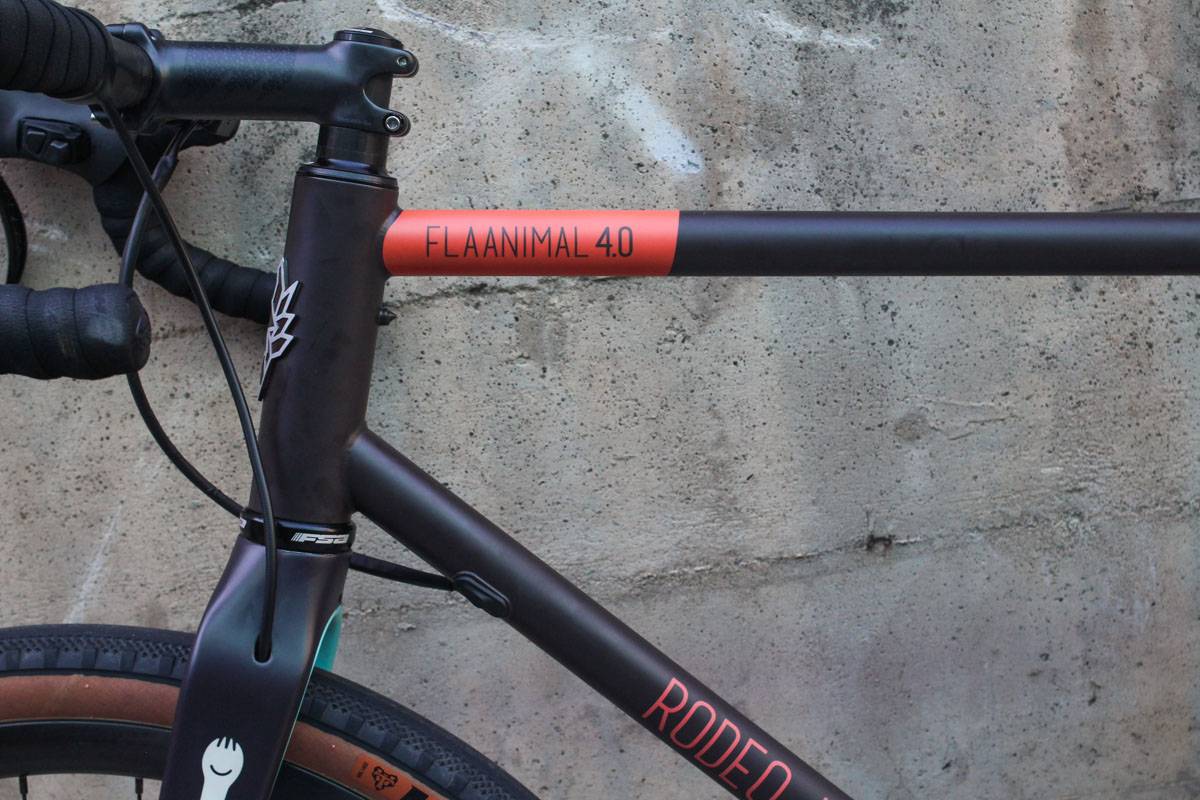

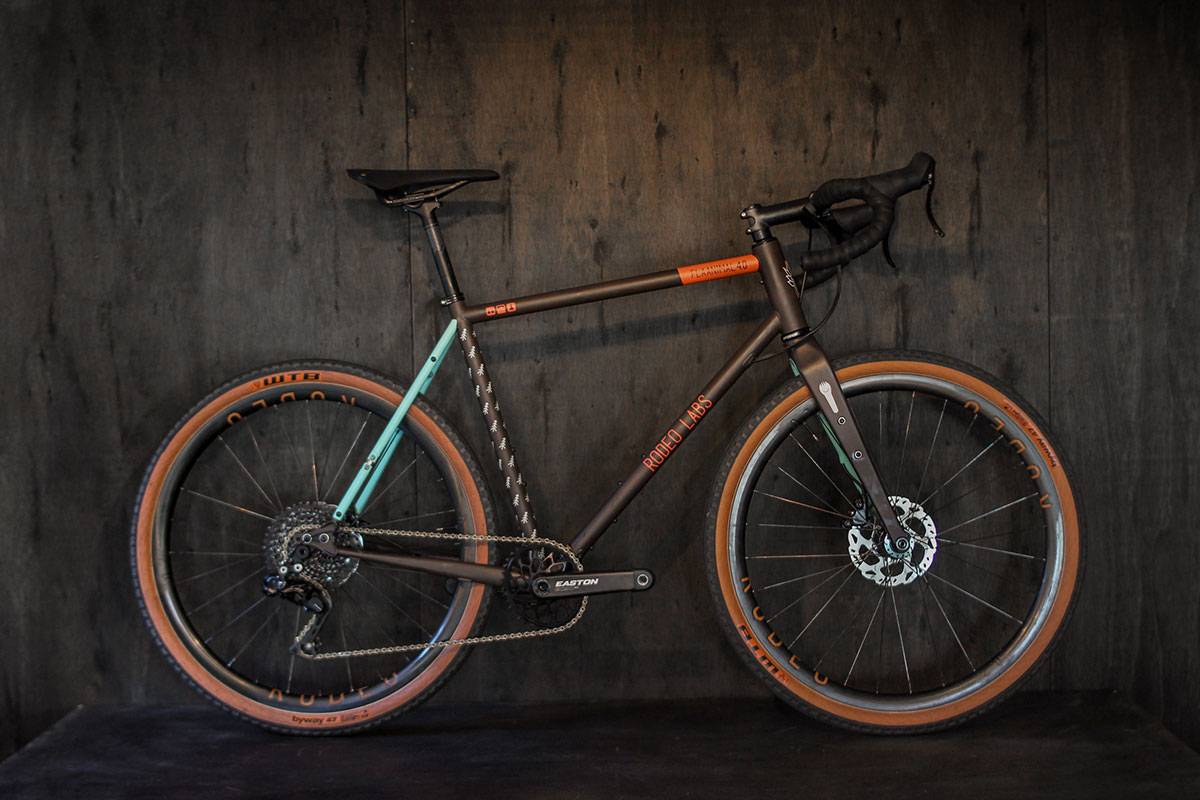

Pine Cone

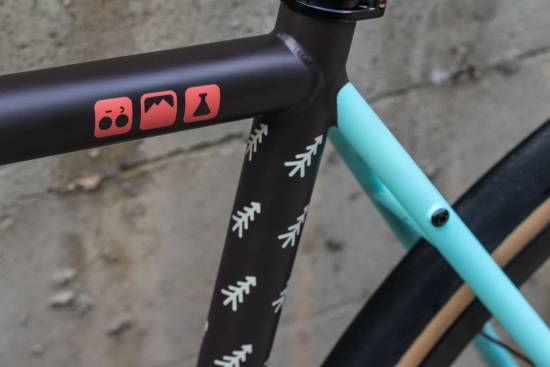

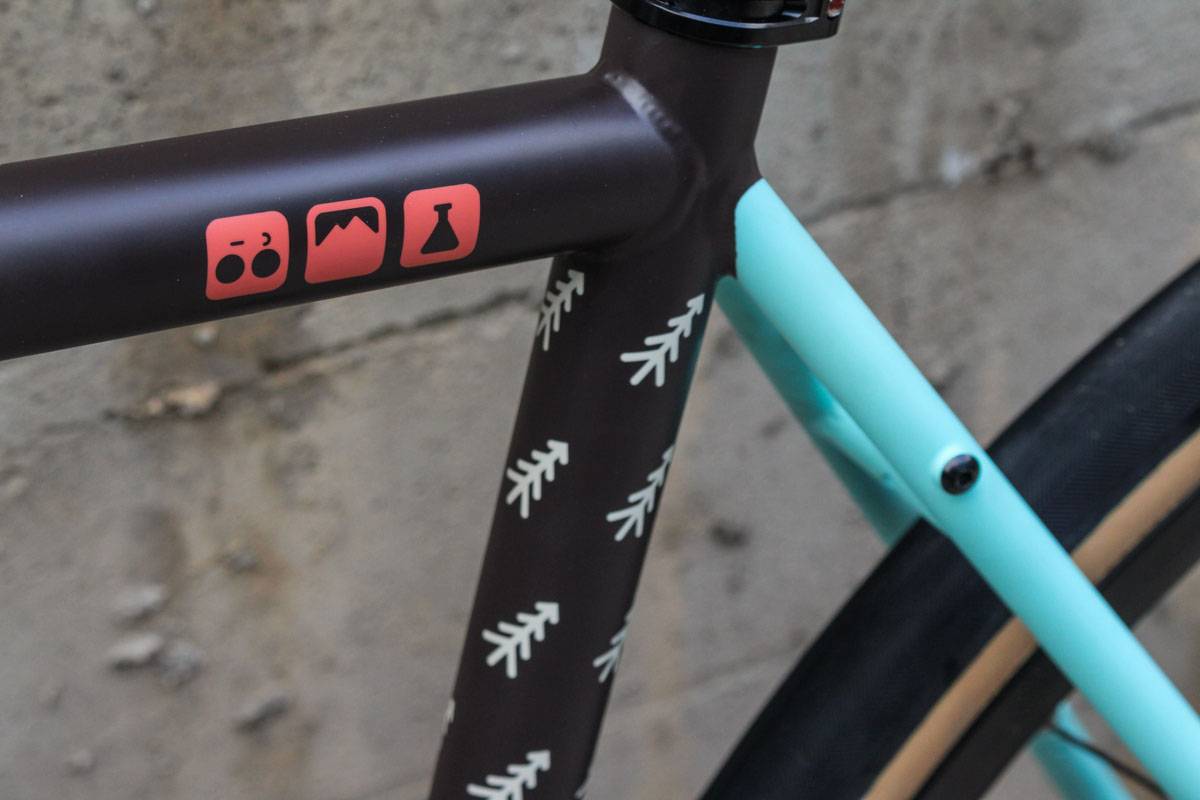

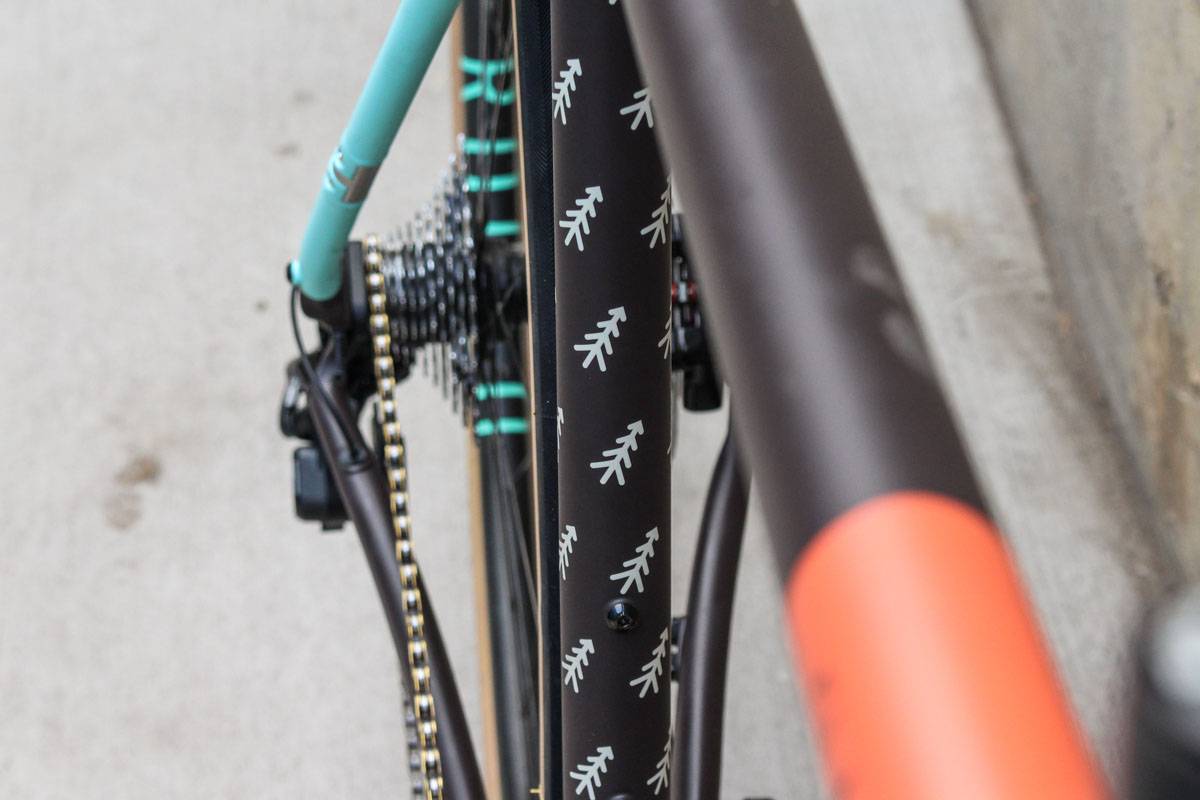

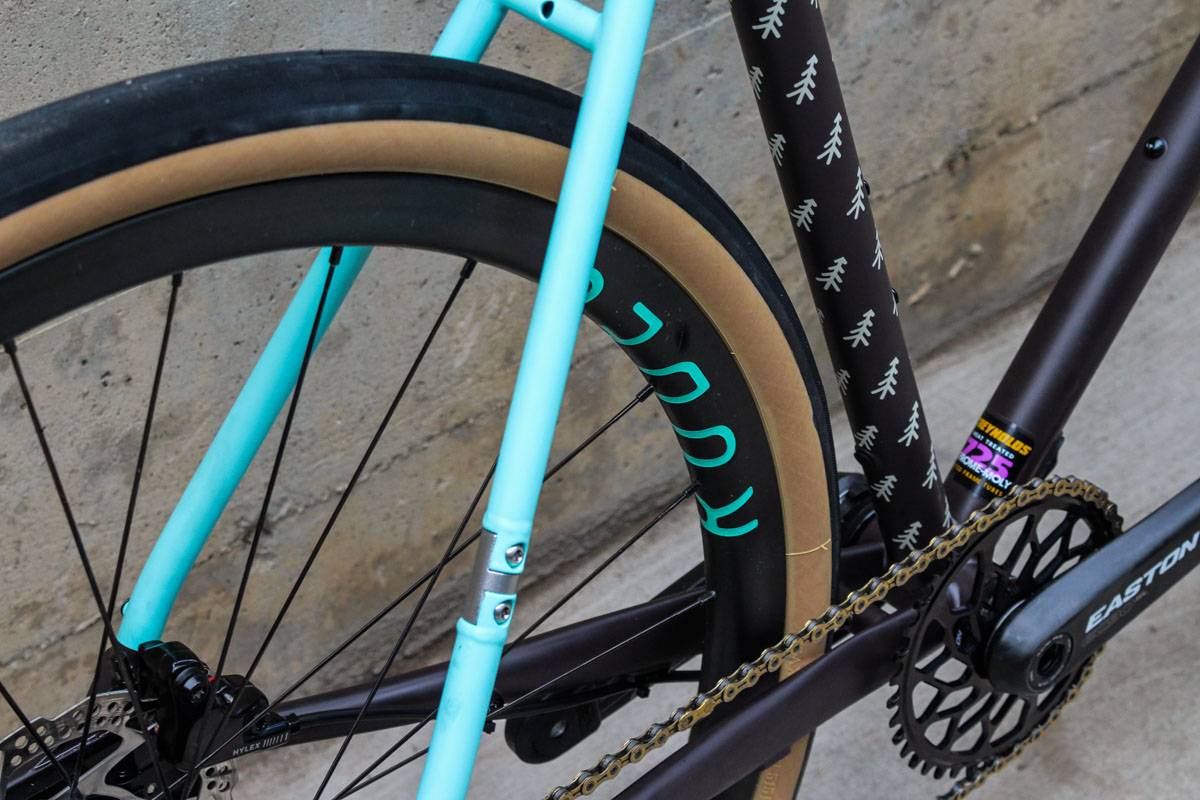

Inspired by the palettes of 1970s camping gear, Pine Cone combines a deep chocolate / merlot main frame color with celeste rear seat stays and accents inside of the front fork. Orange type and cream accents round out the look for a truly distinctive frameset that will never, ever be mistaken for anything but a Rodeo Labs Flaanimal.

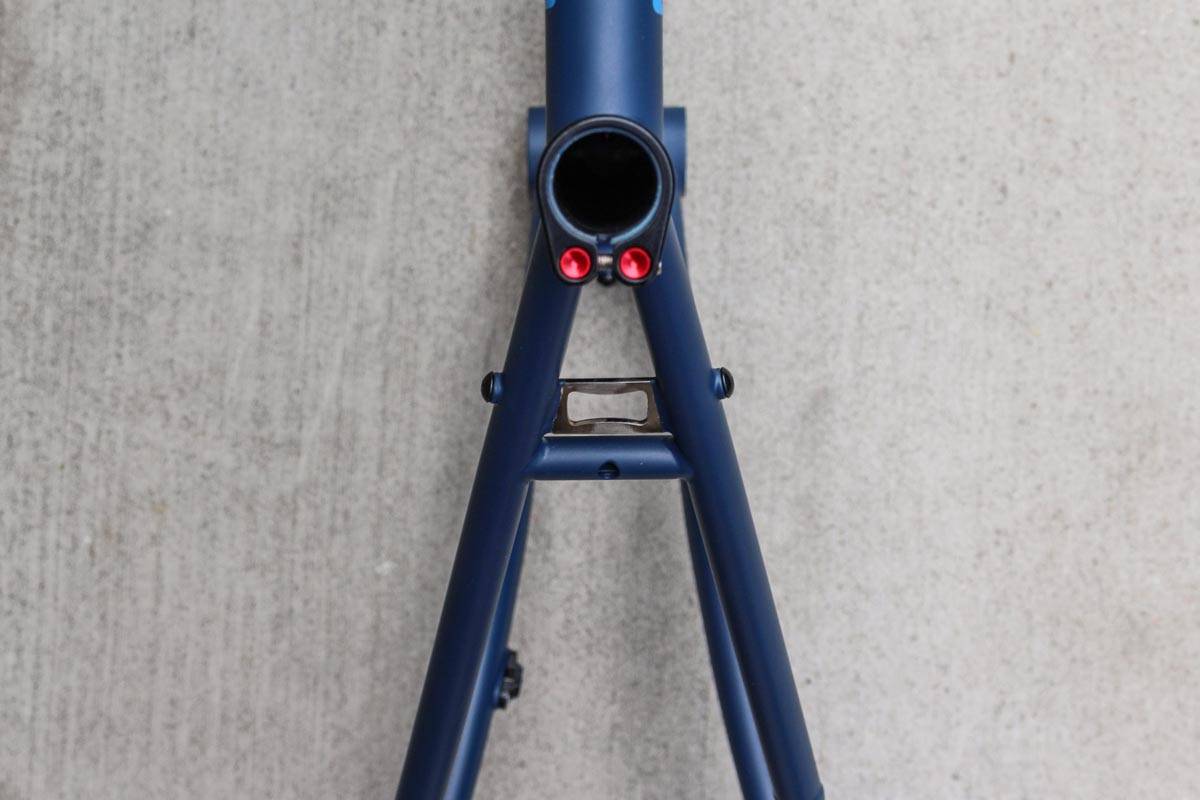

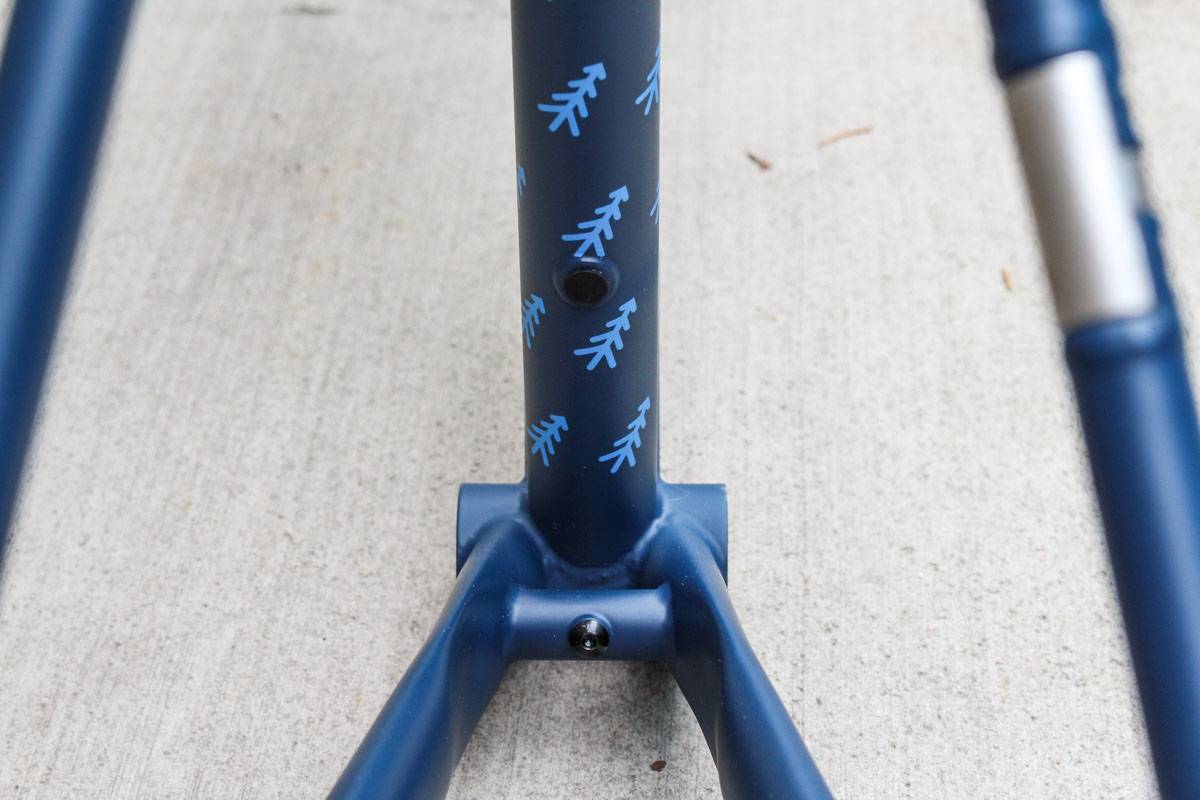

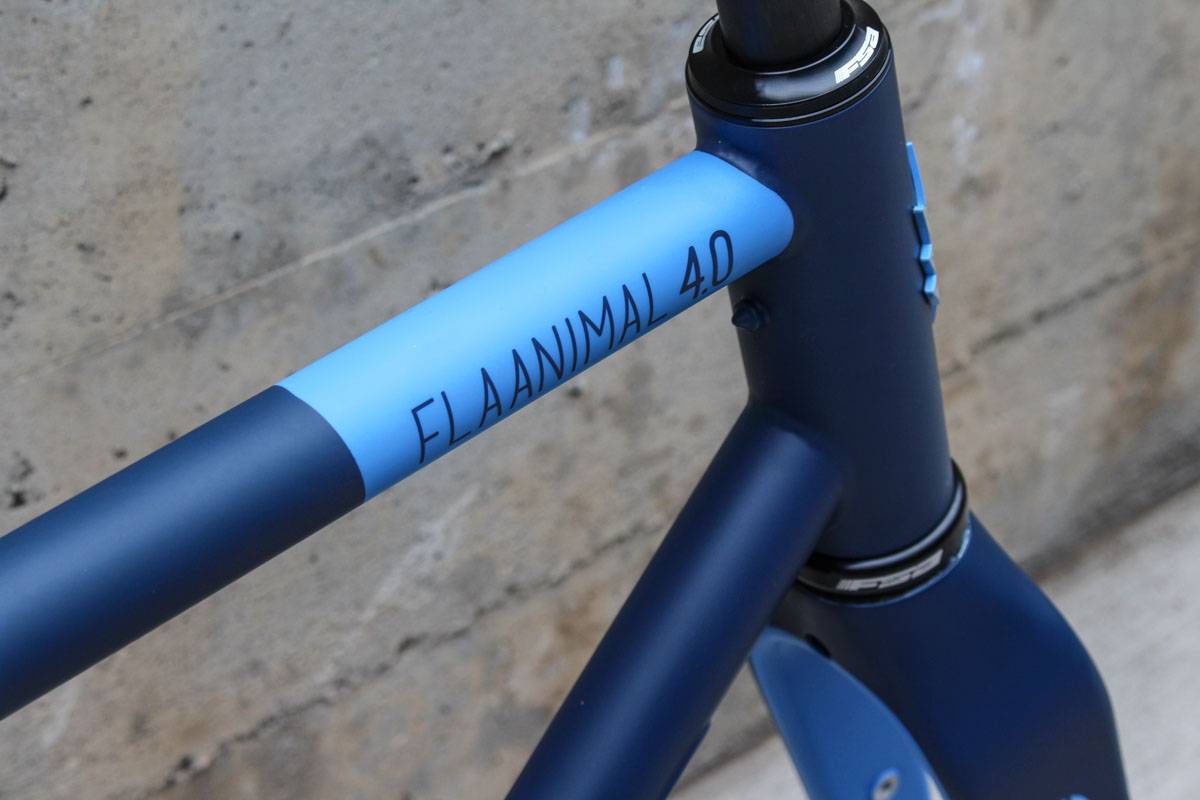

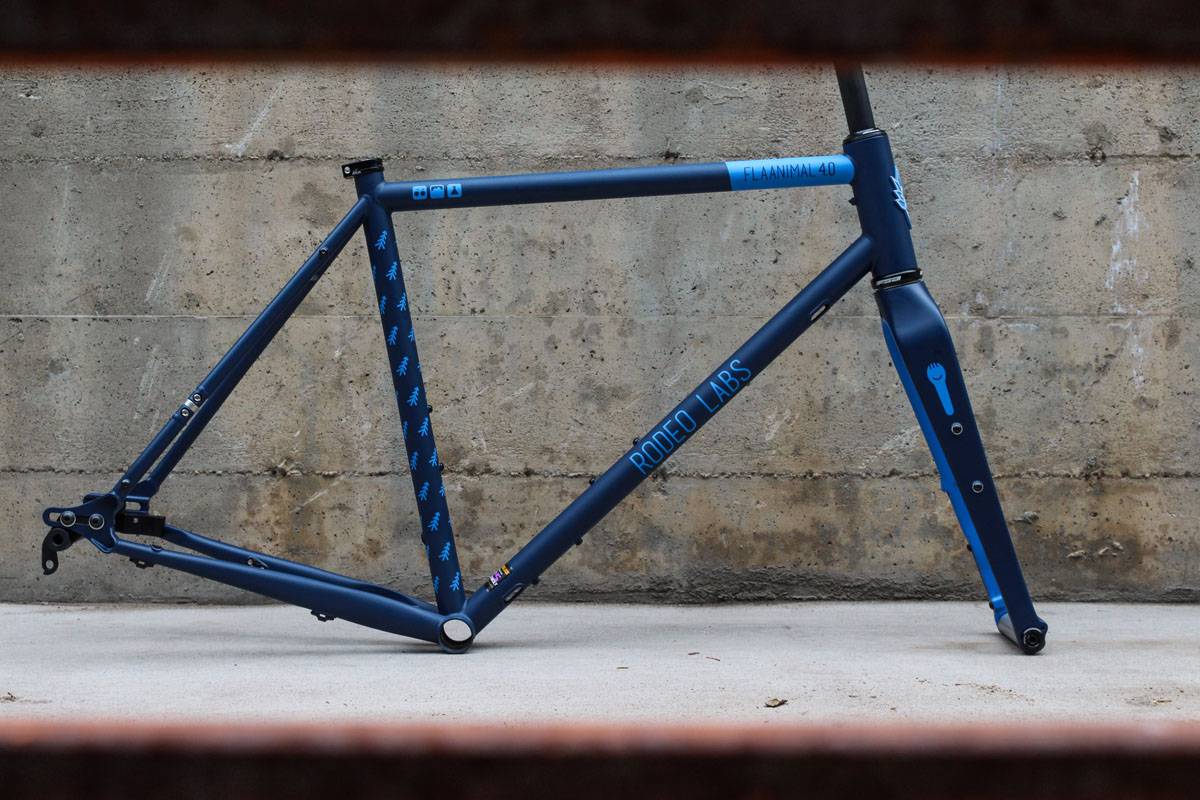

Bleaux Deaux

Blue is the single most popular color on planet earth and the 3.0 Bleaux was the most popular Flaanimal color. It’s pretty safe to say we wanted to offer blue again, but we wanted to do it differently this time. For the main frame color we went with a deep navy color that keeps things classy and classic. For the accent color we went with a brighter complementary shade of blue. The combined effect is the most reserved 4.0 color offering, but one that is still distinctive in a crowded market of otherwise similar looking bikes.

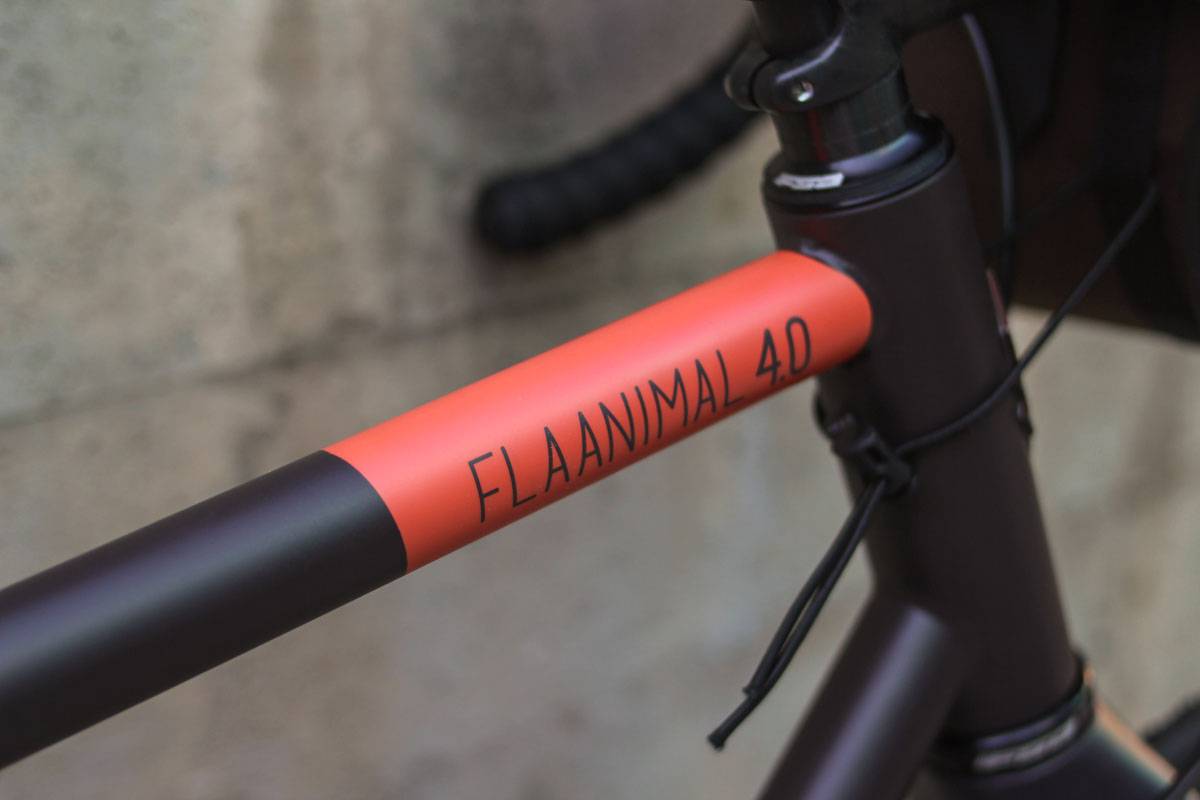

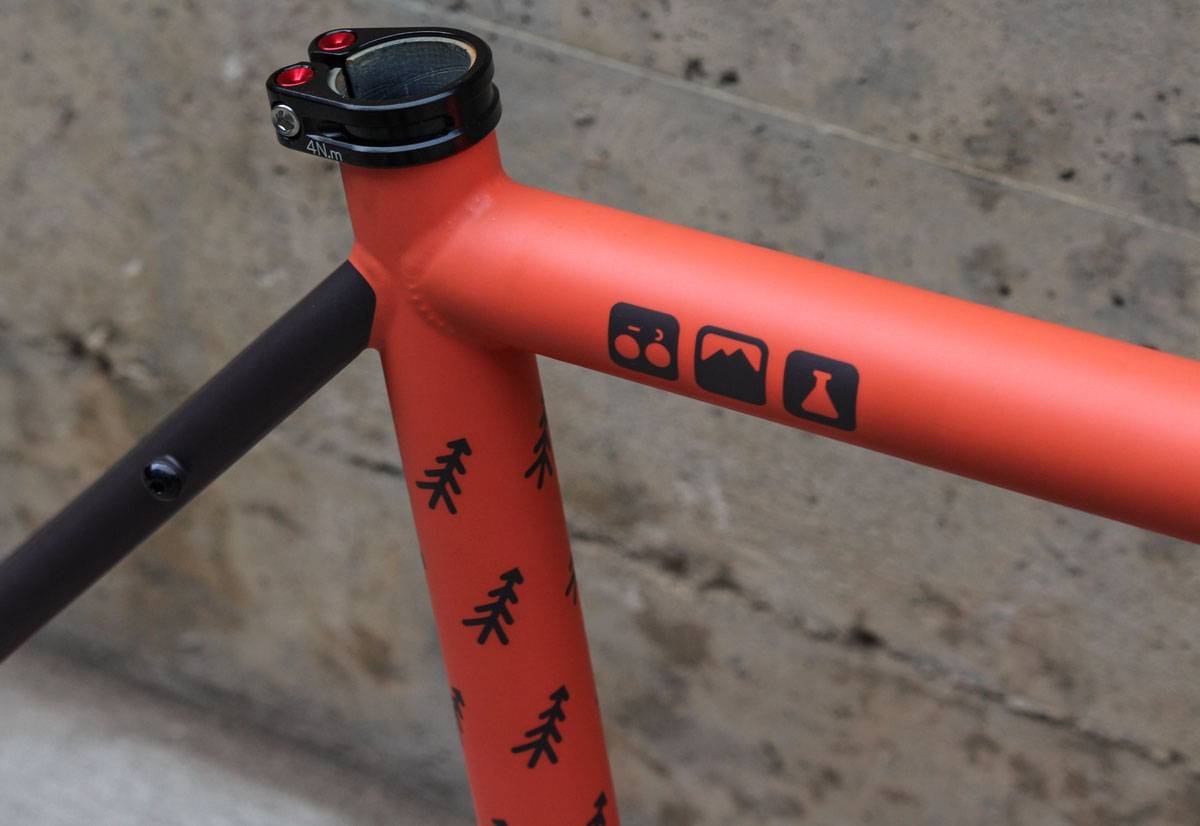

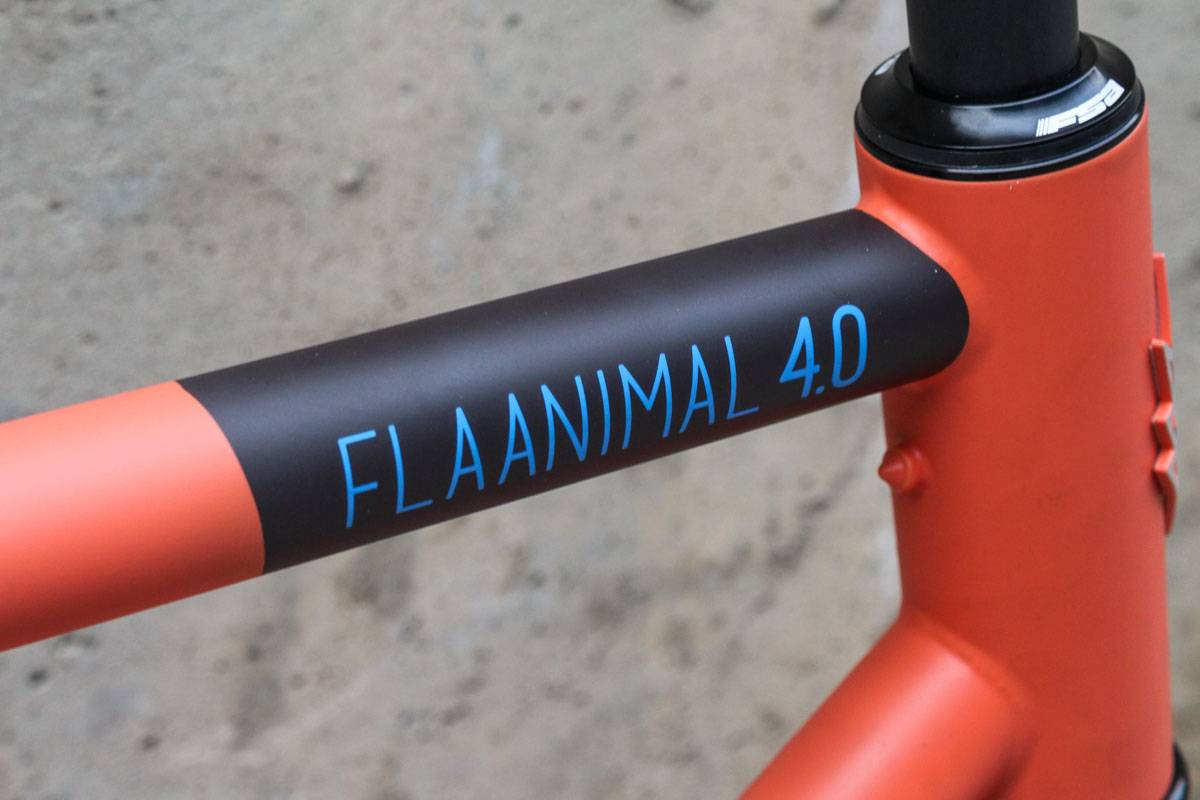

Chocolate creamsicle

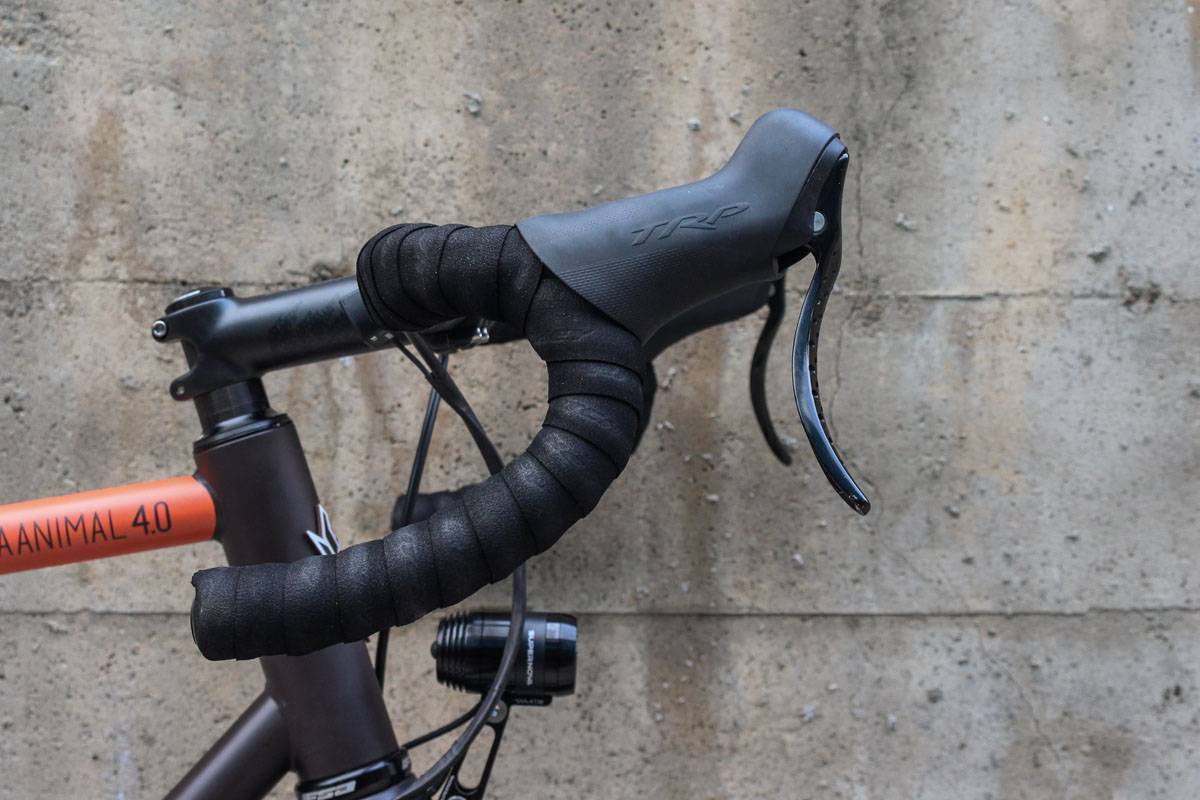

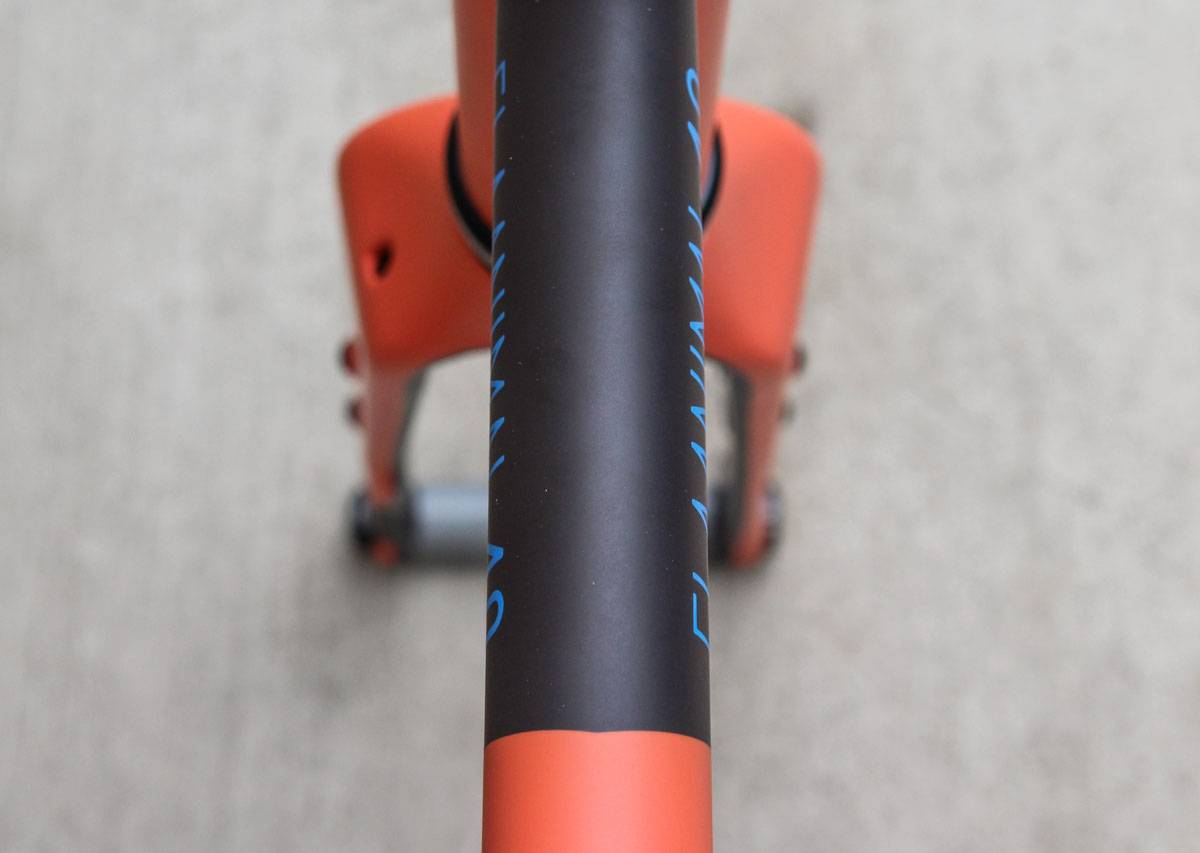

We love the pop of an orange frame, but there is no way that we were going to make a frame that was all the way orange. It needed some contrast, so we combined a dark chocolate brown with the orange to make a color option that was both vibrant but also once again unique. On this frame the Flaanimal 4.0 lettering on the top tube is also a vibrant electric blue.



Fair warning

This production run of Flaanimals is not high volume. The most frames have been made in the middle sizes such as 54 and 56cm. The least frames were made in the outlier sizes such as 52 and 61cm. Bleaux Deaux will be the most plentiful color with Pine Cone and Chocolate Creamsicle being fewer. If you are considering a Flaanimal 4.0 and are seeking one of the sizes and colors that will be more rare we do encourage you to act quickly on those framesets as there are only one or two of certain combinations being manufactured in this production run. We’ll follow this production run with further production runs in 2018, but probably not for delivery before April / May

.
